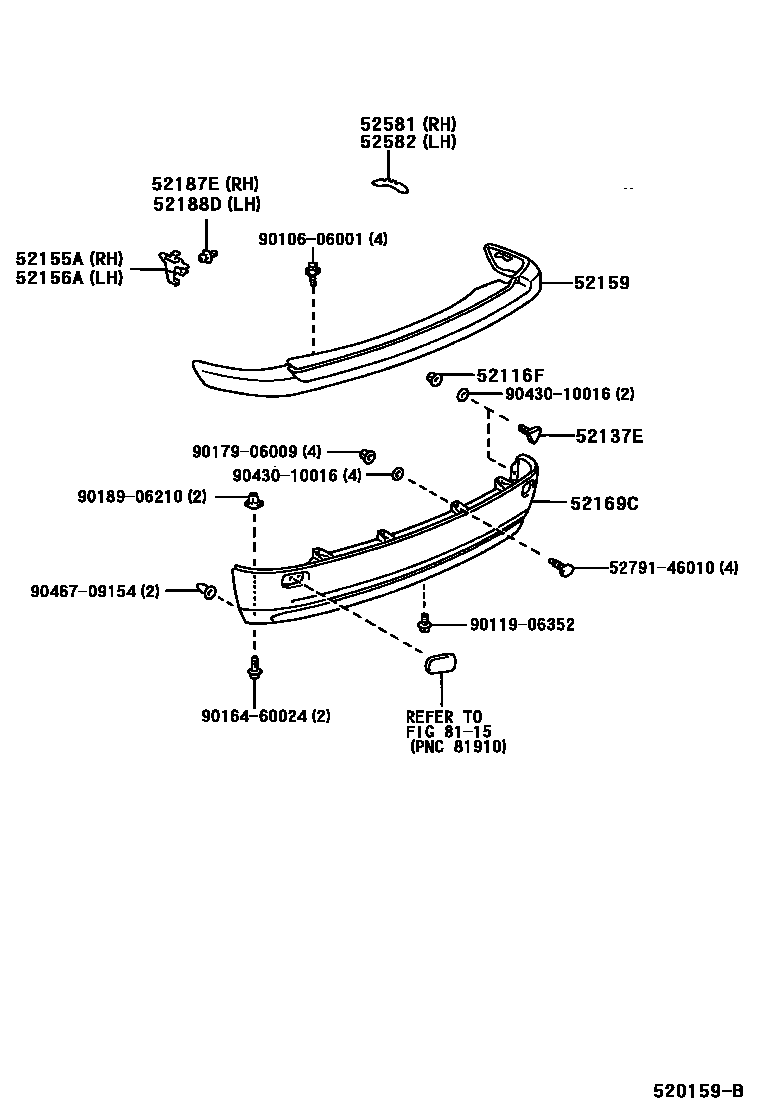

REAR BUMPER & BUMPER STAY

52116FRETAINER, REAR BUMPER

main52116-12310i199705

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-12100i199705

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-46010i199705-199907

main52155-46020i199907

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-46010i199705-199907

main52155-46020i199907

52159COVER, REAR BUMPER

main52159-46010i199705-199907

sub52159-46906

main52159-46011i199804-199811

sub52159-46020

main52159-46011i199712-199907

sub52159-46020

main52159-46012-B0i199804-199811

sub52159-46010

main52159-46020-B0i199810-199812

sub52159-46906

main52159-46020-B0i199808-199812

GRAY M,199 ,2DW ,205 ,3E5

sub52159-46906

main52159-46020-B0i199812-199907

GRAY M,199 ,2DW ,205 ,3E5 ,742

sub52159-46906

main52159-46020-B1i199808-199907

SILVER M,049

sub52159-46906

main52159-46030i199907

sub52159-46905

main52159-46040-B0i199907-200204

GRAY M,1C0 ,202 ,3E5 ,6R4 ,8M6

sub52159-46905

sub52159-46030

main52159-46040-B0i200204

GRAY M,1C0 ,202 ,8M6

sub52159-46905

sub52159-46030

main52159-46040-B1i199907

SILVER M,040 ,049

sub52159-46905

sub52159-46030

main52159-46040-B1i200112-200204

sub52159-46905

sub52159-46030

main52159-46040-B2i200204

SILVER ME.,583 ,761

sub52159-46905

sub52159-46030

main52159-46040-B2i200204

SILVER ME.,2HX ,583 ,761

sub52159-46905

sub52159-46030

main52159-46040-B2i200105-200204

SILVER ME.,2HX

sub52159-46905

sub52159-46030

52169CCOVER, REAR BUMPER, LOWER

main52169-46010-A0i199709-199907

sub52169-46901

sub52169-46907

main52169-46010-A1i199712-199907

sub52169-46901

sub52169-46907

main52169-46010-A1i199808-199907

WHITE PEARL MC.,049

sub52169-46901

sub52169-46907

main52169-46010-B0i199705-199808

SILVER ME,199 ,2DW ,2DX

sub52169-46901

sub52169-46907

main52169-46010-B0i199808-199907

SILVER ME,199 ,2DW

sub52169-46901

sub52169-46907

main52169-46010-C0i199709-199907

sub52169-46901

sub52169-46907

main52169-46010-C0i199808-199907

BLACK ME.,205

sub52169-46901

sub52169-46907

main52169-46010-D0i199705-199808

RED M.M.,3L9

sub52169-46901

sub52169-46907

main52169-46010-D1i199808-199907

SUPER RED 2.,3E5

sub52169-46901

sub52169-46907

main52169-46010-D1i199709-199907

sub52169-46901

sub52169-46907

main52169-46010-E0i199705-199808

BEIGE M.M.,4N3

sub52169-46901

sub52169-46907

main52169-46010-F1i199804-199811

sub52169-46901

sub52169-46907

main52169-46010-H0i199812-199907

DK.TURQUOISE.MC,742

sub52169-46901

sub52169-46907

main52169-46010-J0i199804-199811

sub52169-46901

sub52169-46907

main52169-46010-J1i199810-199812

sub52169-46901

sub52169-46907

main52169-46010-K0i199705-199808

LT.PURPLE ME.OP.,931

sub52169-46901

sub52169-46907

main52169-46010-K2i199705-199808

DK.PURPLE MC.GR.,940

sub52169-46901

sub52169-46907

main52169-46020-A0i199808-199907

sub52169-46902

main52169-46020-A0i199901-199907

sub52169-46902

main52169-46020-B0i199808-199907

sub52169-46902

main52169-46020-B0i199901-199907

sub52169-46902

main52169-46020-C0i199901-199907

sub52169-46902

main52169-46020-C0i199808-199907

sub52169-46902

main52169-46020-D0i199808-199907

sub52169-46902

main52169-46020-H0i199808-199907

sub52169-46902

main52169-46030-A0i199907

sub52169-46905

sub52169-46903

main52169-46030-A1i199907

sub52169-46905

sub52169-46903

main52169-46030-B0i199907-200105

sub52169-46905

sub52169-46903

main52169-46030-B0i200105

sub52169-46905

sub52169-46903

main52169-46030-C0i199907

sub52169-46905

sub52169-46903

main52169-46030-D0i199907-200204

sub52169-46905

sub52169-46903

main52169-46030-D1i200112-200204

sub52169-46905

sub52169-46903

main52169-46030-F0i200204

sub52169-46905

sub52169-46903

main52169-46030-G0i199907-200204

sub52169-46905

sub52169-46903

main52169-46030-H0i200204

sub52169-46905

sub52169-46903

main52169-46030-J0i199907

sub52169-46905

sub52169-46903

main52169-46040-A0i199907

sub52169-46904

main52169-46040-A1i199907

sub52169-46904

main52169-46040-B0i199907

sub52169-46904

main52169-46040-C0i199907

sub52169-46904

main52169-46040-D0i199907-200204

sub52169-46904

main52169-46040-D1i200112-200204

sub52169-46904

main52169-46040-F0i200204

sub52169-46904

main52169-46040-G0i199907-200204

sub52169-46904

main52169-46040-H0i200204

sub52169-46904

main52169-46040-J0i199907

sub52169-46904

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070i199705

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070i199705

52581PROTECTOR, REAR BUMPER, RH

main52581-46010i199705

52582PROTECTOR, REAR BUMPER, LH

main52581-46010i199705

8115

5279146010BOLT, BUMPER MOULDING SET, NO.1

main52791-46010

9010606001

main90106-06001

9011906352

main90119-06352

9016460024

main90164-60024

9017906009

main90179-06009

9018906210

main90189-06210

9043010016

main90430-10016

9046709154

main90467-09154

19 parts on this diagram · 2 diagrams in section
