FRONT BUMPER & BUMPER STAY

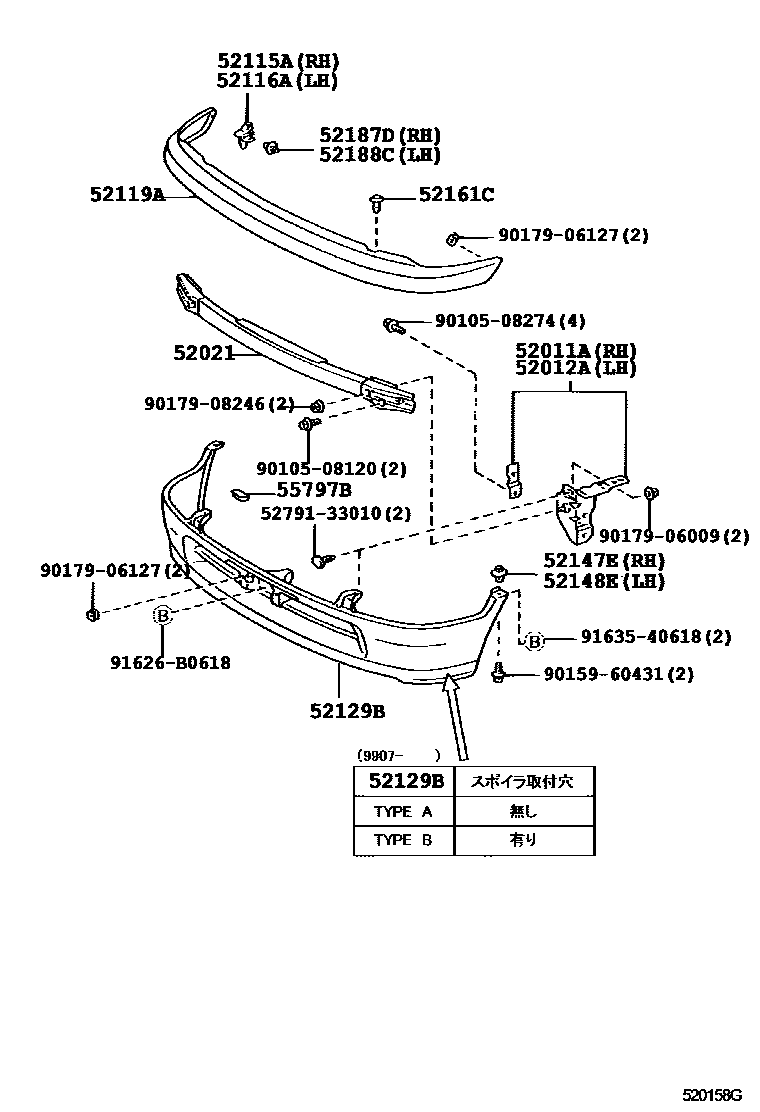

Parts diagram
52011AARM SUB-ASSY, FRONT BUMPER, RH
main52011-46010i199705
52012AARM SUB-ASSY, FRONT BUMPER, LH
main52012-46010i199705
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-46010i199705
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-46010i199705-199907
main52115-46020i199907
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-46010i199705-199907
main52116-46020i199907
52119ACOVER, FRONT BUMPER
main52119-46010i199705-199907
sub52119-46907
main52119-46011i199804-199811
sub52119-46030
main52119-46011i199712-199907
sub52119-46030
main52119-46012-B0i199804-199811
sub52119-46010
main52119-46020i199705-199907
sub52119-46908
main52119-46021i199712-199907
sub52119-46040
main52119-46021i199804-199811
sub52119-46040
main52119-46022-B0i199804-199811
sub52119-46020
main52119-46030-B0i199901-199907
sub52119-46907
main52119-46030-B0i199810-199812
sub52119-46907
main52119-46030-B0i199808-199812
GRAY M,199 ,2DW ,205 ,3E5
sub52119-46907
main52119-46030-B0i199812-199907
GRAY M,199 ,2DW ,205 ,3E5 ,742
sub52119-46907
main52119-46030-B1i199901-199907
sub52119-46907
main52119-46030-B1i199808-199907
SILVER M,049
sub52119-46907
main52119-46040-B0i199812-199907
sub52119-46020
main52119-46040-B0i199810-199812
sub52119-46020
main52119-46040-B0i199808-199812
sub52119-46020
main52119-46040-B1i199808-199907
sub52119-46020
main52119-46050i199907
sub52119-46905
main52119-46060-B0i199907-200204
GRAY M,1C0 ,202 ,3E5 ,6R4 ,8M6
sub52119-46905
sub52119-46050
main52119-46060-B0i200204
GRAY M,1C0 ,202 ,8M6
sub52119-46905
sub52119-46050
main52119-46060-B1i200112-200204
sub52119-46905
sub52119-46050
main52119-46060-B1i199907
SILVER M,040 ,049
sub52119-46905
sub52119-46050
main52119-46060-B2i200204
SILVER ME.,583 ,761
sub52119-46905
sub52119-46050
main52119-46060-B2i200204
SILVER ME.,2HX ,583 ,761
sub52119-46905
sub52119-46050
main52119-46060-B2i200105-200204
SILVER ME.,2HX
sub52119-46905
sub52119-46050
main52119-46070i199907
sub52119-46906
main52119-46080-B0i200204
sub52119-46070
main52119-46080-B0i199907-200204
sub52119-46070
main52119-46080-B1i200112-200204
sub52119-46070
main52119-46080-B1i199907
sub52119-46070
main52119-46080-B2i200105-200204
sub52119-46070
main52119-46080-B2i200204
sub52119-46070
main52119-46080-B2i200204
sub52119-46070
52129BCOVER, FRONT BUMPER, LOWER
main52129-46010-A0i199709-199907
sub52129-46901
sub52129-46907
main52129-46010-A1i199808-199907
WHITE PEARL MC.,049
sub52129-46901
sub52129-46907
main52129-46010-A1i199712-199907
sub52129-46901
sub52129-46907
main52129-46010-B0i199705-199808
SILVER ME,199 ,2DW ,2DX
sub52129-46901
sub52129-46907
main52129-46010-B0i199808-199907
SILVER ME,199 ,2DW
sub52129-46901
sub52129-46907
main52129-46010-C0i199808-199907
BLACK ME.,205
sub52129-46901
sub52129-46907
main52129-46010-C0i199709-199907
sub52129-46901
sub52129-46907
main52129-46010-D0i199705-199808
RED M.M.,3L9
sub52129-46901
sub52129-46907
main52129-46010-D1i199709-199907
sub52129-46901
sub52129-46907
main52129-46010-D1i199808-199907
SUPER RED 2.,3E5
sub52129-46901
sub52129-46907
main52129-46010-E0i199705-199808
BEIGE M.M.,4N3
sub52129-46901
sub52129-46907
main52129-46010-F1i199804-199811
sub52129-46901
sub52129-46907
main52129-46010-H0i199812-199907
DK.TURQUOISE.MC,742
sub52129-46901
sub52129-46907
main52129-46010-J0i199804-199811
sub52129-46901
sub52129-46907
main52129-46010-J1i199810-199812
sub52129-46901
sub52129-46907
main52129-46010-K0i199705-199808
LT.PURPLE ME.OP.,931
sub52129-46901
sub52129-46907
main52129-46010-K2i199705-199808
DK.PURPLE MC.GR.,940
sub52129-46901
sub52129-46907
main52129-46020-A0i199808-199907
sub52129-46902
main52129-46020-B0i199808-199907
sub52129-46902
main52129-46020-C0i199808-199907
sub52129-46902
main52129-46020-D0i199808-199907
sub52129-46902
main52129-46020-H0i199808-199907
sub52129-46902
main52129-46030-A0i199907
sub52129-46905
sub52129-46903
main52129-46030-A1i199907
sub52129-46905
sub52129-46903
main52129-46030-B0i200105
MARK = 52129-46030,SILVER ME.,1C0
sub52129-46905
sub52129-46903
main52129-46030-B0i199907-200105
sub52129-46905
sub52129-46903
main52129-46030-B0i200105
sub52129-46905
sub52129-46903
main52129-46030-C0i199907
sub52129-46905
sub52129-46903
main52129-46030-D0i199907-200204
sub52129-46905
sub52129-46903
main52129-46030-D1i200112-200204
sub52129-46905
sub52129-46903
main52129-46030-F0i200204
sub52129-46905
sub52129-46903
main52129-46030-G0i199907-200204
sub52129-46905
sub52129-46903
main52129-46030-H0i200204
sub52129-46905
sub52129-46903
main52129-46030-J0i199907
sub52129-46905
sub52129-46903
main52129-46040-A0i199907
sub52129-46904
main52129-46040-A1i199907
sub52129-46904
main52129-46040-B0i199907
sub52129-46904
main52129-46040-C0i199907
sub52129-46904
main52129-46040-D0i199907-200204
sub52129-46904
main52129-46040-D1i200112-200204
sub52129-46904
main52129-46040-F0i200204
sub52129-46904
main52129-46040-G0i199907-200204
sub52129-46904
main52129-46040-H0i200204
sub52129-46904
main52129-46040-J0i199907
sub52129-46904
52147EBRACKET, FRONT BUMPER MOUNTING, RH
main52147-16080i199705
52148EBRACKET, FRONT BUMPER MOUNTING, LH
main52147-16080i199705
52161CPIECE, FRONT BUMPER
main52161-16010i199705
52187DGUIDE, FRONT BUMPER LOCATION, RH
main52187-16070i199705
52188CGUIDE, FRONT BUMPER LOCATION, LH
main52187-16070i199705
55797BSEAL, BUMPER FRONT
main55797-46010i199705-199907
5279133010BOLT, BUMPER MOULDING SET, NO.1
main52791-33010
9010508120
main90105-08120
9010508274
main90105-08274
9015960431
main90159-60431
9017906009
main90179-06009
9017906127
main90179-06127
9017908246
main90179-08246
91626B0618
main91626-B0618
9163540618
main91635-40618

22 parts on this diagram · 1 diagram in section
