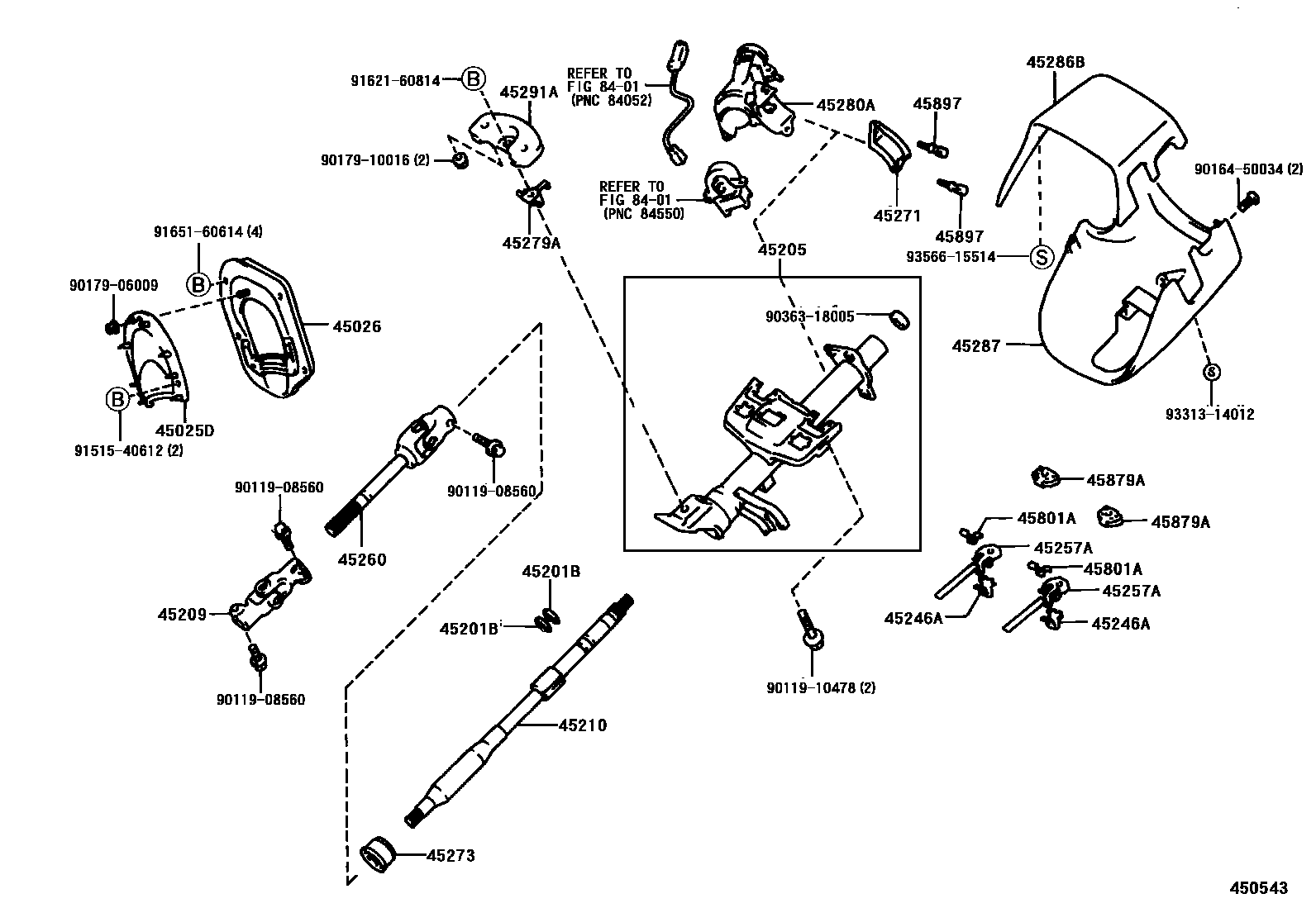

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
MD.MOON MIST,TRIM1#
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
MD.MOON MIST,TRIM1#
DK.GRAY,TRIM1#
45291ASUPPORT, STEERING COLUMN TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45879ACAPSULE, BREAK AWAY
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011910478
main90119-10478
9016450034
main90164-50034
9017906009
main90179-06009
9017910016
main90179-10016
9036318005
main90363-18005
9151540612
main91515-40612
9162160814
main91621-60814
9165160614
main91651-60614
9331314012
main93313-14012
9356615514
main93566-15514
31 parts on this diagram · 2 diagrams in section
