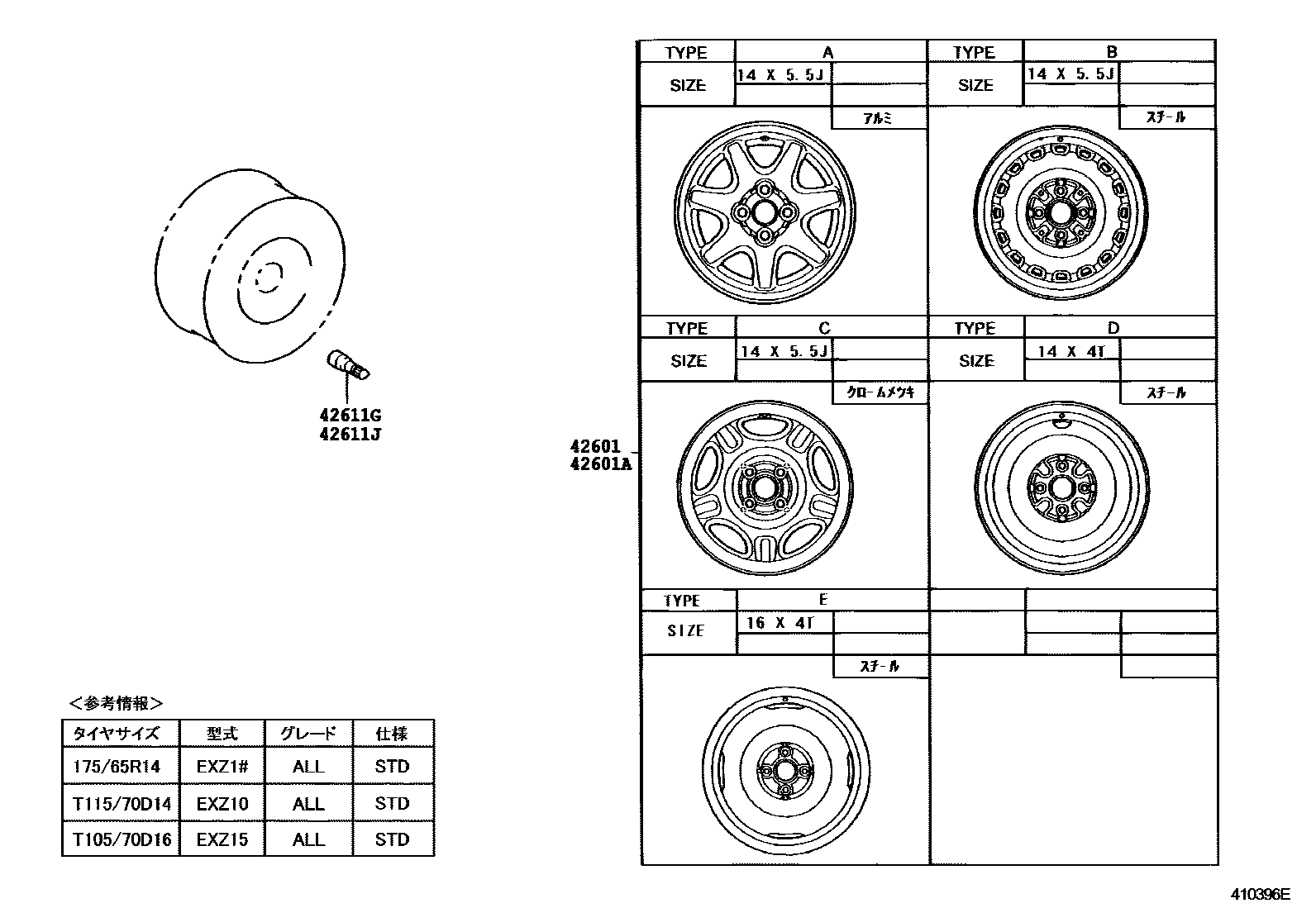

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-16500×4iEXZ1#199705

main42611-18010-01×4iEXZ1#199705

main42611-46010×4iEXZ1#199705-200105

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iEXZ15199708-199906

main42611-10321iEXZ15199906-199907

sub42611-10322

main42611-16500iEXZ1#..PB,SEPA199705

main42611-18010-01iEXZ1#..PB,SEPA199705

main42611-1A330iEXZ10199705

main42611-46010iEXZ1#..PB,SEPA199705-200105

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iEXZ1#199705

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEXZ1#199705

4 parts on this diagram · 3 diagrams in section
