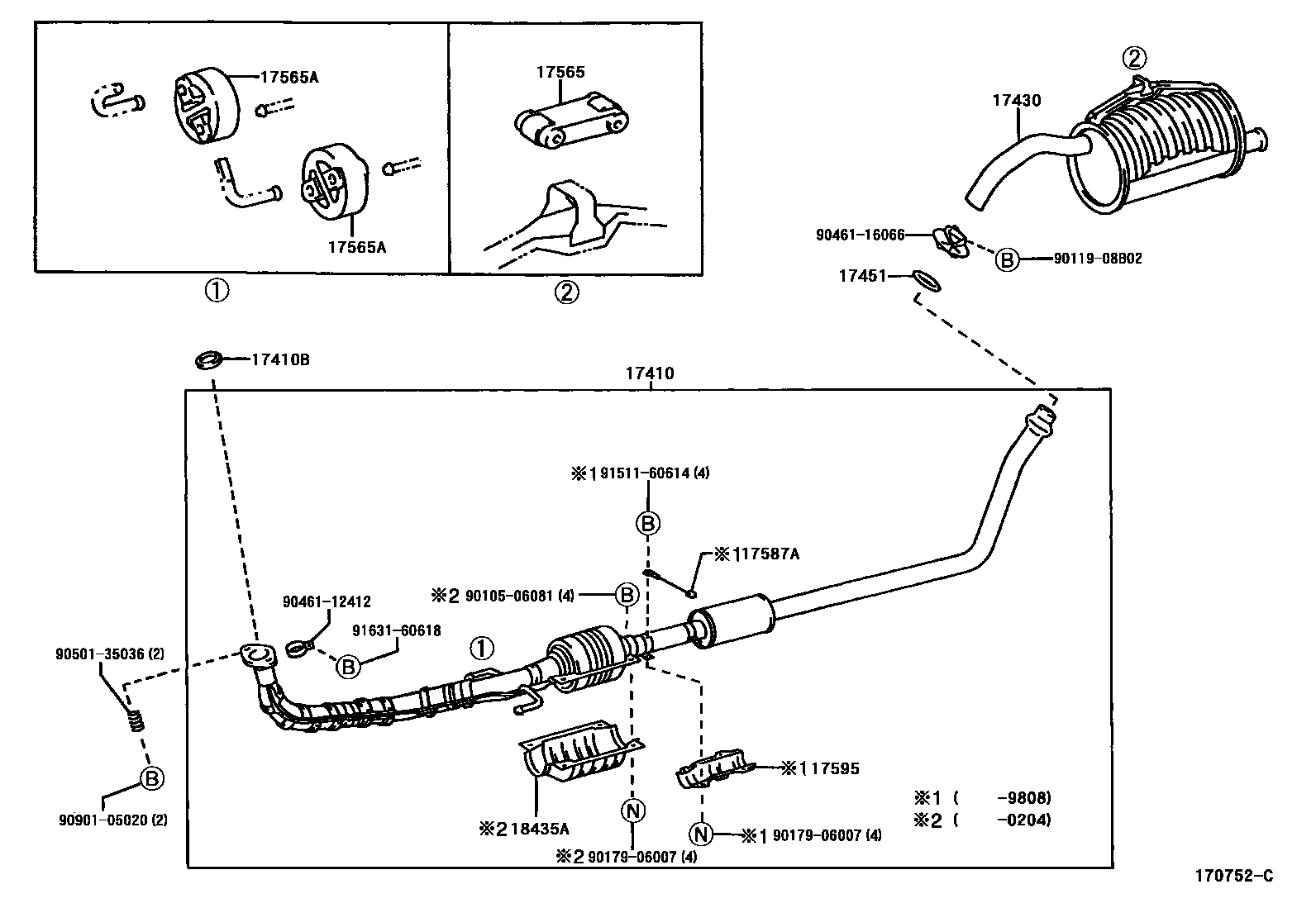

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-1B130i5EFE..EXZ10199705-199806

main17410-1B140i5EFE..EXZ15199708

main17410-1B250i5EFE..EXZ10199808-200204

main17410-1B270i5EFE..EXZ10199806-199808

main17410-1B310i5EFE..EXZ10200204

17410BGASKET, EXHAUST PIPE

main90917-06061i5EFE..EXZ15199708

main90917-06080i5EFE..EXZ10199705

17430PIPE ASSY, EXHAUST, TAIL

main17430-1B140i5EFE..EXZ10199705-199907

main17430-1B150i5EFE..EXZ15199708-199907

main17430-1B210i5EFE..EXZ10199907

main17430-1B220i5EFE..EXZ15199907

17451GASKET, EXHAUST PIPE

main90917-06060i5EFE..EXZ15199708

main90917-06081i5EFE..EXZ10199705

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-74290×2i5EFE..EXZ15199708

main17566-11150i5EFE..EXZ10199705

17565ASUPPORT, EXHAUST PIPE, NO.4

main17561-74110i5EFE..EXZ15199708

main17565-11160×2i5EFE..EXZ10199705

17587ACLAMP EXHAUST PIPE HANGER

main17587-11010i5EFE..EXZ10199705-199808

17595PROTECTOR, EXHAUST PIPE, LOWER NO.3

main17595-11090i5EFE..EXZ15199708

main17595-11250i5EFE..EXZ10199705-199808

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-02040i5EFE..EXZ10199907-200204

main18435-11020i5EFE..EXZ10199705-199907

main18435-11040i5EFE..EXZ10199908-200204

9010506081

main90105-06081

9011908B02

main90119-08B02

9017906007

main90179-06007

9046112412

main90461-12412

9046116066

main90461-16066

9050135036

main90501-35036

9090105020

main90901-05020

9151160614

main91511-60614

9163160618

main91631-60618

18 parts on this diagram · 2 diagrams in section
