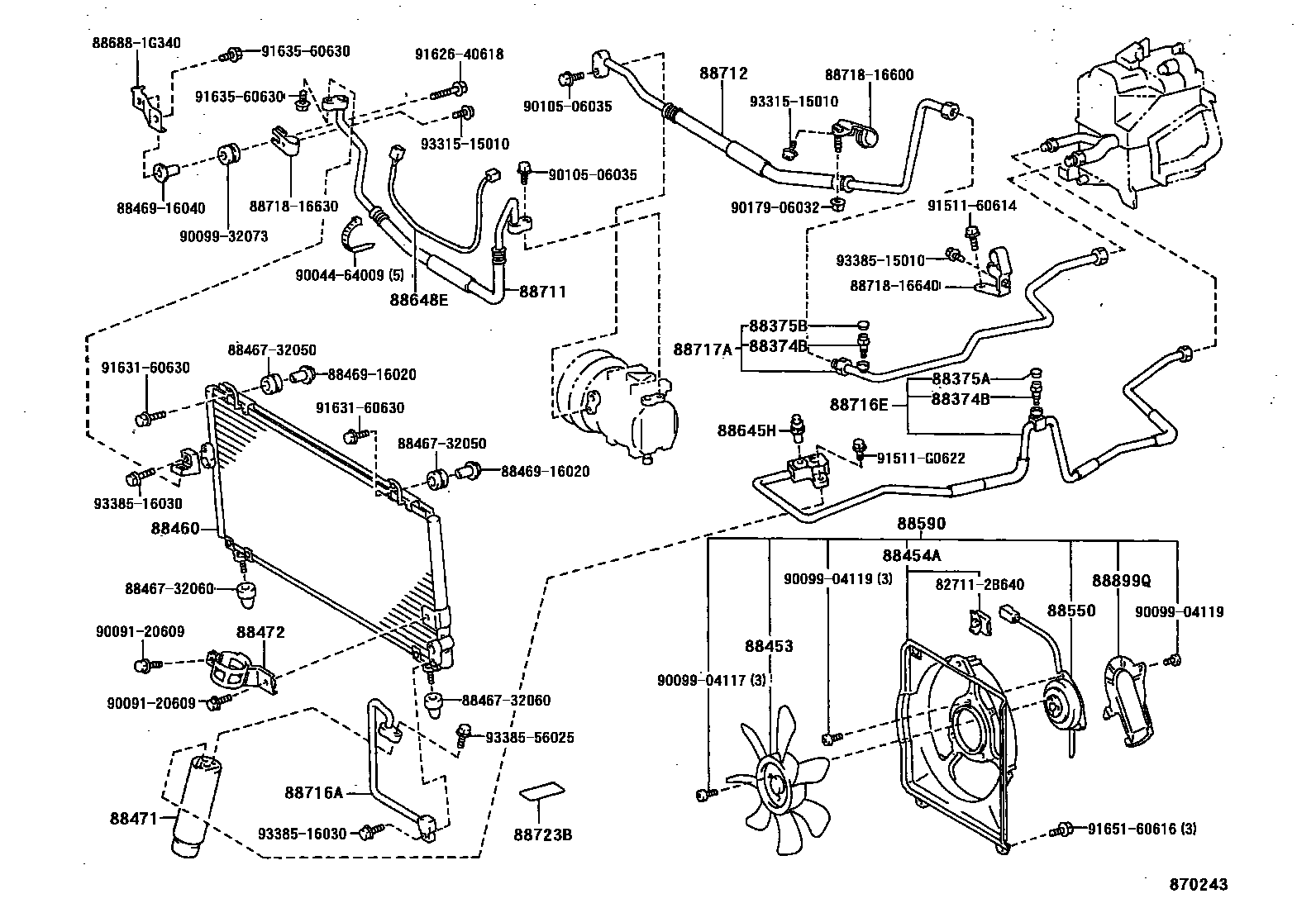

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1 0006 1 0007 1 0009 1 0011 1

88374BVALVE, SERVICE, NO.1

main88374-30010iEL5#199508

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iEL5#199508

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iEL5#199508

88453FAN, COOLING (FOR CONDENSER)

main88453-20080iEL5#199508

88454ASHROUD, FAN

main88454-16140iEL52199508

main88454-16150iEL54199508

88460CONDENSER ASSY, COOLER

main88460-16390iEL5#199508-199608

main88460-16430iEL5#199608-199802

main88460-16500iEL5#..CP199712-199802

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iEL5#199508-199802

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-16160iEL5#199508-199802

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74180iEL5#199508

88590BLOWER ASSY, W/SHROUD

main88590-16070iEL52199508

main88590-16100iEL54199508

88645HSWITCH, PRESSURE NO.1

main88645-20050iEL5#199508

88648EWIRING, COOLER

main88648-16220iEL5#199508-199608

main88648-16280iEL5#199608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-16261iEL54199508-199608

main88711-16321iEL52199508-199608

main88711-16370iEL54199608-199802

main88711-16400iEL52199608-199802

main88711-16430iEL5#..CP199712-199802

main88711-16460iEL52199712-199802

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-16390iEL5#199508-199608

main88712-16520iEL5#199608

sub88712-16530

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1G190iEL5#199508-199802

main88716-1G430iEL5#199712-199802

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1G250iEL5#199712-199802

main88716-1G250iEL54199508-199712

main88716-1G270iEL52199508

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-16230iEL5#199508

88723BLABEL, COOLER SERVICE CAUTION

main88723-16030iEL5#199508-199608

main88723-20030iEL5#199608

sub88733-30040

88899QPLATE, COVER

main88899-16020iEL5#199508

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846732050CUSHION, COOLER CONDENSER, NO.1

main88467-32050

8846732060CUSHION, COOLER CONDENSER, NO.1

main88467-32060

8846916020SWITCH, PRESSURE CONTROL

main88469-16020

8846916040SWITCH, PRESSURE CONTROL

main88469-16040

886881G340BRACKET, COOLER DIAPHRAGM

main88688-1G340

8871816600PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16600

8871816630PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16630

8871816640PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16640

9004464009

main90044-64009

9009120609

main90091-20609

9009904117

main90099-04117

9009904119

main90099-04119

9009932073

main90099-32073

9010506035

main90105-06035

9017906032

main90179-06032

9151160614

main91511-60614

91511G0622

main91511-G0622

9162640618

main91626-40618

9163160630

main91631-60630

9163560630

main91635-60630

9165160616

main91651-60616

9331515010

main93315-15010

9338515010

main93385-15010

9338516030

main93385-16030

9338556025

main93385-56025

45 parts on this diagram · 7 diagrams in section
