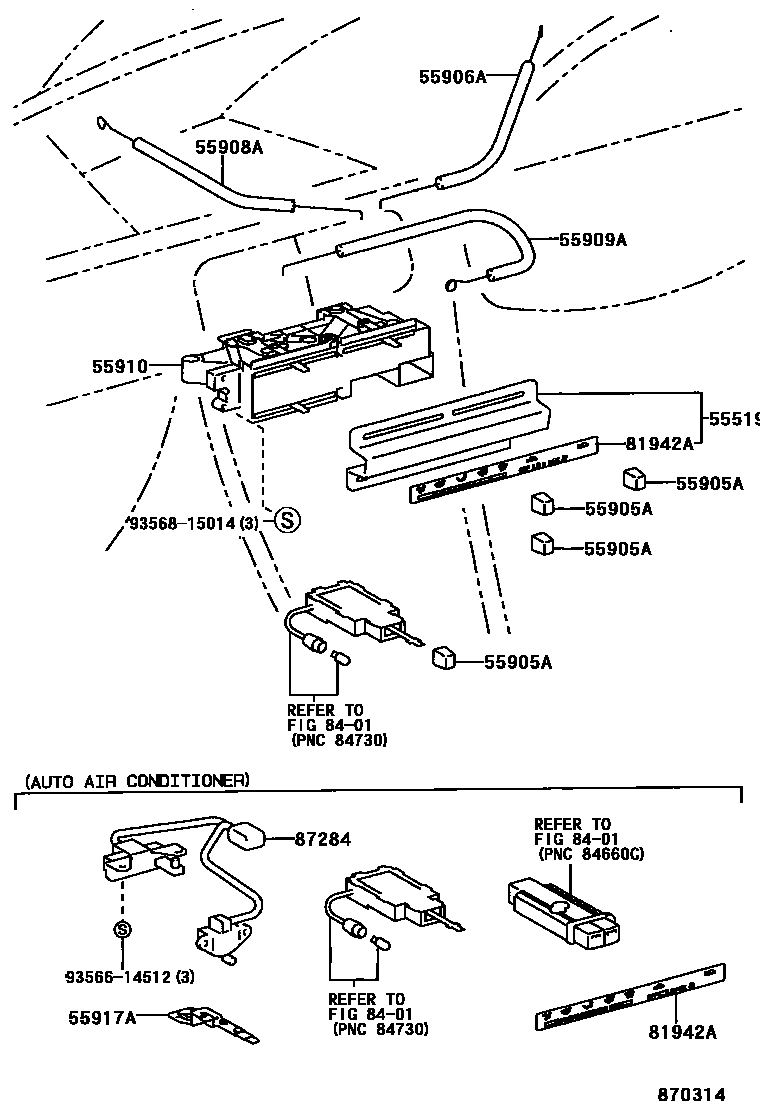

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE 0002 1����� ���� 0003 1PUSH TYPE 0004 1 0005 1

55519PLATE, HEATER CONTROL NAME

main55519-16090iEL5#199608-199802

main55519-16100iEL54199508

main55519-16110iEL5#199508-199608

main55519-16220iEL52199712-199802

main55519-16230iEL5#199712-199802

sub55519-16220

55905AKNOB, HEATER CONTROL

main55905-89115iEL5#199508-199608

main55905-89115iEL54..CP199508

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16090iEL5#199508-199608

main55906-16120iEL5#199608

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16100iEL5#199508-199608

main55908-16120iEL5#199608

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16100iEL5#199508-199608

main55909-16130iEL5#199608

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16200iEL5#199508-199608

main55910-16270iEL5#..CVT199608-199802

main55910-16310iEL5#..CP199712-199802

sub55910-16270

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-16070iEL52199508-199608

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16200iEL5#199508-199608

main81942-16220iEL52199508-199608

main81942-16250iEL54199508

main81942-16260iEL5#199608-199708

sub81942-16261

main81942-16261iEL5#199708-199802

main81942-16310iEL5#..CP199712-199802

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-16100iEL54199508

main88032-16110iEL52199508-199608

9356614512

main93566-14512

9356815014

main93568-15014

12 parts on this diagram · 5 diagrams in section
