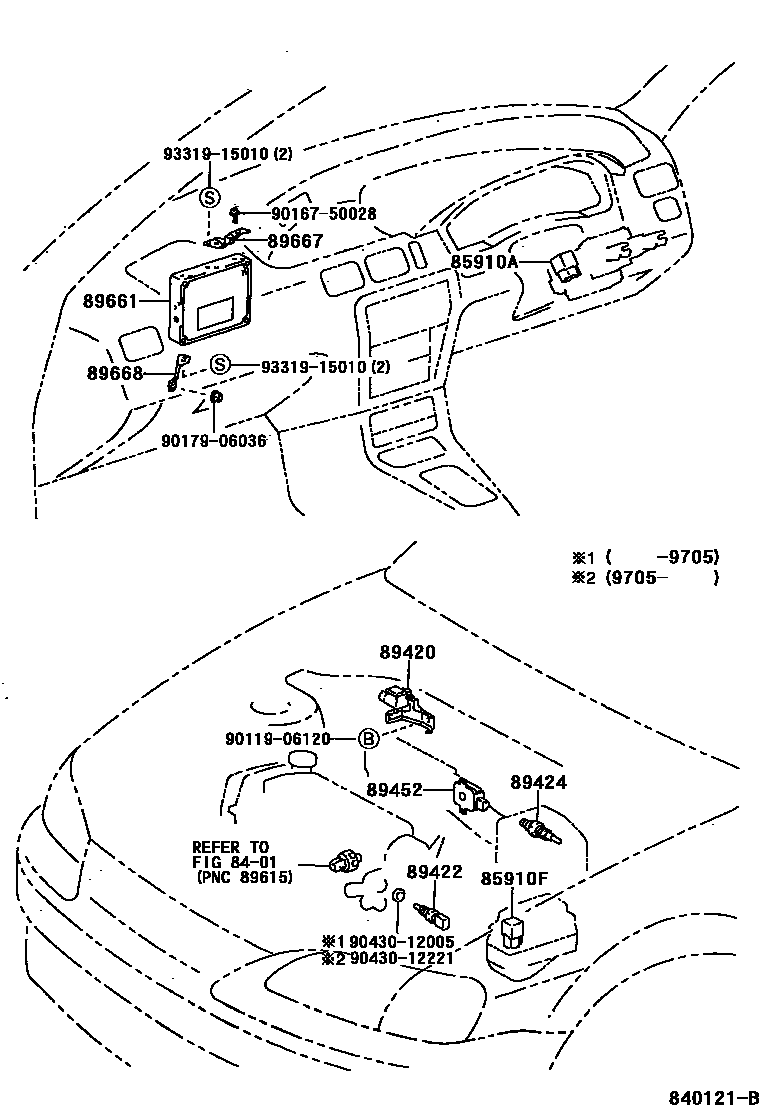

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL5#199508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL5#199508

89420SENSOR ASSY, VACUUM

main89420-16050iEL52199508-199802

main89420-16070iEL54199508-199802

main89420-16080iEL52199712-199802

main89420-16100iEL54..CP199712-199802

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL5#199705

main89422-20010iEL5#199508-199705

main89422-22030iEL5#199705

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL5#199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL52199702-199808

sub89452-20130

main89452-16020iEL52199508-199608

main89452-20130iEL52199608-199702

main89452-22090iEL54199508

89661COMPUTER, ENGINE CONTROL

main89661-16280iEL52..4F199508-199608

main89661-16430iEL52..3FC199508-199608

main89661-16440iEL54..5F199508

main89661-16450iEL54..4FC199508

main89661-16520iEL52..CVT199608-199802

main89661-16590iEL52..CP199712-199802

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEL5#199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16040iEL54199508-199802

main89668-16060iEL52199508-199802

main89668-16110iEL52..CP199712-199802

main89668-16120iEL54199712-199802

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
