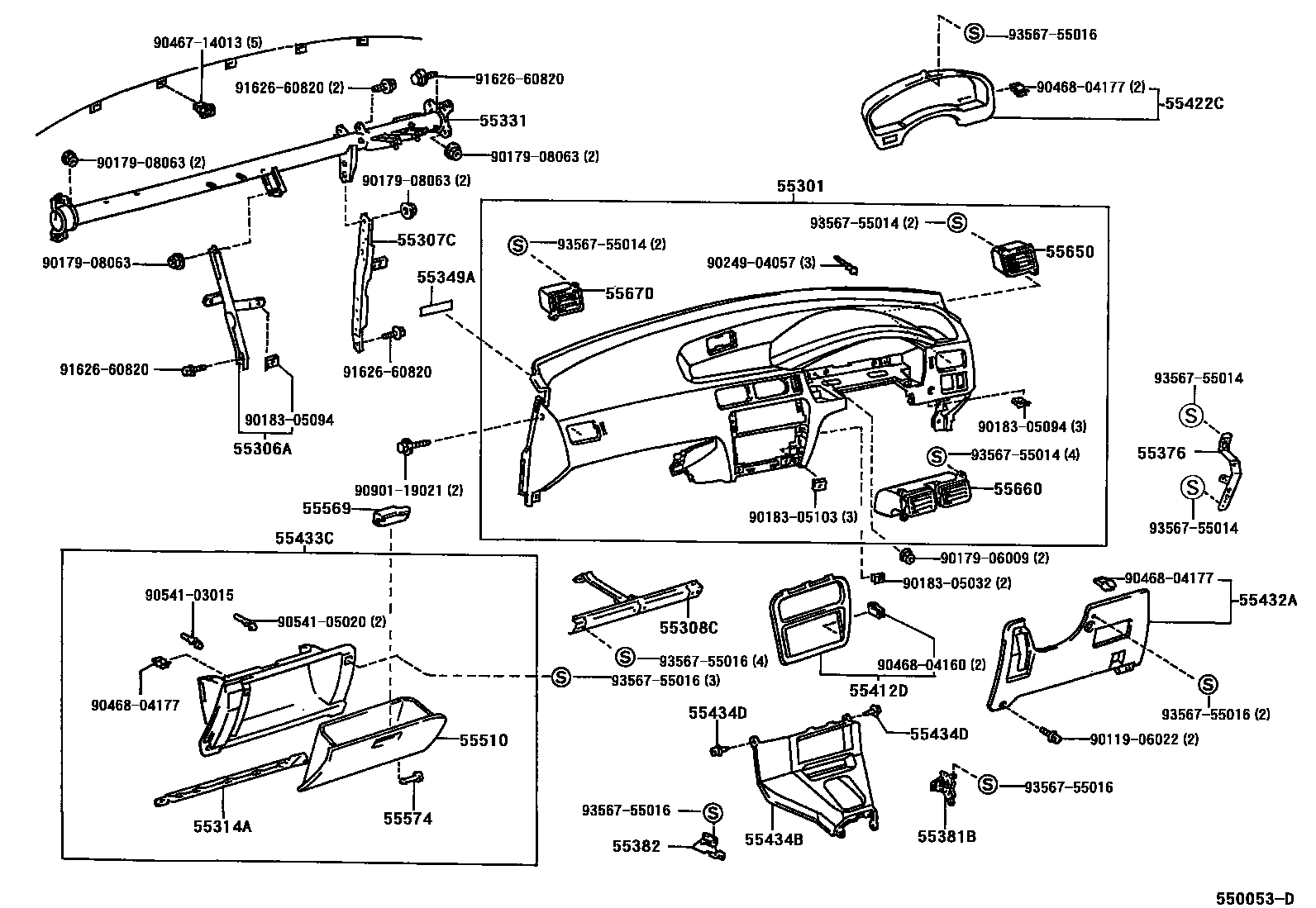

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16120-B0iEL5#199508-199608

SHADOW GRAY,TRIM1#

sub55301-16080

sub55349-16040

main55301-16140-B0iEL5#199608-199802

SHADOW GRAY,TRIM1#

main55301-16150-B1iEL5#199802

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16110iEL5#199508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16110iEL5#199508-199802

main55307-16120iEL5#..CP199712-199805

main55307-16130iEL5#199805

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16060iEL5#..CP199508

main55308-16080iEL5#..CVT199610

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-16030iEL5#199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16160iEL5#199508-199608

main55330-16171iEL5#199608-199802

main55330-16210iEL5#..CP199712-199802

55349ACUSHION, INSTRUMENT PANEL

main55349-16040iEL5#199608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16050iEL5#199508

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-16040iEL5#199508

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-16040iEL5#199508

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16110iEL5#199508-199802

main55412-16130-B1iEL52..CP199712

SHADOW GRAY,TRIM1#

sub55412-16110

main55412-16150-B0iEL5#..CP199712-199802

GRAY,TRIM1#

sub55412-16110

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16060iEL5#199508-199802

main55422-16090-B0iEL5#..CP199712-199802

SHADOW GRAY,TRIM1#

sub55422-16060

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16140-B1iEL5#199712-199802

SHADOW GRAY,TRIM1#

sub55432-16150

sub55432-16140

main55432-16140-B2iEL5#199802

MD.GRAY,TRIM1#

sub55432-16150

sub55432-16140

main55432-16150-B1iEL5#..CVT199508-199802

SHADOW GRAY,TRIM1#

sub55432-16150

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55045-16050-B1iEL5#..CP199508

SHADOW GRAY,TRIM1#

sub55045-16050

main55045-16090-B0iEL5#..CVT199610

SHADOW GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16050-B1iEL5#199508

SHADOW GRAY,TRIM1#

sub55434-16050

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-B4iEL5#199508

SHADOW GRAY,TRIM1#

sub90467-07071

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16110-B1iEL5#..CP199508

SHADOW GRAY,TRIM1#

sub55550-16110

main55550-16150-B0iEL5#..CVT199610

SHADOW GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-16010iEL5#..CVT199610

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iEL5#199508

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16080-B1iEL5#199508-199509

SHADOW GRAY,TRIM1#

sub55650-16080

main55650-16080-B2iEL5#199509-199802

GRAY,TRIM1#

sub55650-16080

main55650-16100-B1iEL5#..CP199712-199907

SHADOW GRAY,TRIM1#

sub55650-16100

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16050-B1iEL5#199508-199509

SHADOW GRAY,TRIM1#

sub55660-16050

main55660-16050-B2iEL5#..CP199509-199802

GRAY,TRIM1#

sub55660-16050

main55660-16070-B1iEL5#..CP199712

SHADOW GRAY,TRIM1#

sub55660-16070

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16050-B1iEL5#199508-199509

SHADOW GRAY,TRIM1#

sub55670-16050

main55670-16050-B2iEL5#199509-199802

GRAY,TRIM1#

sub55670-16050

main55670-16070-B1iEL5#..CP199712-199907

SHADOW GRAY,TRIM1#

sub55670-16070

9011906022

main90119-06022

9017906009

main90179-06009

9017908063

main90179-08063

9018305032

main90183-05032

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9046804160

main90468-04160

9046804177

main90468-04177

9054103015

main90541-03015

9054105020

main90541-05020

9090119021

main90901-19021

9162660820

main91626-60820

9356755014

main93567-55014

9356755016

main93567-55016

38 parts on this diagram · 2 diagrams in section
