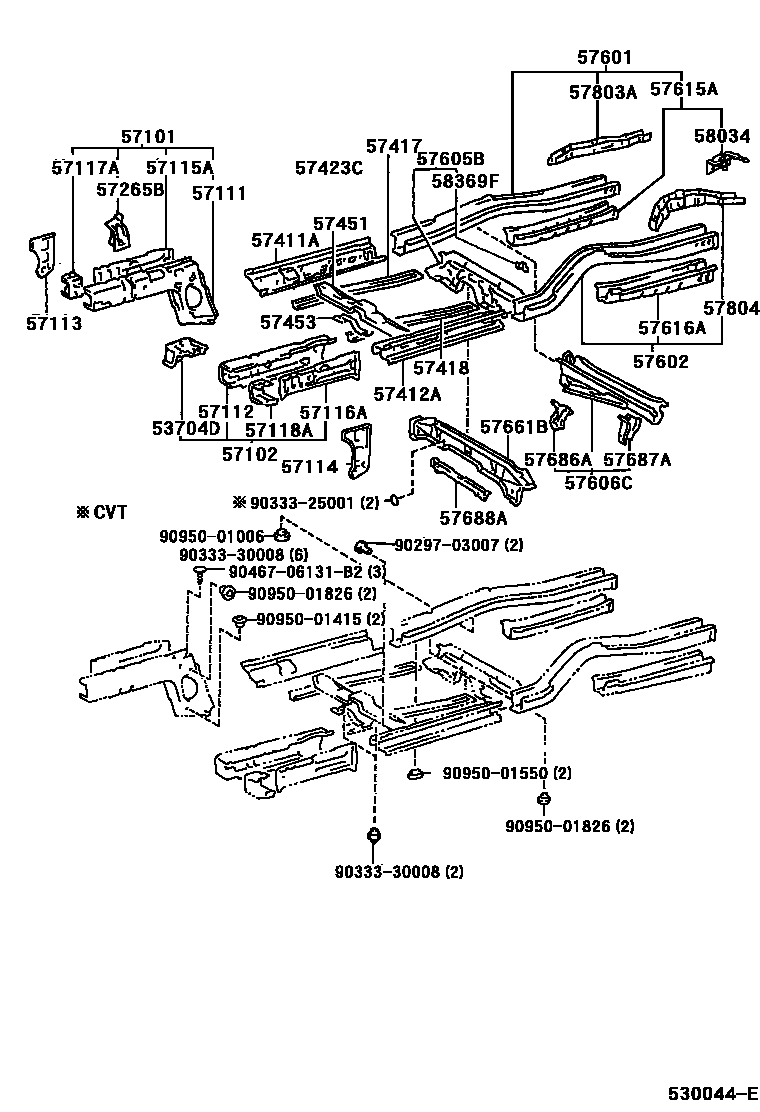

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-16020iEL5#199508

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-16200iEL5#199508-199706

main57101-16260iEL5#199706

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-16290iEL5#199508-199706

main57102-16291iEL5#199706

57111MEMBER, FRONT SIDE, RH

main57111-16130iEL5#199508-199706

main57111-16131iEL5#199706

57112MEMBER, FRONT SIDE, LH

main57112-16150iEL5#199508-199706

main57112-16151iEL5#199706

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-16060iEL5#199508

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-16060iEL5#199508

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-16080iEL5#199508

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-16080iEL5#199508

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-16060iEL5#199707

main57117-16070iEL5#199508-199707

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-16060iEL5#199707

main57118-16070iEL5#199508-199707

57265BBRACKET, ENGINE MOUNTING, RH

main57265-16030iEL5#199508

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-16902iEL5#..CVT199712-199802

main57401-16904iEL5#..CP199712-199802

main57401-16905iEL5#199906-199907

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-16902iEL5#199508-199712

main57402-16904iEL5#..CP199712-199802

main57402-16905iEL5#199906-199907

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-16010iEL5#199508

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-16010iEL5#199508

57423CREINFORCEMENT, FRONT FLOOR UNDER, INNER

main57423-46010×2iEL5#..CP199712-199802

57451MEMBER, FRONT FLOOR CROSS

main57408-16040iEL5#199508

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10021iEL5#199508

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-16310iEL5#..CP199508

main57601-16330iEL5#..CVT199610

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-16290iEL5#..CP199508

main57602-16310iEL5#..CVT199610

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-16050iEL5#199508

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-16110iEL5#199508

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-16919iEL5#199508

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-16915iEL5#199508

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-16010iEL5#199508

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-16030iEL5#199508

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57687-16020iEL5#199508

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-16030iEL5#199508

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-16030iEL5#199508

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-16050iEL5#199508

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-16030iEL5#199608

58369FBRACKET, FUEL TUBE, NO.3

main58369-32010iEL5#199508-199712

9029703007

main90297-03007

9033325001

main90333-25001

9033330008

main90333-30008

9046706131B2

main90467-06131B2

9095001006

main90950-01006

9095001415

main90950-01415

9095001550

main90950-01550

9095001826

main90950-01826

41 parts on this diagram · 1 diagram in section
