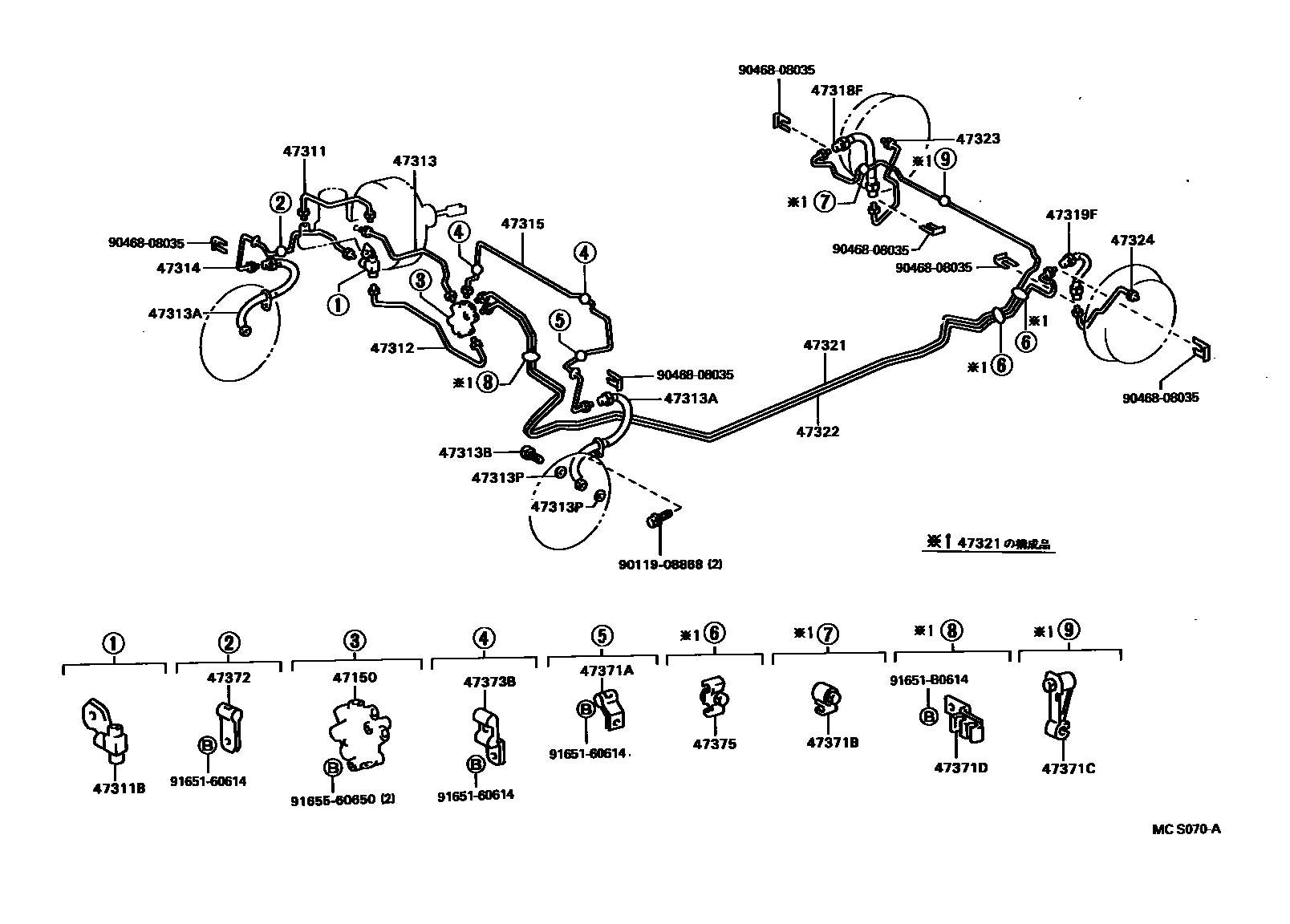

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0004 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0009 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12060iEL52199508-199608

sub47150-12270

main47150-12150iEL54..CVT199610-199802

main47150-12200iEL54199802

main47150-13020iEL52199802

main47150-20130iEL54199508-199608

sub47150-12240

main47150-20240iEL52..CVT199610-199802

47311TUBE, FRONT BRAKE, NO.1

main47311-10180iEL5#199508-199608

main47311-16170iEL5#199608-199712

main47311-16200iEL5#199508-199608

main47311-16240iEL5#..CP199712-199802

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10168iEL54..5F;EL52..CP..4F199612

main90413-10259iEL5#199508-199608

main90904-12060iEL5#..ATM199612

47312TUBE, FRONT BRAKE, NO.2

main47312-16140iEL5#199508-199608

main47312-16150iEL5#199608-199712

main47312-16180iEL5#199508-199608

main47312-16210iEL5#..CP199712-199802

47313TUBE, FRONT BRAKE, NO.3

main47313-16140iEL5#199508-199608

main47313-16170iEL5#199608-199712

main47313-16200iEL5#199508-199608

main47313-16230iEL5#..CP199712-199802

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02813iEL5#199508

main90947-02814iEL5#199508

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEL5#199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEL5#199508

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEL54..CP;EL52..CP..(3FC,4F)199508

main47314-16090iEL5#199508-199608

47315TUBE, FRONT BRAKE, NO.5

main47315-16120iEL5#199508-199608

main47315-16140iEL5#..CVT199712-199802

main47315-16170iEL5#199508-199608

main47315-16200iEL5#..CP199712-199802

47318TUBE, FRONT BRAKE, NO.8

main47318-16030iEL5#199508

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02637iEL5#199508

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02637iEL5#199508

47321TUBE, REAR BRAKE, NO.1

main47321-16140iEL5#199508

47322TUBE, REAR BRAKE, NO.2

main47322-16130iEL5#199508

47323TUBE, REAR BRAKE, NO.3

main47323-16170iEL5#199508

47324TUBE, REAR BRAKE, NO.4

main47324-16160iEL5#199508

47371ACLAMP, BRAKE TUBE, NO.1

main47371-16060iEL54..CP;EL52..CP..(3FC,4F)199508

main90461-06221iEL5#199508-199608

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10100iEL5#199508

47371CCLAMP, BRAKE TUBE, NO.7

main47371-10110iEL5#199508

47371DCLAMP, BRAKE TUBE, NO.8

main47371-30010iEL5#199508

47372CLAMP, BRAKE TUBE, NO.2

main47371-10150iEL5#..CVT;EL52..CP..5F199610

main90461-10738iEL5#199508-199608

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01207×2iEL5#199508-199608

main90949-01969×2iEL5#..CVT;EL52..CP..5F199610

47375CLAMP, BRAKE TUBE, NO.5

main47371-10080×2iEL5#199508

9011908868

main90119-08868

9046808035

main90468-08035

9165160614

main91651-60614

91651B0614

main91651-B0614

9165560650

main91655-60650

29 parts on this diagram · 6 diagrams in section
