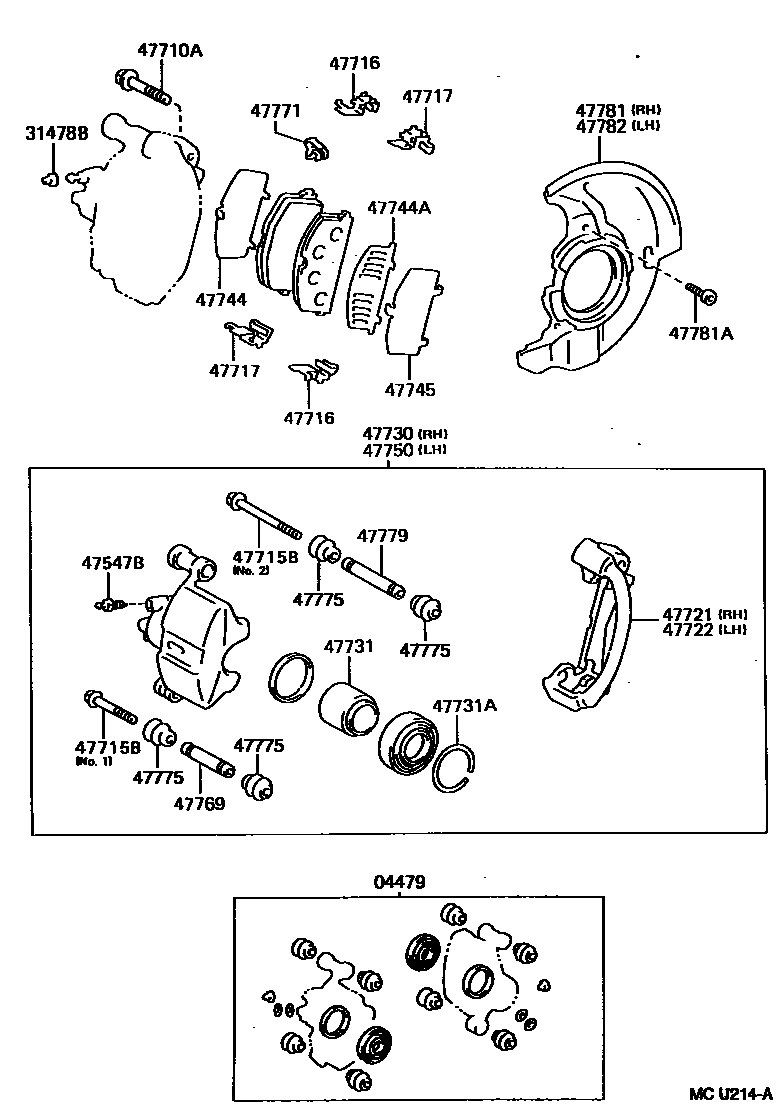

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEL5#..CVT;EL52..CP..5F199610

main04479-16021iEL52199508-199608

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEL5#199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEL5#199508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEL5#199508

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003×2iEL5#199508

main90119-09004×2iEL5#199508

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEL5#199611

main47716-32031×4iEL5#199508-199611

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iEL5#199611

main47717-32031×4iEL5#199508-199611

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-10010iEL54199508

main47721-12120iEL52..CP..(3FC,4F)199508

main47721-16010iEL52199508-199608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-10010iEL54199508

main47721-12120iEL52..CVT;EL52..CP..5F199610

main47721-16010iEL52199508-199608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10101iEL52..CP..(3FC,4F)199508

main47730-10111iEL54199508

main47730-16081iEL52199508-199608

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEL5#..CVT;EL52..CP..5F199610-199810

main47731-16020×2iEL52199508-199608

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEL5#199508

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011×2iEL5#199508-199512

main47744-32010×2iEL5#199512-199608

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iEL5#199508-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iEL5#199508-199608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10101iEL52..CVT;EL52..CP..5F199610

main47750-10111iEL54199508

main47750-16081iEL52199508-199608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEL5#199508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iEL54199508-199808

main47771-32010×2iEL52199508-199808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iEL5#199508

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iEL5#199508

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10060iEL52199508

main47781-10070iEL54199508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEL5#199508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10060iEL52199508

main47782-10070iEL54199508

23 parts on this diagram · 3 diagrams in section
