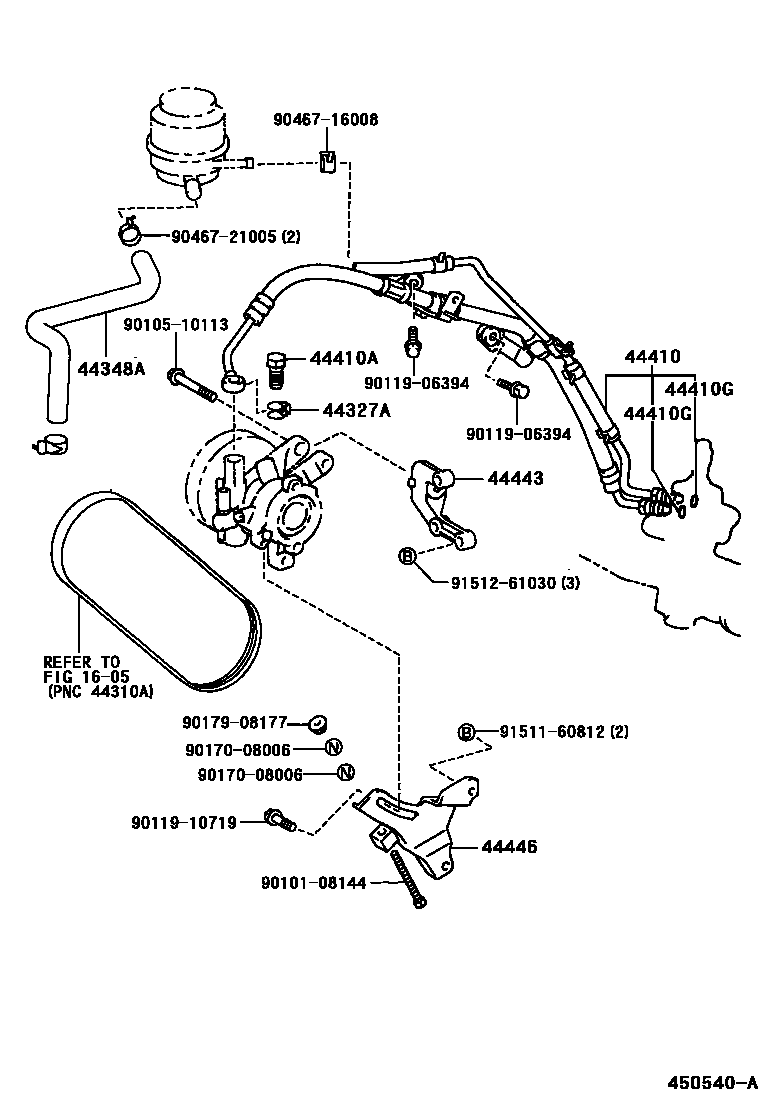

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL5#199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10051iEL5#199508-199704

main44348-46010iEL5#199704

44410TUBE ASSY, PRESSURE FEED

main44410-10111iEL52199508

main44410-16250iEL54199508-199704

main44410-46010iEL54199704

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iEL5#199508

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEL5#199508

44443BRACKET, PUMP

main44443-10030iEL5#199508

44446STRUT, ADJUSTING

main44446-10050iEL52199508

main44446-16051iEL54199508

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721005

main90467-21005

9151160812

main91511-60812

9151261030

main91512-61030

18 parts on this diagram · 1 diagram in section
