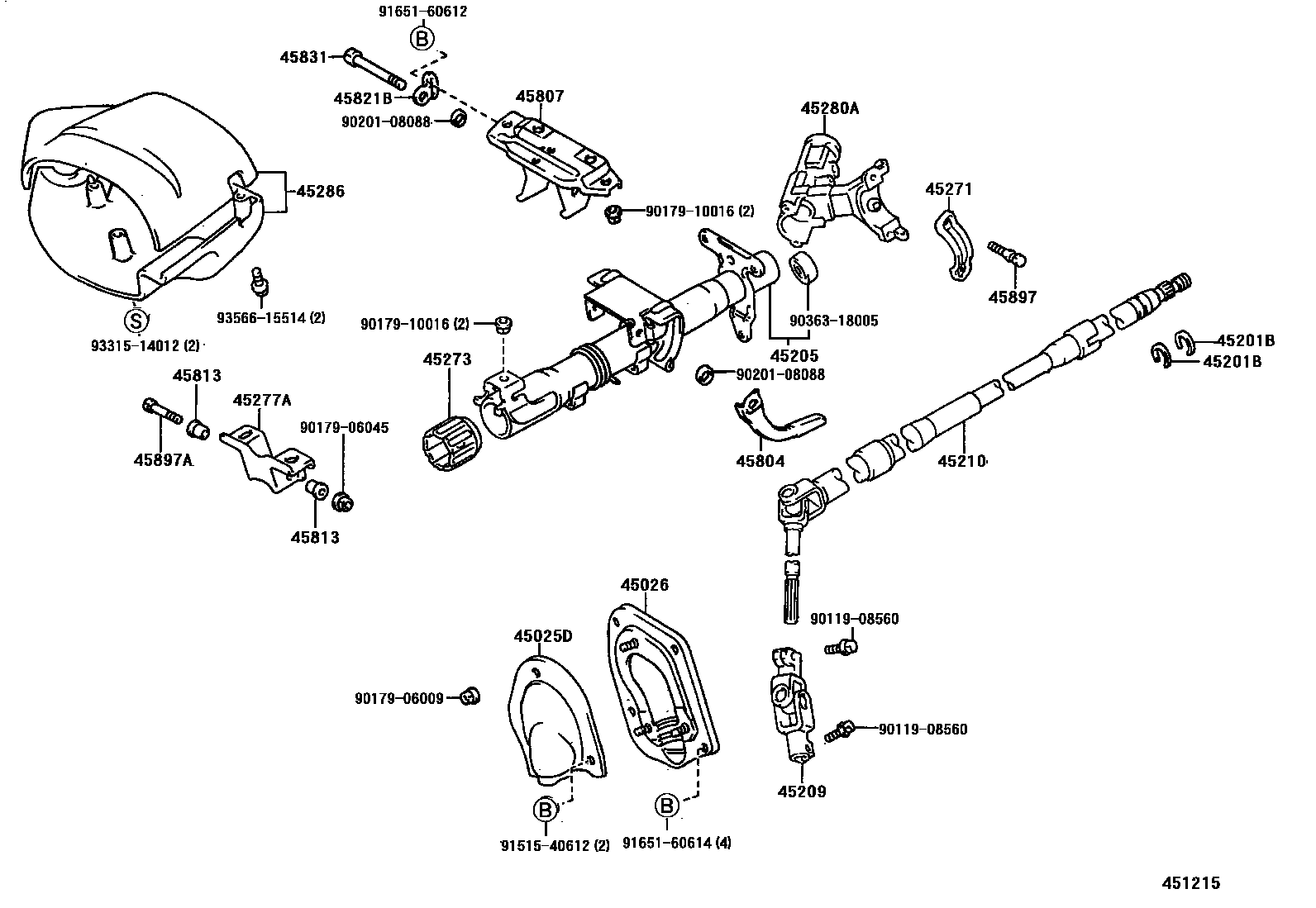

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45210SHAFT ASSY, STEERING MAIN
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
45804LEVER SUB-ASSY, STEERING TILT
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45813COLLAR, TILT STEERING SUPPORT, NO.1
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45831BOLT, TILT LEVER LOCK, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9017906009
main90179-06009
9017906045
main90179-06045
9017910016
main90179-10016
9020108088
main90201-08088
9036318005
main90363-18005
9151540612
main91515-40612
9165160612
main91651-60612
9165160614
main91651-60614
9331514012
main93315-14012
9356615514
main93566-15514
29 parts on this diagram · 2 diagrams in section
