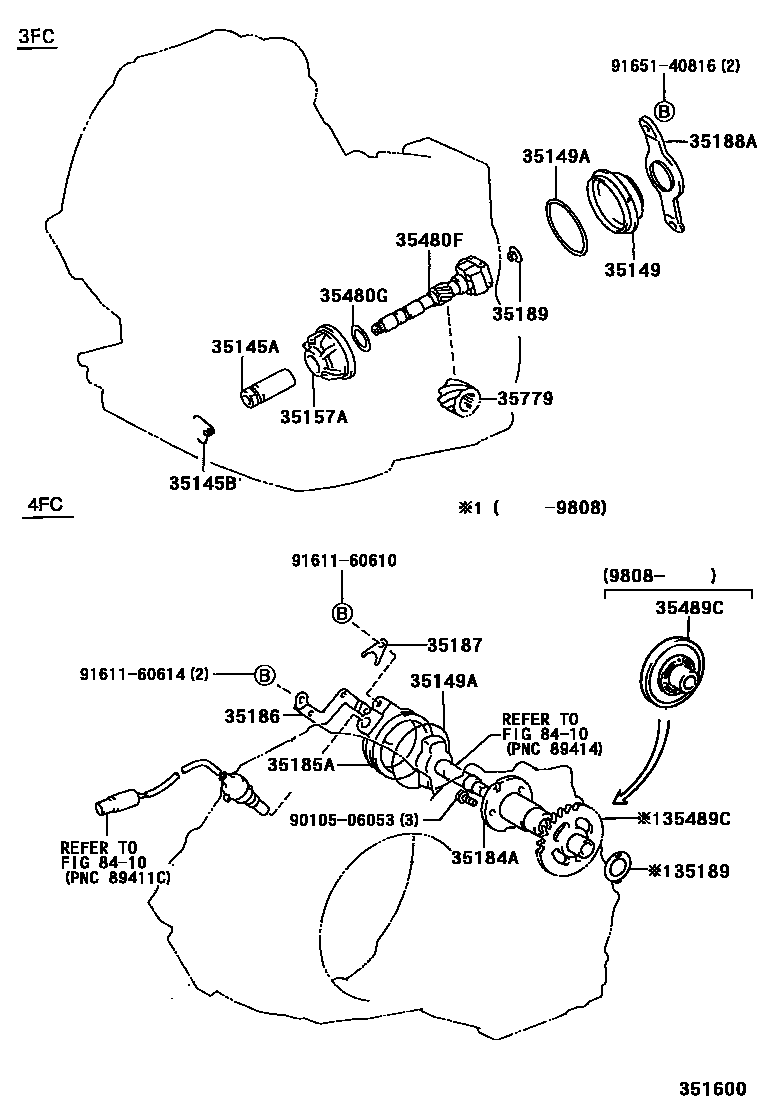

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iEL52..3FC199508

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iEL52..3FC199508

35149COVER, GOVERNOR

main35149-12010iEL52..3FC199508

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iEL54..4FC199508

main90301-73001iEL52..3FC199508

35157AADAPTER, GOVERNOR BODY

main35157-12010iEL52..3FC199508

35184AADAPTER, SENSOR ROTOR

main35184-12010iEL54..4FC199508

35185ACOVER, SPEED SENSOR

main35185-12010iEL54..4FC199508

35186BRACKET, SPEED SENSOR COVER

main35186-12010iEL54..4FC199508

35187PLATE, SPEED SENSOR LOCK

main35187-12010iEL54..4FC199508

35188ABRACKET, GOVERNOR COVER

main35188-12010iEL52..3FC199508

35189WASHER, GOVERNOR THRUST, NO.1

main35189-12010iEL54..4FC199508-199808

main35189-32011iEL52..3FC199508

35480FBODY ASSY, GOVERNOR

main35480-32013iEL52..3FC199508

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iEL52..3FC199508

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEL54..4FC199508-199808

main35489-16020iEL54..4FC199808

35779GEAR, GOVERNOR DRIVE

main35779-32010iEL52..3FC199508

8410

9010506053

main90105-06053

9161160610

main91611-60610

9161160614

main91611-60614

9165140816

main91651-40816

20 parts on this diagram · 1 diagram in section
