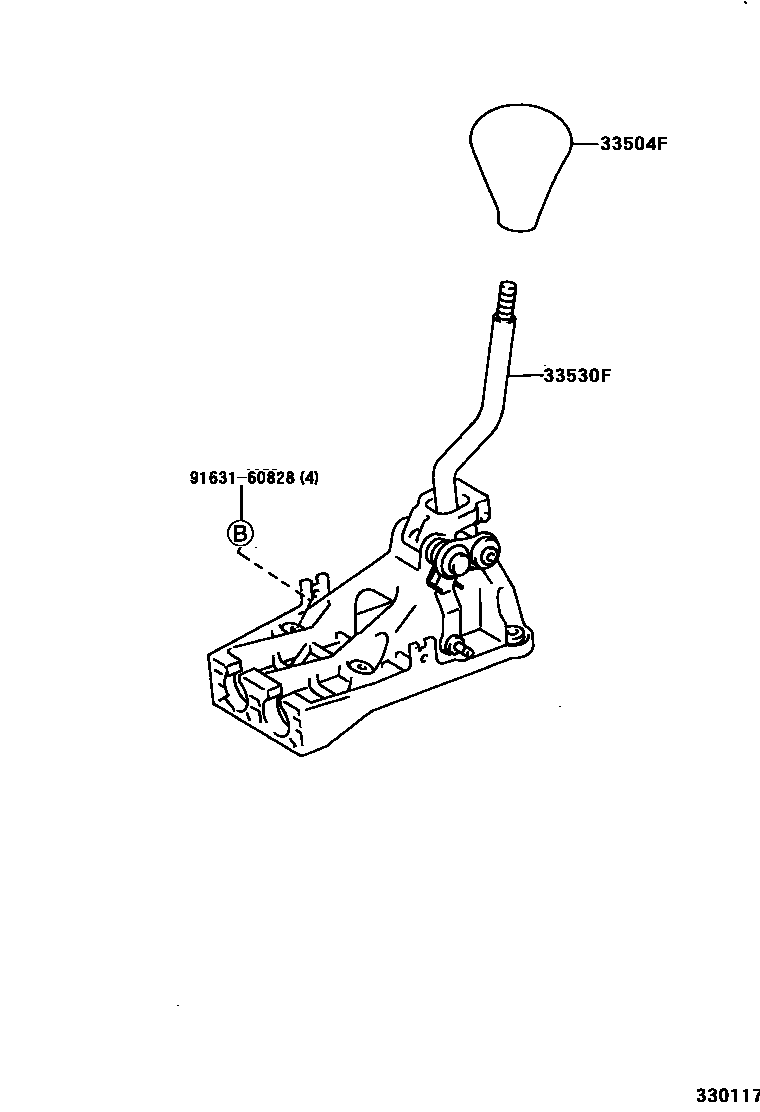

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-P0iEL52..4F199508-199608

SHADOW GRAY,TRIM1#

sub33504-14040

main33504-14060-P0iEL52..4F199608-199802

SHADOW GRAY,TRIM1#

sub33504-14060

sub33504-14040

main33504-24010-B1iEL5#..5F199508-199907

DARK SMOKE GRAY,TRIM1#

sub33504-24010

main33542-12171-B0iEL52..3FC199508-199608

SHADOW GRAY,TRIM1#

sub33542-12171

main33542-12172-B0iEL52..3FC199608-199907

SHADOW GRAY,TRIM1#

main33542-16070-B1iEL54..4FC199508-199608

SHADOW GRAY,TRIM1#

main33542-16071-B1iEL54..4FC199608-199907

SHADOW GRAY,TRIM1#

sub33542-16071

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-16140iEL5#..MTM199508-199608

sub33530-16150

main33530-16150iEL5#..MTM199608

9163160828

main91631-60828

3 parts on this diagram · 5 diagrams in section
