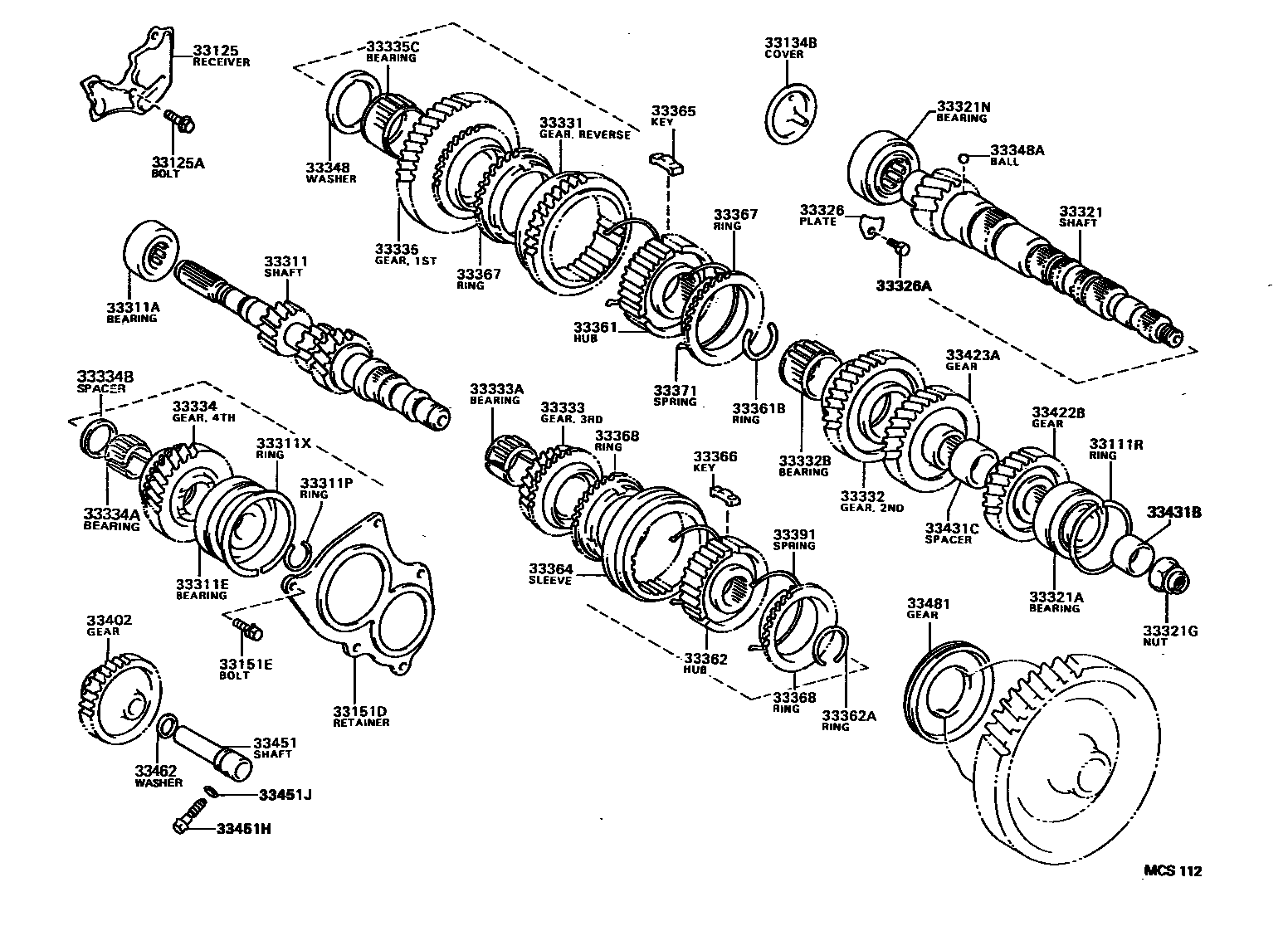

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
sub91611-B0812
33134BCOVER, OUTPUT SHAFT(MTM)
33151DRETAINER, BEARING, REAR(MTM)
sub33151-52010
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
sub91611-B0812
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
sub33034-10051
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12111
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33431BSPACER, OUTPUT SHAFT
33431CSPACER, OUTPUT GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
50 parts on this diagram · 3 diagrams in section
