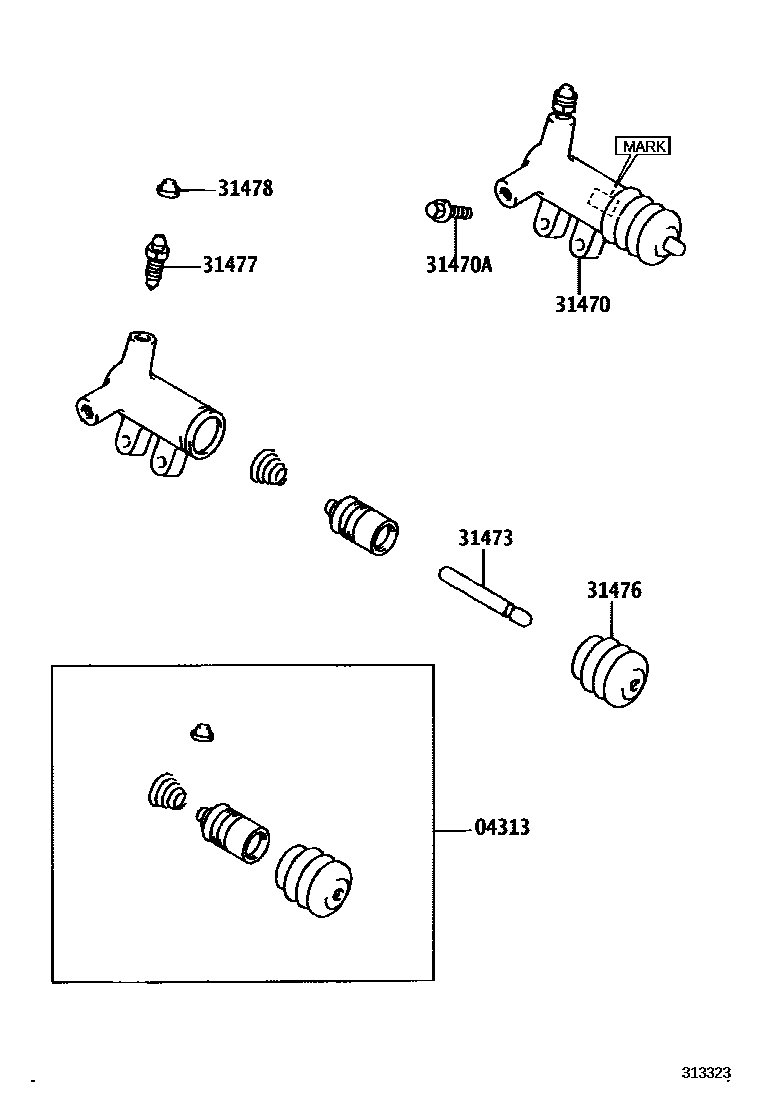

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iEL52..4F199508-199509

main04313-17020iEL52..MTM199509

main04313-22030iEL54..5F199508

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10012iEL52..4F199508-199509

MARK = 13/16

main31470-10040iEL52..MTM199509

MARK = 7/8

main31470-12093iEL54..5F199508

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iEL5#..MTM199508

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iEL52..MTM199508

main31473-32010iEL54..5F199508

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iEL5#..MTM199508

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iEL5#..MTM199508

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iEL5#..MTM199508

7 parts on this diagram · 1 diagram in section
