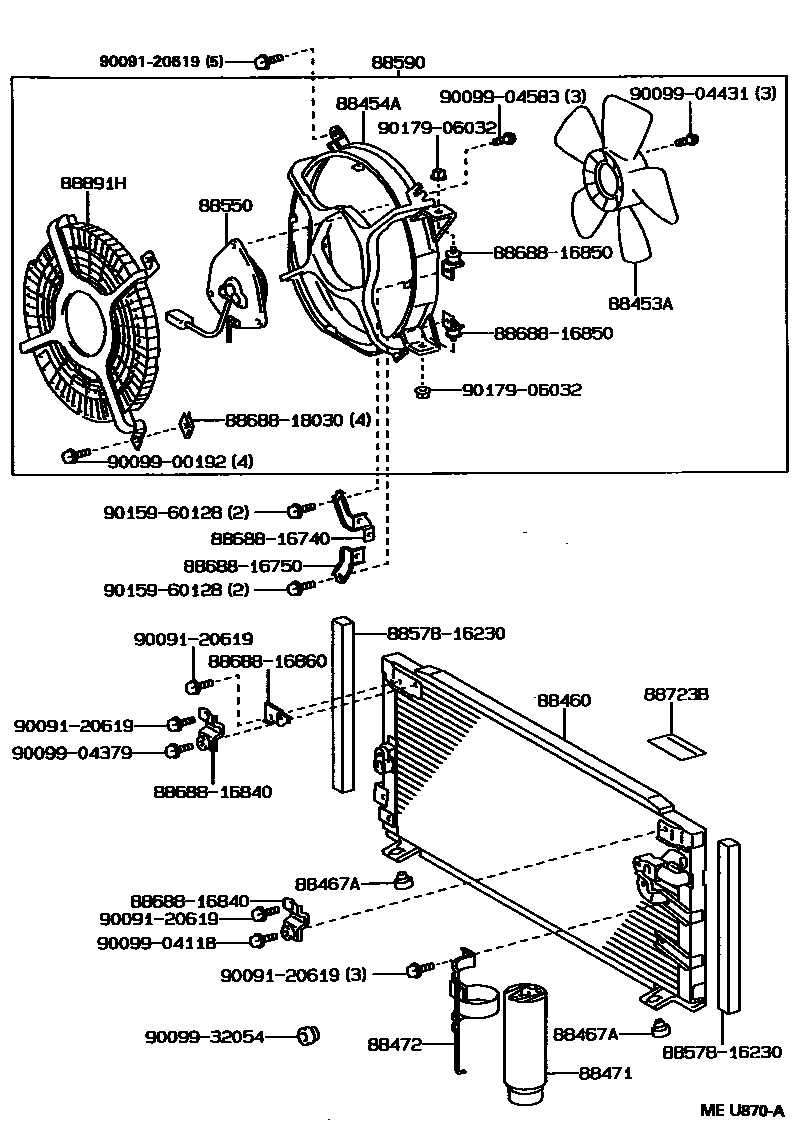

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1MAKER OPTION 0005 1DEALER OPTION

88453AFAN, COOLING

main88453-10020iEL44199101-199212

main88453-12080iEL44199212-199508

88454ASHROUD, FAN

main88454-16110iEL44199101-199508

88460CONDENSER ASSY, COOLER

main88460-16270iEL44199101-199212

main88460-16280iEL44199212-199308

main88460-16281iEL44199308-199508

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10020iEL44199101-199508

main88467-16090iEL44..BETA199212-199508

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iEL44199101-199308

sub88471-16050

main88471-34010iEL44199308-199508

88472BRACKET, RECEIVER TANK, NO.1

main88472-16110iEL44199101-199508

main88472-16120iEL44..BETA199212-199508

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-10050iEL44199101-199508

88590BLOWER ASSY, W/SHROUD

main88590-16090iEL44199101-199212

main88590-16091iEL44199212-199508

88723BLABEL, COOLER SERVICE CAUTION

main88723-16030iEL44199308-199508

main88723-20010iEL44199101-199308

88891HCOVER, COOLER, NO.1

main88891-16040iEL44199101-199508

8857816230PAKING, COOLER AIR DUCT

main88578-16230

8868816740BRACKET, COOLER DIAPHRAGM

main88688-16740

8868816750BRACKET, COOLER DIAPHRAGM

main88688-16750

8868816840BRACKET, COOLER DIAPHRAGM

main88688-16840

8868816850BRACKET, COOLER DIAPHRAGM

main88688-16850

8868816860BRACKET, COOLER DIAPHRAGM

main88688-16860

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

9009120619

main90091-20619

9009900192

main90099-00192

9009904118

main90099-04118

9009904379

main90099-04379

9009904431

main90099-04431

9009904583

main90099-04583

9009932054

main90099-32054

9015960128

main90159-60128

9017906032

main90179-06032
