HEATING & AIR CONDITIONING - SET

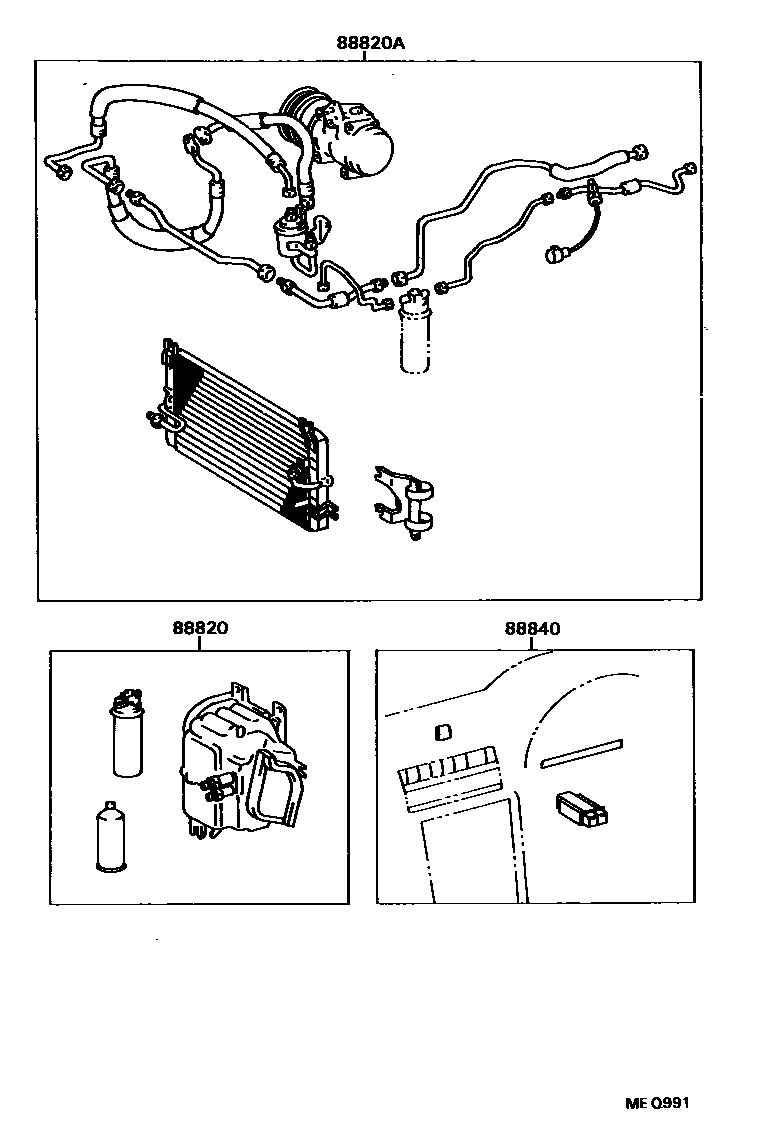

Parts diagram

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-16060i199101-199212

main88820-16061i199308-199508

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-1G280i199101-199212

main88830-1G281i199212-199308

main88830-1G282i199308-199508

main88830-1G290i199101-199212

main88830-1G291i199212-199308

main88830-1G292i199308-199409

main88830-1G293i199409-199508

main88830-1G300i199101-199212

main88830-1G301i199212-199308

main88830-1G302i199308-199508

main88830-1G310i199101-199212

main88830-1G311i199212-199308

main88830-1G312i199308-199409

main88830-1G313i199409-199508

main88830-1G320i199101-199212

main88830-1G330i199101-199212

main88830-1G340i199101-199212

main88830-1G350i199101-199212

88840AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3

main88840-16020-01i199101-199212

BLACK,TRIM2#

main88840-16030-01i199101-199212

main88840-16040-01i199101-199212

main88840-16140-C0i199212-199508

3 parts on this diagram · 1 diagram in section
