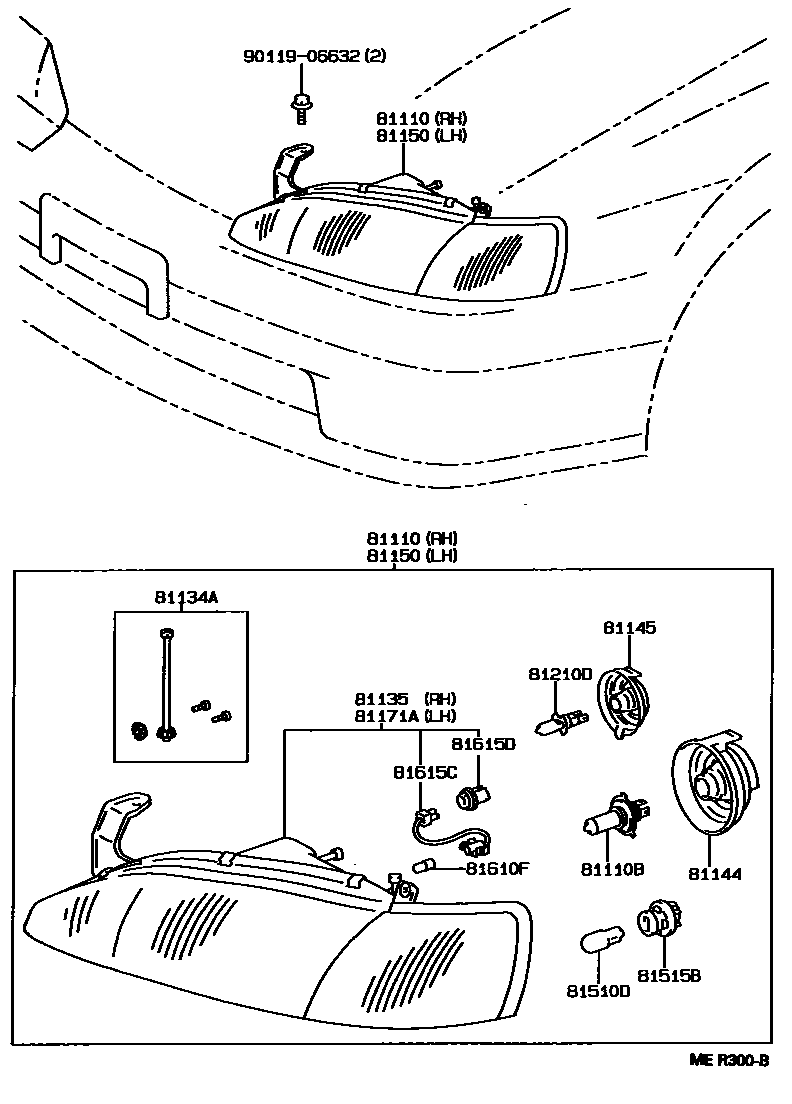

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-16520iEL44199101-199508

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22002×2iEL44199101-199508

sub90981-13055

81134ABOLT SET, HEAD LAMP AIMING

main81134-32370×2iEL44199101-199310

main81134-32371×2iEL44199407-199508

81135UNIT ASSY, HEADLAMP, RH

main81130-16520iEL44199101-199508

81144COVER, HEADLAMP, NO.1

main81139-16520×2iEL44199101-199508

81145COVER, HEADLAMP, NO.2

main81212-32030×2iEL44199101-199508

81150HEADLAMP ASSY, LH

main81150-16520iEL44199101-199508

81171AUNIT, HEADLAMP, LH

main81170-16520iEL44199101-199508

81210DBULB, FOG LAMP

main90981-13056×2iEL44199101-199508

sub90981-13057

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13050×2iEL44199101-199508

sub90981-13043

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-32180×2iEL44199101-199508

81610FBULB(FOR CLEARANCE LAMP)

main90981-12025×2iEL44199101-199508

81615CSOCKET & WIRE, CLEARANCE LAMP

main81178-16520×2iEL44199101-199508

81615DSOCKET, CLEARANCE LAMP

main81138-16520×2iEL44199101-199508

9011906632

main90119-06632

15 parts on this diagram · 1 diagram in section
