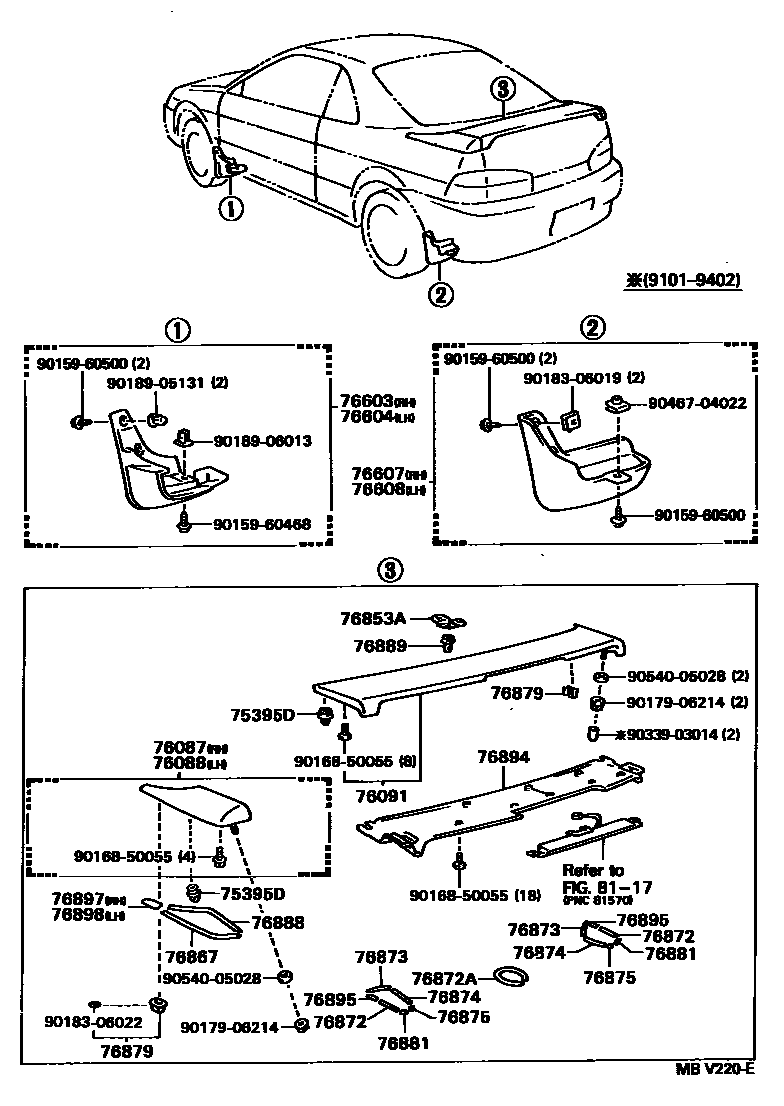

MUDGUARD & SPOILER
75395DCLIP, OUTSIDE MOULDING, NO.1
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
76091SPOILER SUB-ASSY, REAR UPPER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76853ARETAINER, FRONT SPOILER, UPPER NO.1
76867RETAINER, REAR SPOILER SIDE, RH
sub90999-91056
76872PROTECTOR, REAR SPOILER, NO.1
sub90999-91054
76872APROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
sub90999-91053
76874PROTECTOR, REAR SPOILER, NO.3
sub90999-91054
76875PROTECTOR, REAR SPOILER, NO.4
sub90999-91053
76879CLIP, REAR SPOILER, NO.1
RH,LH
CTR
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
sub90999-91053
76889CLIP, REAR SPOILER, NO.2
76894COVER, REAR SPOILER, LH
76895PROTECTOR, REAR SPOILER, NO.5
sub90999-91053
76897PROTECTOR, REAR SPOILER, SIDE RH
8117
9015960468
main90159-60468
9015960500
main90159-60500
9016850055
main90168-50055
9017906214
main90179-06214
9018306019
main90183-06019
9018306022
main90183-06022
9018905131
main90189-05131
9018906013
main90189-06013
9033903014
main90339-03014
9046704022
main90467-04022
9054005028
main90540-05028
35 parts on this diagram · 1 diagram in section
