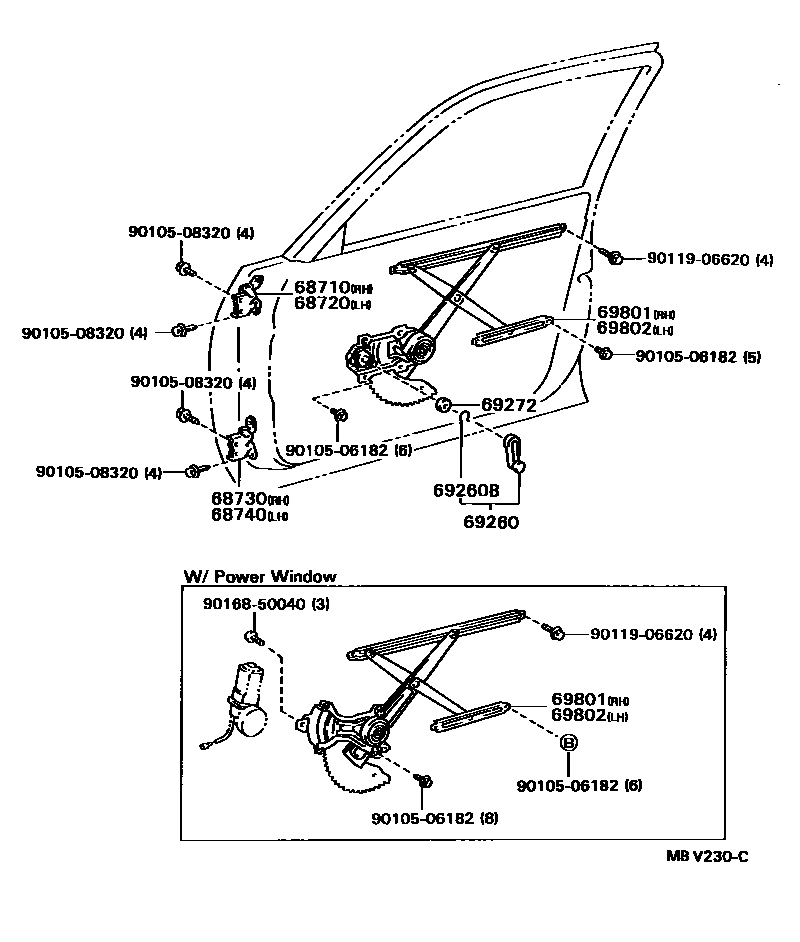

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16040iEL44199101-199208

sub68710-16050

main68710-16041iEL44199406-199508

main68710-16050iEL44199208-199406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16040iEL44199101-199208

sub68720-16050

main68720-16041iEL44199406-199508

main68720-16050iEL44199208-199406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16050iEL44199101-199403

sub68730-16051

main68730-16051iEL44199403-199508

main68730-16070iEL44199208-199210

sub68730-16050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16050iEL44199101-199403

sub68740-16051

main68740-16051iEL44199403-199508

main68740-16070iEL44199208-199210

sub68740-16050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-16010-01iEL44..ALPHA199101-199212

BLACK,TRIM2#

sub69260-16010

main69260-16010-22iEL44..ALPHA199212-199508

BLACK,TRIM2#

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iEL44..ALPHA199101-199508

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iEL44..ALPHA199101-199508

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16040iEL44..BETA199101-199208

main69801-16041iEL44..ALPHA199404-199409

main69801-16041iEL44..ALPHA199208-199508

main69801-16041iEL44..BETA199208-199508

main69810-16100iEL44..ALPHA199101-199208

main69810-16101iEL44..ALPHA199208-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16040iEL44..BETA199101-199208

main69802-16041iEL44..ALPHA199404-199409

main69802-16041iEL44..ALPHA199208-199508

main69802-16041iEL44..BETA199208-199508

main69820-16100iEL44..ALPHA199101-199208

main69820-16101iEL44..ALPHA199208-199508

9010506182

main90105-06182

9010508320

main90105-08320

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
