ROOF HEADLINING & SILENCER PAD

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-16040-01iEL44199101-199212

BLACK,TRIM2#

sub63305-16040

main63305-16040-22iEL44199212-199508

BLACK,TRIM2#

sub63305-16040

63306TRIM SUB-ASSY, SUNSHADE

main63350-16010-03iEL44199101-199212

GRAY,TRIM2#

sub63350-16010

main63350-16010-S3iEL44199212-199508

LI.GRAY,TRIM2#

sub63350-16010

63310HEADLINING ASSY, ROOF

main63311-16320-03iEL44199101-199212

GRAY,TRIM2#

sub63311-16320

main63311-16320-B0iEL44199212-199508

LI.GRAY,TRIM2#

sub63311-16320

main63311-16330-03iEL44199101-199212

sub63311-16330

main63311-16330-S3iEL44199212-199508

sub63311-16330

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-16040-B0iEL44199101-199508

GRAY,TRIM2#

63330LOCK ASSY, SUNSHADE TRIM

main63330-16010iEL44199104-199508

main63330-89101iEL44199101-199104

63338CSTOPPER, SUNSHADE LOCK, NO.2

main63338-12010iEL44199101-199508

63340HANDLE ASSY, SUNSHADE TRIM LOCK

main63340-17010-13iEL44199101-199104

GRAY,TRIM2#

main64251-16010-03iEL44199104-199212

GRAY,TRIM2#

sub64251-16010

main64251-16010-S3iEL44199212-199508

LI.GRAY,TRIM2#

sub64251-16010

9052001002

main90520-01002

9322915008

main93229-15008

9354014010

main93540-14010

9616000400

main96160-00400

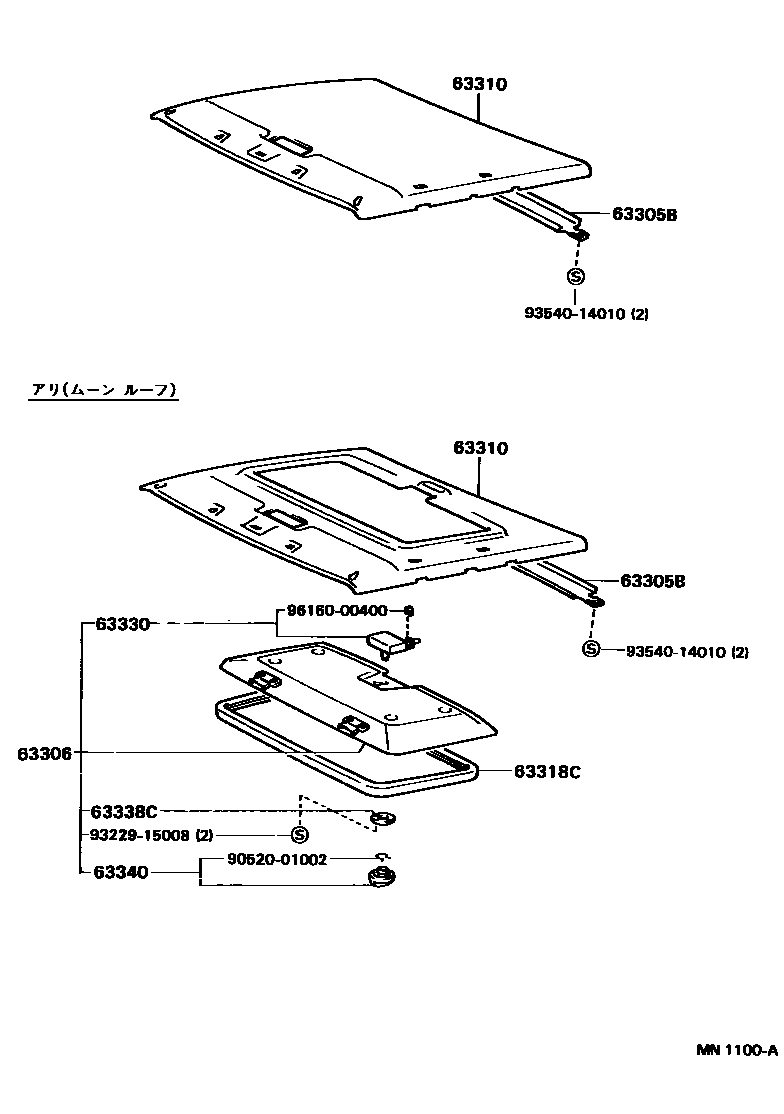

11 parts on this diagram · 1 diagram in section
