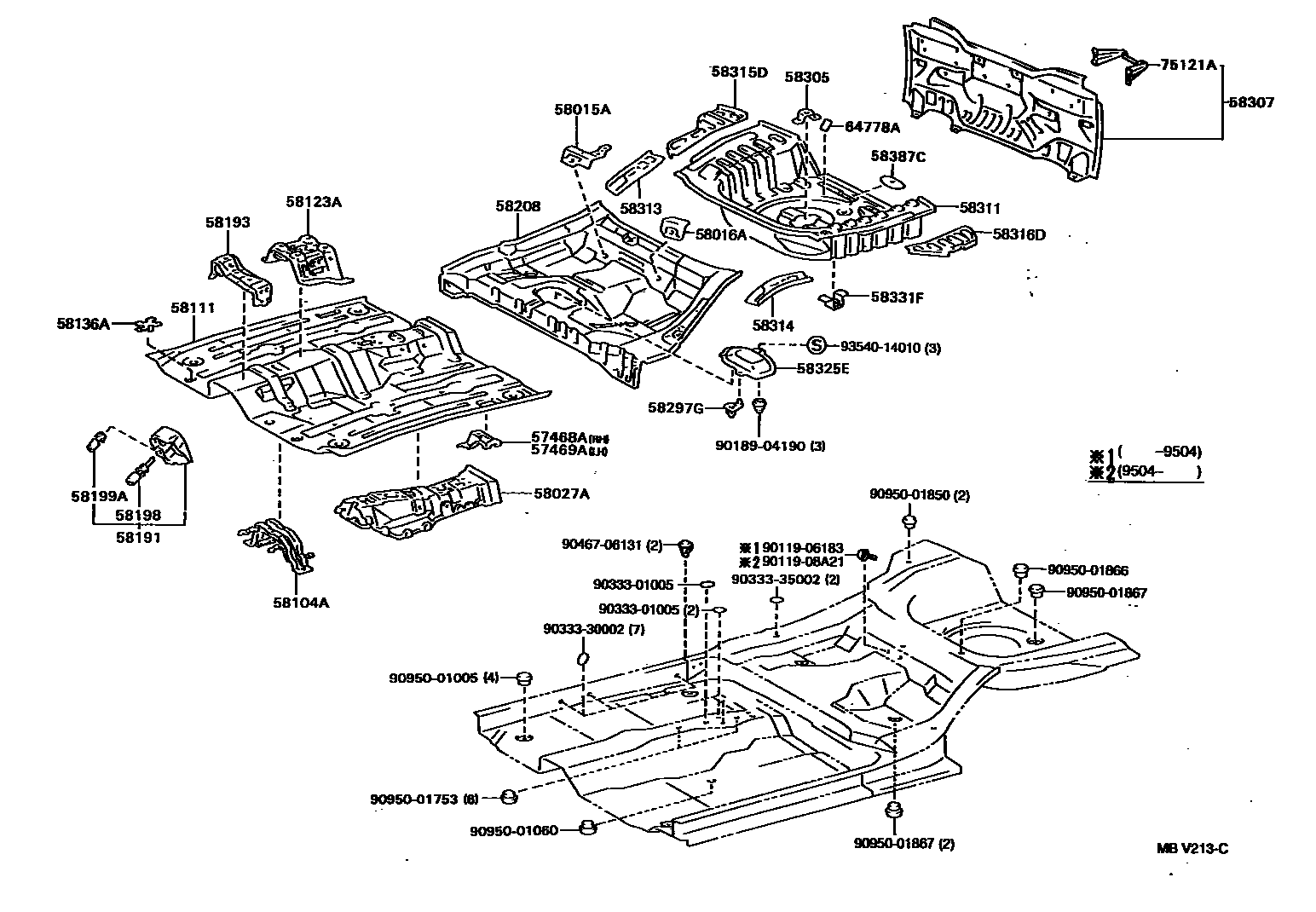

FLOOR PAN & LOWER BACK PANEL

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10030iEL44199101-199508

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10030iEL44199101-199508

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10020iEL44199101-199504

main58015-16050iEL44199504-199508

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEL44199101-199508

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16030iEL44199101-199212

main58027-16060iEL44199212-199401

sub58027-16061

sub90269-03067

main58027-16061iEL44199401-199508

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10040iEL44199101-199104

sub58104-16010

main58104-16010iEL44199104-199401

sub58104-16011

sub90269-03067

main58104-16011iEL44199401-199508

58111PAN, FRONT FLOOR

main58111-16040iEL44199101-199212

sub58111-16080

main58111-16080iEL44199212-199508

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10040iEL44199101-199404

sub58123-10050

main58123-10050iEL44199404-199508

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iEL44199409-199508

58191FOOTREST, FRONT FLOOR

main58191-16070iEL44199101-199508

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10030iEL44199101-199212

main58193-16040iEL44199212-199508

58198CLIP, FOOTREST

main58198-16030iEL44199101-199508

58199ACLIP, FOOTREST, NO.2

main58199-16020iEL44199101-199508

58208PAN, CENTER FLOOR

main58211-10140iEL44199101-199409

sub58211-10142

sub58313-16030

sub58314-16090

main58211-10142iEL44199409-199508

58297GRETAINER, FLOOR CLAMP

main58297-10010iEL44199101-199409

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL44199101-199508

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16380iEL44199101-199309

sub58307-16381

main58307-16381iEL44199309-199409

sub58307-16382

sub90167-70001

main58307-16382iEL44199409-199508

sub58307-16392

sub75122-16030

58311PAN, REAR FLOOR

main58311-10190iEL44199101-199403

sub58311-16150

main58311-10192iEL44199409-199508

sub58311-10193

main58311-16150iEL44199403-199405

sub58311-16151

main58311-16151iEL44199405-199409

sub58311-16152

58313PANEL, REAR FLOOR SIDE, RH

main58313-16030iEL44199409-199508

58314PANEL, REAR FLOOR SIDE, LH

main58314-16090iEL44199409-199508

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-16010iEL44199101-199508

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-16060iEL44199101-199508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10020iEL44199101-199409

sub58325-10021

main58325-10021iEL44199409-199508

sub58031-16020

sub82819-32200

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010iEL44199101-199401

main58331-10011iEL44199401-199508

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEL44199101-199508

64778APROTECTOR, SPARE WHEEL

main64778-16020iEL44199101-199508

75121ABRACKET, REAR LICENSE PLATE

main75122-16030iEL44199101-199508

9011906183

main90119-06183

9011908A21

main90119-08A21

9018904190

main90189-04190

9033301005

main90333-01005

9033330002

main90333-30002

9033335002

main90333-35002

9046706131

main90467-06131

9095001005

main90950-01005

9095001060

main90950-01060

9095001753

main90950-01753

9095001850

main90950-01850

9095001866

main90950-01866

9095001867

main90950-01867

9354014010

main93540-14010

41 parts on this diagram · 1 diagram in section
