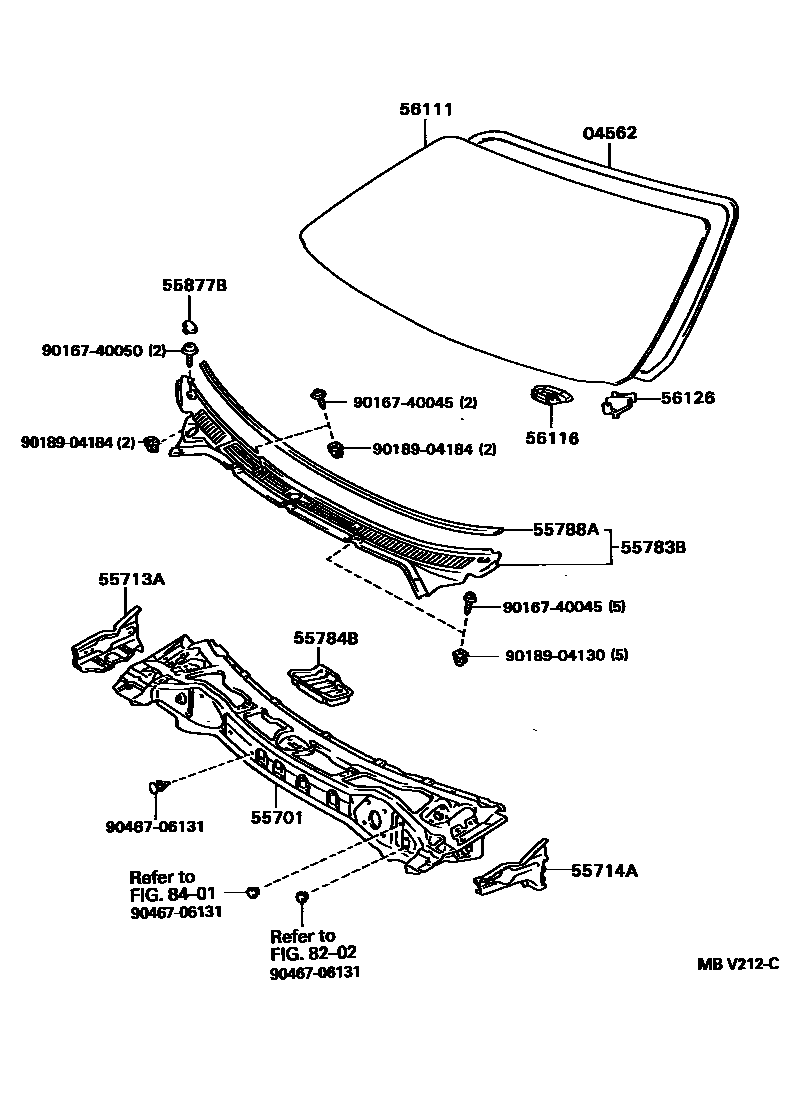

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEL44199101-199508

55701PANEL SUB-ASSY, COWL

main55700-16190iEL44199101-199409

sub55700-16191

sub89629-16070

main55700-16191iEL44199409-199508

55713APANEL, COWL TOP SIDE, RH

main55713-16050iEL44199101-199409

sub55713-16060

main55713-16060iEL44199409-199508

55714APANEL, COWL TOP SIDE, LH

main55714-16050iEL44199101-199409

sub55714-16060

main55714-16060iEL44199409-199508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16080iEL44199101-199508

main55708-16090iEL44199101-199508

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16040iEL44199101-199508

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16080iEL44199101-199508

55877BCOVER, COWL VENT, RH

main55877-16020iEL44199101-199508

56111GLASS, WINDSHIELD

main56111-16300iEL44..BETA199212-199409

main56111-16350iEL44..ALPHA199101-199208

sub56111-16351

main56111-16351iEL44..ALPHA199208-199409

main56111-16352iEL44199409-199508

main56111-16361iEL44..BETA199101-199208

sub56111-16362

main56111-16362iEL44..BETA199208-199409

56116SPACER, WINDSHIELD GLASS

main56116-16040iEL44199101-199308

sub56116-16041

main56116-16041iEL44199308-199508

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-16030iEL44199101-199203

sub56126-16031

main56126-16031iEL44199203-199308

sub56126-16032

main56126-16032iEL44199308-199508

main56127-16020iEL44199101-199203

sub56127-16021

main56127-16021iEL44199203-199308

sub56127-16022

main56127-16022iEL44199308-199508

8202

8401

9016740045

main90167-40045

9016740050

main90167-40050

9018904130

main90189-04130

9018904184

main90189-04184

9046706131

main90467-06131

18 parts on this diagram · 1 diagram in section
