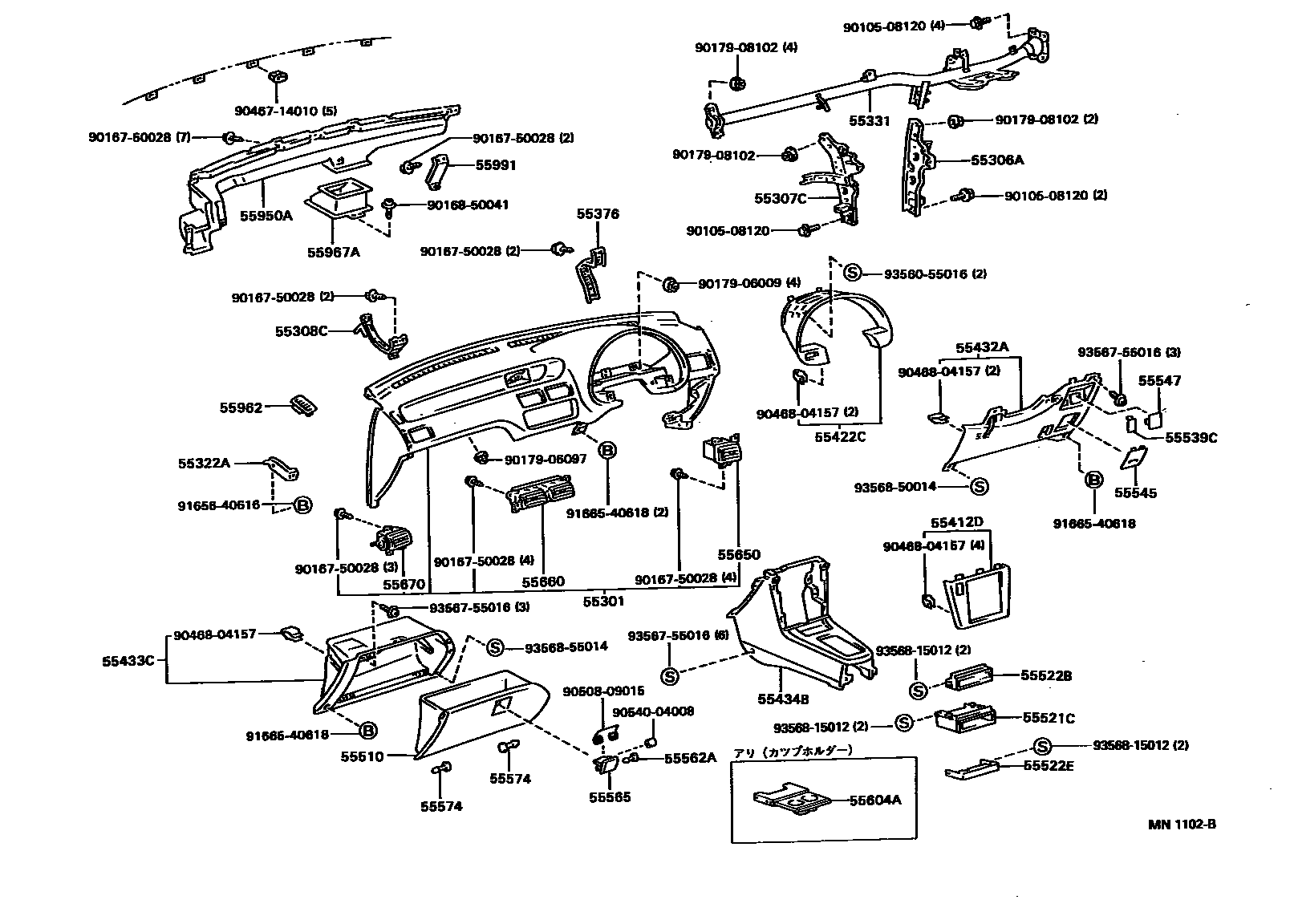

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16040-01iEL44..ALPHA199101-199212

BLACK,TRIM2#

main55301-16040-22iEL44199308-199508

BLACK,TRIM2#

main55301-16050-01iEL44..BETA199101-199212

BLACK,TRIM2#

main55301-16050-22iEL44..BETA199212-199308

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16080iEL44199101-199508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16080iEL44199101-199508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16040iEL44199101-199508

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-16040iEL44199101-199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16090iEL44199101-199508

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16040iEL44199101-199508

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16060-01iEL44199101-199212

BLACK,TRIM2#

main55412-16060-22iEL44199212-199508

BLACK,TRIM2#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16040iEL44199101-199508

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16130-01iEL44199101-199212

BLACK,TRIM2#

main55432-16130-22iEL44199212-199508

BLACK,TRIM2#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-16010-01iEL44199101-199212

BLACK,TRIM2#

main55433-16010-C0iEL44199212-199508

BLACK,TRIM2#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16010-01iEL44199101-199212

BLACK,TRIM2#

main55434-16010-22iEL44199212-199508

BLACK,TRIM2#

main55434-16020-01iEL44199101-199208

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16090-01iEL44199101-199212

BLACK,TRIM2#

main55550-16090-C0iEL44199212-199508

BLACK,TRIM2#

55521CCOVER, STEREO OPENING

main55521-16030iEL44199101-199508

55522BCOVER, RADIO TUNER OPENING

main55522-32010iEL44199101-199508

sub55522-20070

55522ECOVER, CUP HOLDER OPENING

main55522-16030iEL44199101-199308

55539CCOVER, SPARE SWITCH HOLE

main55539-16040-01iEL44199101-199212

BLACK,TRIM2#

main55539-16040-22iEL44199212-199508

BLACK,TRIM2#

55545COVER, FUSE BOX OPENING

main55545-16120-01iEL44199101-199212

BLACK,TRIM2#

main55545-16120-22iEL44199212-199508

BLACK,TRIM2#

main55545-16160-01iEL44..BETA199101-199212

main55545-16160-22iEL44..BETA199212-199409

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-11iEL44199101-199212

BLACK,TRIM2#

main55547-20030-22iEL44199212-199409

BLACK,TRIM2#

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-10010iEL44199101-199508

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-16010-01iEL44199101-199212

BLACK,TRIM2#

sub55565-10010

main55565-16010-C0iEL44199212-199508

BLACK,TRIM2#

sub55565-10010

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iEL44199101-199508

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-16030iEL44199101-199208

main55604-16031iEL44199208-199305

main55604-16032iEL44..ALPHA199404-199409

main55604-16033iEL44199411-199504

main55604-16034iEL44199504-199508

sub55620-12070

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16060-01iEL44199101-199212

BLACK,TRIM2#

main55650-16060-22iEL44199212-199508

BLACK,TRIM2#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16040-01iEL44199101-199212

BLACK,TRIM2#

main55660-16040-22iEL44199212-199508

BLACK,TRIM2#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16040-01iEL44199101-199212

BLACK,TRIM2#

main55670-16040-22iEL44199212-199508

BLACK,TRIM2#

55950ANOZZLE ASSY, DEFROSTER

main55950-16040iEL44199101-199508

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16020-01iEL44199101-199212

BLACK,TRIM2#

main55962-16020-22iEL44199212-199508

BLACK,TRIM2#

55967ANOZZLE, DEFROSTER, LOWER

main55967-16030iEL44199101-199508

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-16010iEL44199101-199508

9010508120

main90105-08120

9016750028

main90167-50028

9016850041

main90168-50041

9017906009

main90179-06009

9017906097

main90179-06097

9017908102

main90179-08102

9046714010

main90467-14010

9046804157

main90468-04157

9050809015

main90508-09015

9054004008

main90540-04008

9165640616

main91656-40616

9166540618

main91665-40618

9356055016

main93560-55016

9356755016

main93567-55016

9356815012

main93568-15012

9356850014

main93568-50014

9356855014

main93568-55014

47 parts on this diagram · 1 diagram in section
