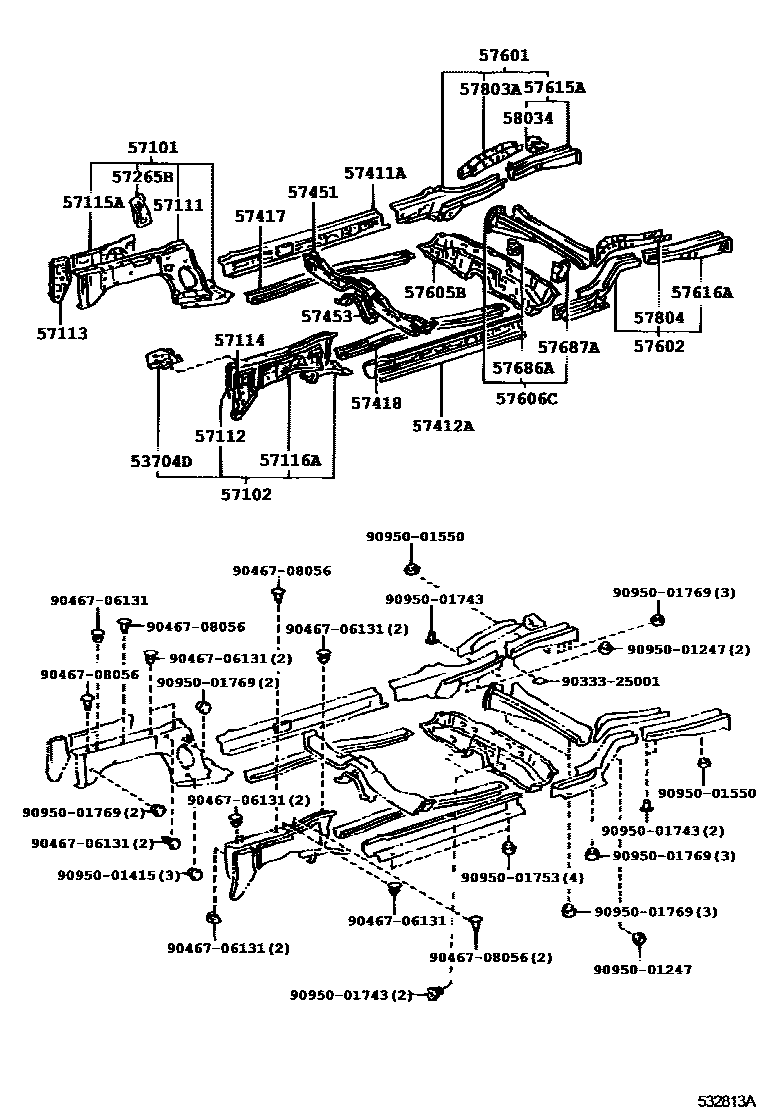

FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57265BBRACKET, ENGINE MOUNTING, RH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
9033325001
main90333-25001
9046706131
main90467-06131
9046708056
main90467-08056
9095001247
main90950-01247
9095001415
main90950-01415
9095001550
main90950-01550
9095001743
main90950-01743
9095001753
main90950-01753
9095001769
main90950-01769
36 parts on this diagram · 1 diagram in section
