FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-10030iEL44199101-199409

main48044-16030iEL44199409-199508

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-10010iEL44..BETA199101-199409

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iEL44..BETA199101-199409

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iEL44..BETA199101-199409

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iEL44..BETA199101-199409

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-10020iEL44..BETA199101-199409

48131SPRING, FRONT COIL, RH

main48131-16530iEL44..MTM..BETA;EL44..ATM..ALPHA199101-199508

main48131-16640iEL44..ATM..ALPHA199101-199212

sub48131-16530

main48131-16660iEL44..ATM..BETA199212-199508

sub48131-16530

main48131-1G370iEL44..MTM..ALPHA199101-199212

main48131-1G400iEL44..MTM..BETA199101-199508

48132SPRING, FRONT COIL, LH

main48131-16530iEL44..ATM..BETA199101-199508

main48131-16640iEL44..ATM..ALPHA199101-199212

sub48131-16530

main48131-16660iEL44..ATM..BETA199212-199508

sub48131-16530

main48131-1G370iEL44..MTM..ALPHA199101-199212

main48131-1G400iEL44..MTM..BETA199101-199508

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16040iEL44199101-199508

48331BUMPER, FRONT SPRING, NO.1

main48331-16060iEL44199101-199508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16360iEL44199101-199409

sub48510-19656

sub90105-15012

main48510-16380iEL44..BETA199101-199409

main48510-19405iEL44199409-199508

sub48510-19705

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-16140iEL44199101-199409

sub48520-19346

sub90105-15012

main48520-16160iEL44..BETA199101-199409

main48520-19125iEL44199409-199508

sub48520-19385

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08206iEL44199101-199508

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-10121iEL44..BETA199101-199409

main48609-16160iEL44199101-199409

main48609-16260iEL44199409-199508

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iEL44..BETA199101-199409

main94182-11400iEL44199101-199508

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEL44199101-199508

48684COVER, BEARING DUST

main48684-10010iEL44199101-199508

48811BAR, STABILIZER, FRONT

main48811-16220iEL44199101-199508

sub48811-16221

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14130iEL44199101-199508

48817CUSHION, FRONT STABILIZER

main48817-10020iEL44199101-199508

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iEL44199101-199508

48819ABOLT, FRONT STABILIZER

main48819-10010iEL44199101-199508

48824BRACKET, STABILIZER, FRONT

main48824-20040iEL44199101-199508

9161160822

main91611-60822

91612B0822

main91612-B0822

9418210800

main94182-10800

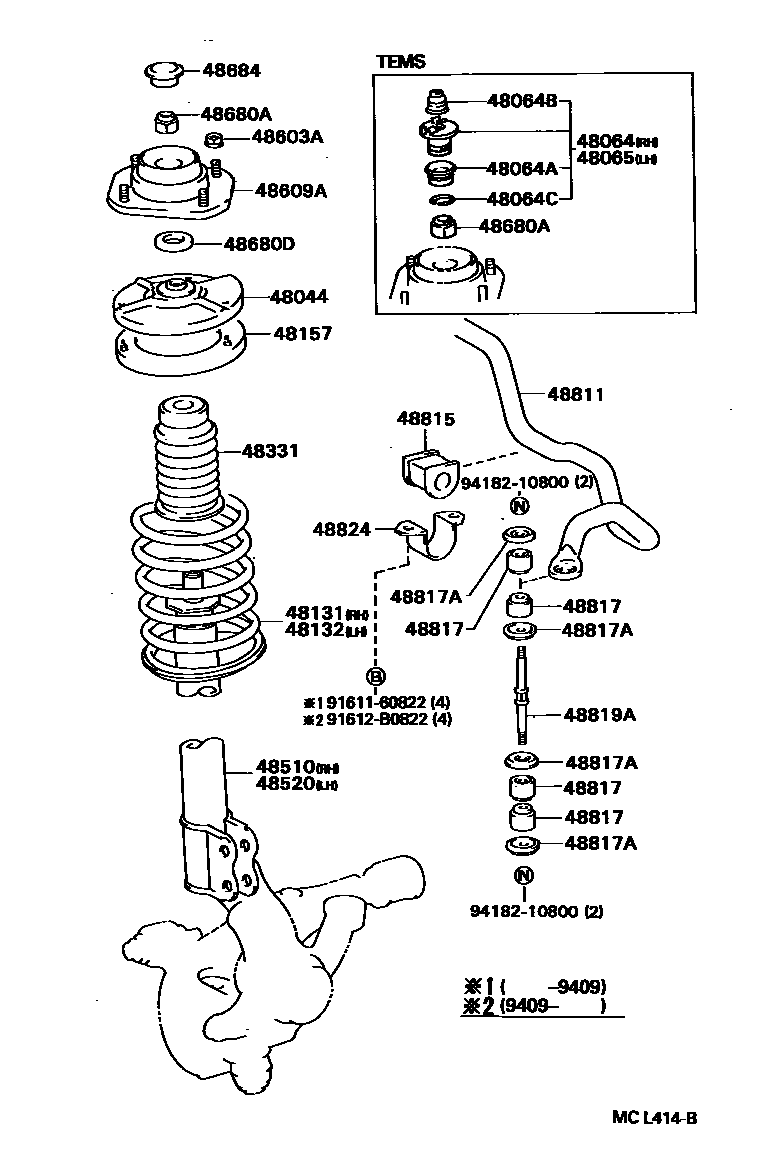

26 parts on this diagram · 1 diagram in section
