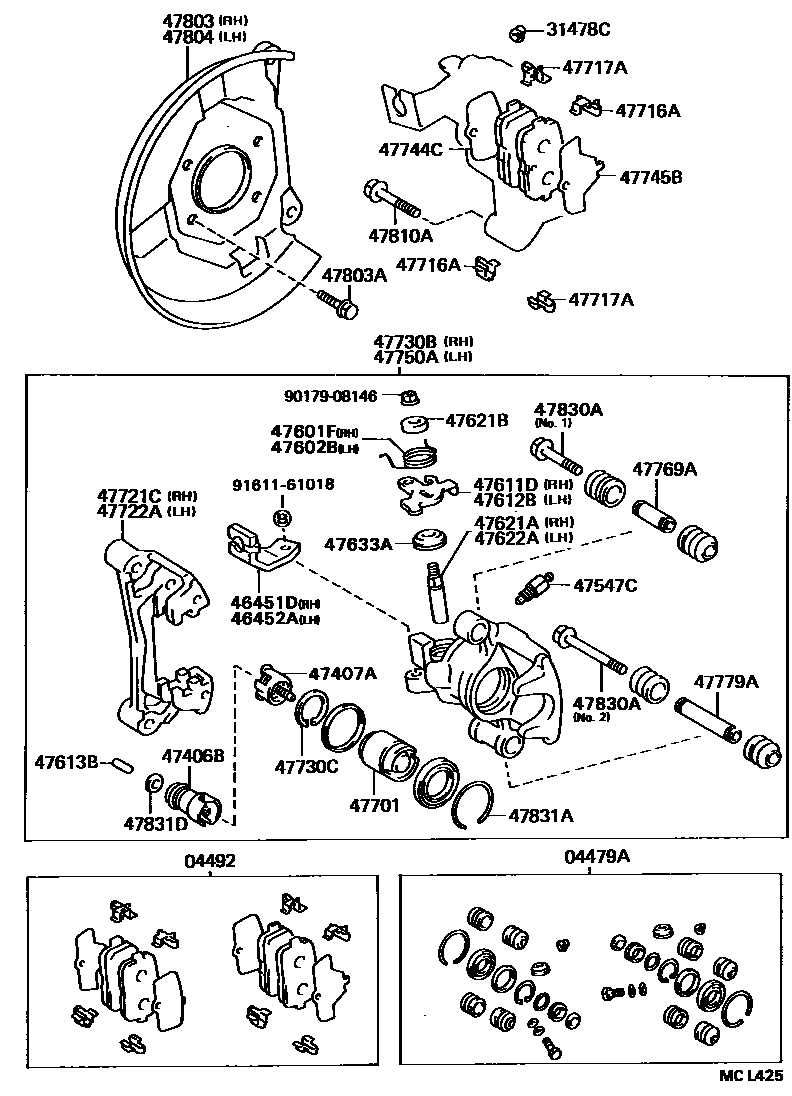

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-16040iEL44..BETA¥3,010199101-199508

04492PAD KIT, DISC BRAKE, REAR

main04492-18010iEL44..BETA¥7,900199101-199505

sub04466-18010¥7,100

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iEL44..BETA¥160199101-199508

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-10011iEL44..BETA¥1,470199101-199508

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-10011iEL44..BETA¥1,470199101-199508

47406BCLUTCH SUB-ASSY, REAR DISC BRAKE

main47406-16010iEL44..BETA¥1,240199101-199508

47407AADJUSTER ASSY, REAR DISC BRAKE PAD

main47407-16010iEL44..BETA¥600199101-199508

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-10060iEL44..BETA¥330199101-199508

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-29018iEL44..BETA¥260199101-199508

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-29019iEL44..BETA¥260199101-199508

47611DLEVER, PARKING BRAKE DISC, RH

main47611-10040iEL44..BETA¥520199101-199508

47612BLEVER, PARKING BRAKE DISC, LH

main47612-10040iEL44..BETA¥520199101-199508

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-16010iEL44..BETA¥390199101-199508

47621ASHAFT, PARKING LEVER, RH

main47621-16010iEL44..BETA¥600199101-199508

47621BSPACER(FOR PARKING LEVER SHAFT)

main90560-08056iEL44..BETA¥240199101-199508

47622ASHAFT, PARKING LEVER, LH

main47622-16010iEL44..BETA¥600199101-199508

47633ABOOT, PARKING BRAKE CRANK

main47633-16010iEL44..BETA¥390199101-199508

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-16010iEL44..BETA¥3,000199101-199508

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-16010iEL44..BETA¥320199101-199508

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-16010iEL44..BETA¥320199101-199508

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-10020iEL44..BETA¥5,800199101-199508

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-10020iEL44..BETA¥5,800199101-199508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-10120iEL44..BETA¥41,800199101-199508

47730CRING, HOLE SNAP(FOR REAR DISC BRAKE CYLINDER)

main90521-32003iEL44..BETA¥180199101-199508

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-16020iEL44..BETA¥270199101-199508

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-16020iEL44..BETA¥270199101-199508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-10120iEL44..BETA¥41,800199101-199508

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-16020iEL44..BETA¥550199101-199508

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32010iEL44..BETA¥880199101-199508

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-10010iEL44..BETA¥6,400199101-199508

main47803-10010iEL44..BETA¥6,400199212-199409

main47803-10020iEL44..BETA¥6,300199101-199508

47803ABOLT(FOR REAR DISC BRAKE DUST COVER)

main90119-10447iEL44..BETA¥160199101-199508

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-10010iEL44..BETA¥6,400199101-199508

main47804-10010iEL44..BETA¥6,400199212-199409

main47804-10020iEL44..BETA¥6,300199101-199508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10260iEL44..BETA¥210199101-199508

47830ABOLT(FOR REAR DISC BRAKE)

main90119-09011iEL44..BETA¥240199212-199508

*9-1.25PX61-25

main90119-09011iEL44..BETA¥240199101-199212

main90119-09012iEL44..BETA¥260199101-199212

main90119-09012iEL44..BETA¥260199212-199508

*9-1.25PX93-25

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002iEL44..BETA¥240199101-199508

47831DRING(FOR REAR DISC BRAKE)

main90562-04014iEL44..BETA¥130199101-199508

9017908146

main90179-08146¥180

9161161018

main91611-61018¥130

38 parts on this diagram · 2 diagrams in section
