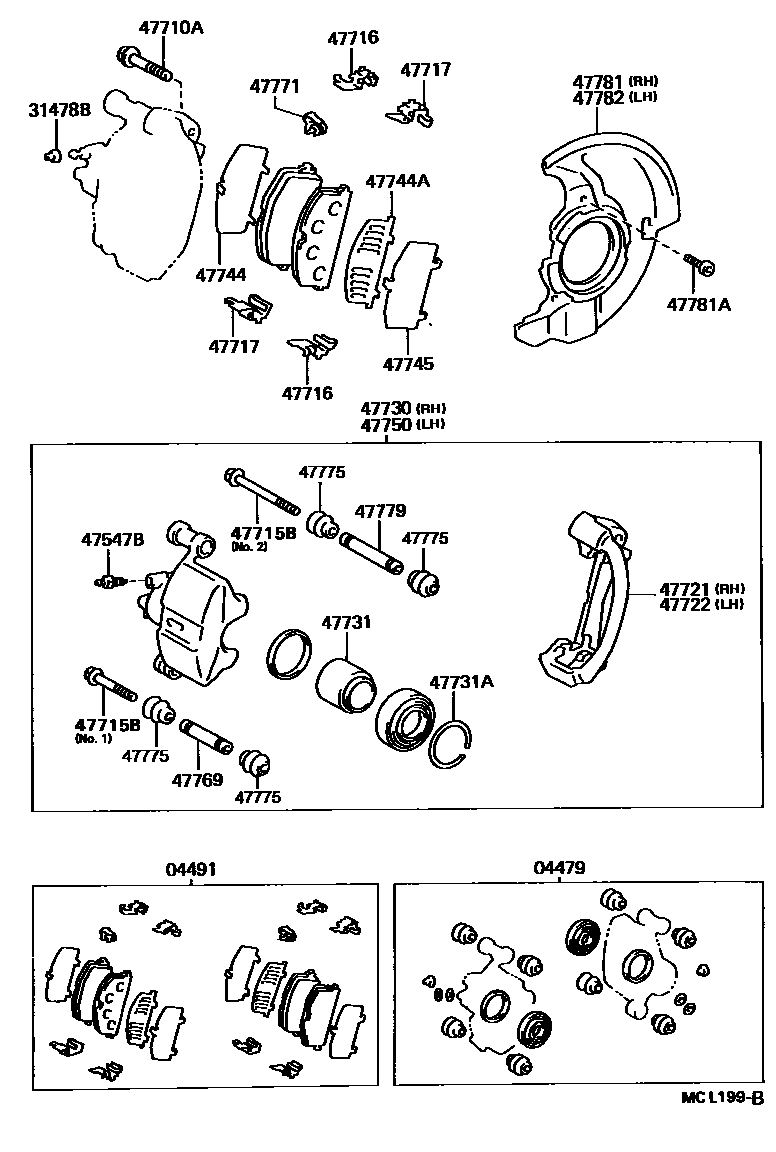

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEL44199101-199508

04491PAD KIT, DISC BRAKE, FRONT

main04491-10240iEL44199101-199405

sub04491-10241

main04491-10241iEL44199405-199505

sub04465-10040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEL44199101-199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iEL44199101-199508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iEL44199101-199508

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003iEL44199212-199508

main90119-09003iEL44199101-199212

NO. 1

main90119-09004iEL44199212-199508

main90119-09004iEL44199101-199212

NO. 2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32031iEL44199101-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32031iEL44199101-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-10010iEL44199101-199508

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-10010iEL44199101-199508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10110iEL44199101-199409

sub47730-10111

main47730-10111iEL44199409-199508

47731PISTON, FRONT DISC BRAKE

main47731-12150iEL44199101-199508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEL44199101-199508

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iEL44199101-199508

sub47744-32010

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040iEL44199101-199508

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040iEL44199101-199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10110iEL44199101-199409

sub47750-10111

main47750-10111iEL44199409-199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEL44199101-199508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iEL44199101-199508

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010iEL44199507-199508

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iEL44199101-199508

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10070iEL44199101-199508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iEL44199101-199508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10070iEL44199101-199508

24 parts on this diagram · 2 diagrams in section
