POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL44199101-199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16050iEL44199101-199508

44410TUBE ASSY, PRESSURE FEED

main44410-16130iEL44..ALPHA199101-199110

main44410-16131iEL44199409-199508

main44410-16180iEL44..BETA199101-199110

main44410-16181iEL44..BETA199110-199409

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL44199208-199212

main90401-16012iEL44199212-199508

main90401-16017iEL44199101-199208

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEL44199101-199508

44443BRACKET, PUMP

main44443-10030iEL44199101-199508

44446STRUT, ADJUSTING

main44446-16051iEL44199101-199508

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

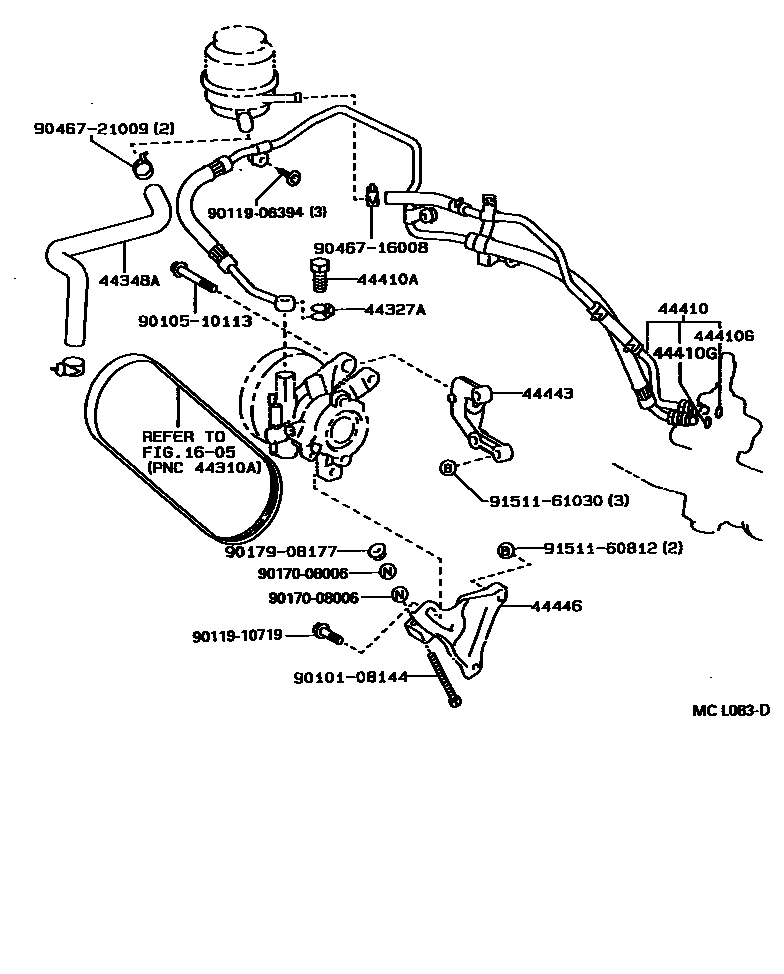

18 parts on this diagram · 1 diagram in section
