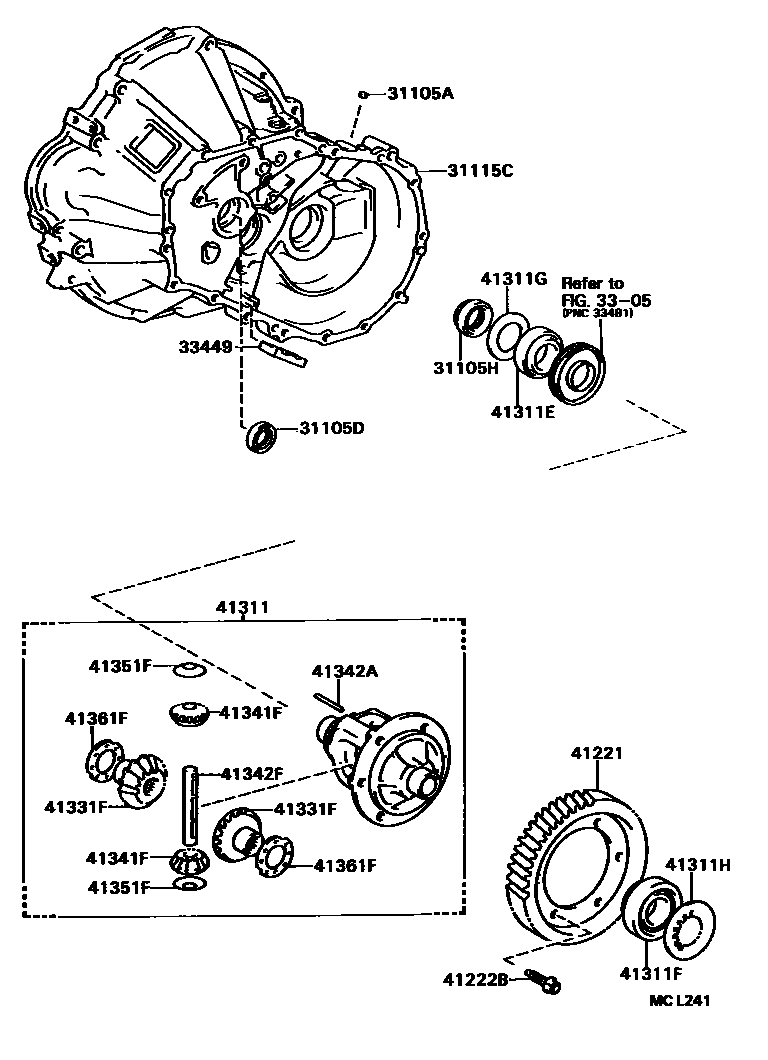

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C150,C152 0002 1A242L,A244E 0003 1C52,��(������ ����� ���������0004 1C52,��(������ ����� ���������

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iEL44..MTM199101-199508

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25016iEL44..MTM199101-199508

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iEL44..MTM199101-199108

sub90311-34016

main90311-34016iEL44..MTM199108-199508

main90311-50015iEL44..MTM..BETA199212-199508

31115CCASE, FRONT TRANSAXLE(MTM)

main31105-10021iEL44..MTM..BETA199212-199405

sub31105-16090

sub33125-12011

main31105-16090iEL44..MTM..BETA199405-199508

main31115-12060iEL44..MTM199101-199405

sub31115-16050

sub33125-12011

main31115-16050iEL44..MTM199405-199508

sub31115-16051

3305

33449MAGNET, TRANSMISSION

main33449-12020iEL44..MTM199101-199508

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10201iEL44..MTM..ALPHA199101-199508

sub41221-52300

main41221-10231iEL44..MTM..BETA199101-199508

sub41221-52330

main41221-12340iEL44..MTM..BETA199212-199508

sub41221-52270

main41221-20230iEL44..ATM199101-199508

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iEL44..ATM199101-199508

main90101-11353iEL44..MTM..BETA199212-199501

main90105-11040iEL44..MTM..BETA199501-199508

main90105-12100iEL44..MTM199101-199508

41311CASE, FRONT DIFFERENTIAL

main41301-10060iEL44..MTM199101-199508

sub41301-10061

main41301-10070iEL44..MTM..BETA199212-199412

sub41301-10071

sub90105-11040

main41301-10071iEL44..MTM..BETA199412-199508

main41301-17021iEL44..ATM199101-199508

sub41301-20150

sub90366-42001

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iEL44..MTM199101-199508

main90366-55045iEL44..MTM..BETA199212-199508

main90368-38002iEL44..ATM199212-199508

main90368-38006iEL44..ATM199101-199212

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90368-38010iEL44199101-199508

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41010iEL44..ATM199101-199508

main90201-41012iEL44..MTM199408-199508

main90201-41045iEL44..MTM199101-199408

sub90201-41012

main90201-58001iEL44..MTM..BETA199212-199508

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iEL44..ATM199101-199508

main90201-41025iEL44..ATM199101-199508

main90201-41026iEL44..ATM199101-199508

main90201-41027iEL44..ATM199101-199508

main90201-41028iEL44..ATM199101-199508

main90201-41029iEL44..ATM199101-199508

main90201-41030iEL44..ATM199101-199508

main90201-41031iEL44..ATM199101-199508

main90201-41032iEL44..ATM199101-199508

main90201-41033iEL44..ATM199101-199508

main90201-41034iEL44..ATM199101-199508

main90201-41035iEL44..ATM199101-199508

main90201-41036iEL44..ATM199101-199508

main90201-41039iEL44..ATM199101-199508

main90201-41040iEL44..ATM199101-199508

main90201-41041iEL44..ATM199101-199508

main90201-41042iEL44..ATM199101-199508

main90201-41043iEL44..ATM199101-199508

main90201-41044iEL44..ATM199101-199508

main90201-41046iEL44..MTM199101-199508

sub90564-41014

main90201-41047iEL44..MTM199101-199508

sub90564-41015

main90201-41048iEL44..MTM199101-199508

sub90564-41016

main90201-41049iEL44..MTM199101-199508

sub90564-41017

main90201-41050iEL44..MTM199101-199508

sub90564-41018

main90201-41051iEL44..MTM199101-199508

sub90564-41019

main90201-41052iEL44..MTM199101-199508

sub90564-41020

main90201-41053iEL44..MTM199101-199508

sub90564-41021

main90201-41054iEL44..MTM199101-199508

sub90564-41022

main90201-41055iEL44..MTM199101-199508

sub90564-41023

main90201-41056iEL44..MTM199101-199508

sub90564-41024

main90201-41057iEL44..MTM199101-199508

sub90564-41025

main90201-41058iEL44..MTM199101-199508

sub90564-41026

main90201-41059iEL44..MTM199101-199508

sub90564-41027

main90201-41060iEL44..MTM199101-199508

sub90564-41028

main90201-41061iEL44..MTM199101-199508

sub90564-41029

main90201-41062iEL44..MTM199101-199508

sub90564-41030

main90201-41063iEL44..MTM199101-199508

sub90564-41031

main90201-41064iEL44..MTM199101-199508

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042iEL44..MTM199101-199508

sub41331-44011

sub41331-48060

main41331-12011iEL44..ATM199101-199508

main41331-12011iEL44..MTM..BETA199212-199508

41341FPINION, FRONT DIFFERENTIAL

main41341-10030iEL44..MTM199101-199508

sub41341-44011

sub41341-48050

main41341-12030iEL44..ATM199101-199508

main41341-12030iEL44..MTM..BETA199212-199508

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iEL44..MTM199101-199508

main90250-06058iEL44..ATM199101-199508

main90250-06058iEL44..MTM..BETA199212-199508

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10040iEL44..MTM199101-199204

sub41342-10041

main41342-10041iEL44..MTM199204-199508

main41342-12020iEL44..ATM199101-199109

sub41342-12140

main41342-12140iEL44..ATM199109-199508

sub41342-20060

main41342-12140iEL44..MTM..BETA199212-199508

sub41342-20060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030iEL44..MTM199101-199508

main41351-12020iEL44..ATM199101-199508

main41351-12020iEL44..MTM..BETA199212-199508

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070iEL44..MTM199101-199508

main41361-10080iEL44..MTM199101-199508

main41361-10090iEL44..MTM199101-199508

main41361-10100iEL44..MTM199101-199508

main41361-10110iEL44..MTM199101-199508

main41361-10120iEL44..MTM199101-199508

main41361-17010iEL44..ATM199101-199508

main41361-17020iEL44..ATM199101-199508

main41361-17030iEL44..ATM199101-199508

main41361-17040iEL44..ATM199101-199508

main41361-17050iEL44..ATM199101-199508

main41361-17060iEL44..ATM199101-199508

main41361-22020iEL44..MTM..BETA199212-199508

main41361-22030iEL44..MTM..BETA199212-199508

main41361-22040iEL44..MTM..BETA199212-199508

main41361-22140iEL44..MTM..BETA199212-199508

main41361-22150iEL44..MTM..BETA199212-199508

main41361-22160iEL44..MTM..BETA199212-199508

19 parts on this diagram · 4 diagrams in section
