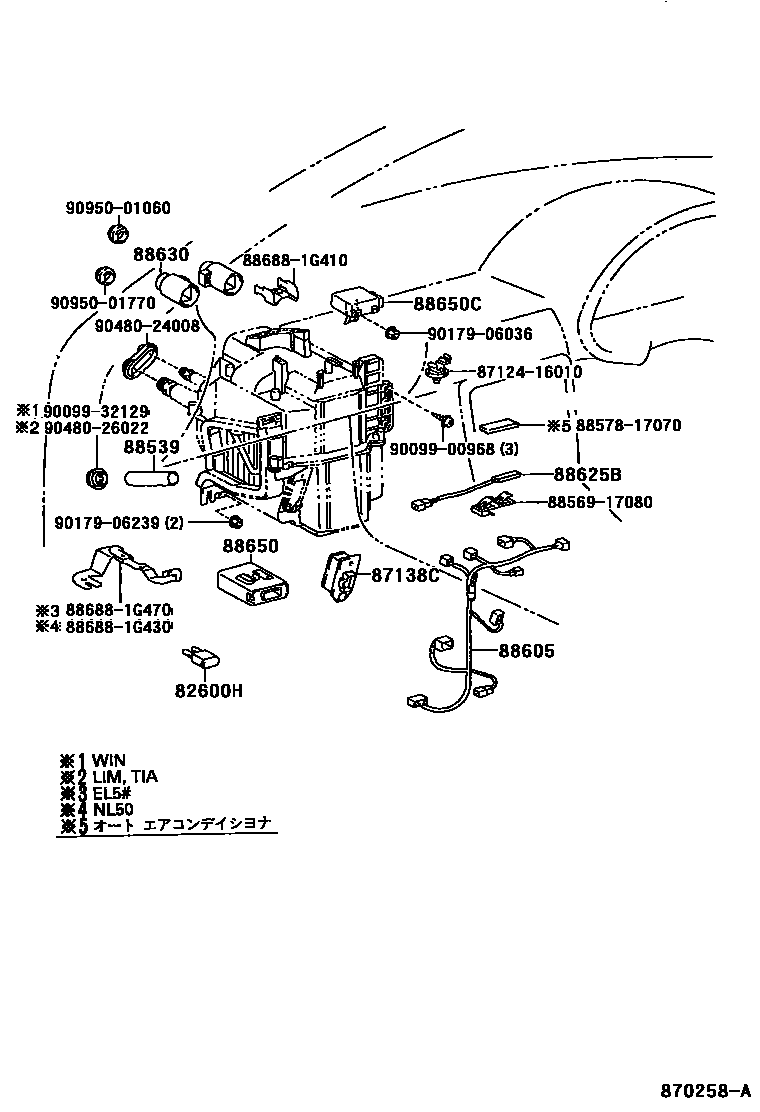

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

82600HFUSE, FUSE BLOCK

main90982-09009iEL5#,NL50199409

87138CRESISTOR, BLOWER

main87138-16140iEL5#..LIM,TIA199409-199712

main87138-16150iEL5#,NL50199409-199608

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-16040iEL5#,NL50199409

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1G870iEL5#..LIM,TIA199409-199608

main88605-1G880iEL5#199409-199608

main88605-1S020iNL50..5F199409-199608

main88605-1S030iNL50..4FC199409-199608

main88605-1S110iEL51,55..WIN199409-199608

main88605-1S120iNL50..4FC199409-199608

main88605-1S130iNL50..5F199409-199608

main88605-1S260iEL5#..LIM,TIA199608

main88605-1S290iNL50..5F199608-199712

main88605-1S300iNL50..4FC199608-199712

main88605-1S310iEL51,55..WIN199608

main88605-1S330iNL50..4FC199712

main88605-1S340iNL50..5F199712

88625THERMISTOR, COOLER, NO.1

main88625-12230iEL5#,NL50199409

88625BTHERMISTOR, COOLER NO.3

main88625-16180iEL51,55,NL50..WIN199409-199608

88630RELAY ASSY, COOLER

main88630-95702iEL5#,NL50199409

main88630-95702iEL5#..LIM,TIA199608

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10430iNL50..5F199712

main88650-10470iEL5#199608

main88650-16570iNL50..5F199409-199712

main88650-16580iNL50..4FC199409-199712

main88650-16620iEL5#199409-199608

main88650-16680iEL5#..LIM,TIA199608

main88650-16700iNL50..4FC199712

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-16610iEL5#,NL50199409-199608

8712416010CLAMP, HEATER

main87124-16010

8856917080CLAMP (FOR COOLER RELAY)

main88569-17080

8857817070PAKING, COOLER AIR DUCT

main88578-17070

886881G410BRACKET, COOLER DIAPHRAGM

main88688-1G410

886881G430BRACKET, COOLER DIAPHRAGM

main88688-1G430

886881G470BRACKET, COOLER DIAPHRAGM

main88688-1G470

9009900968

main90099-00968

9009932129

main90099-32129

9017906036

main90179-06036

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

9095001060

main90950-01060

9095001770

main90950-01770

23 parts on this diagram · 6 diagrams in section
