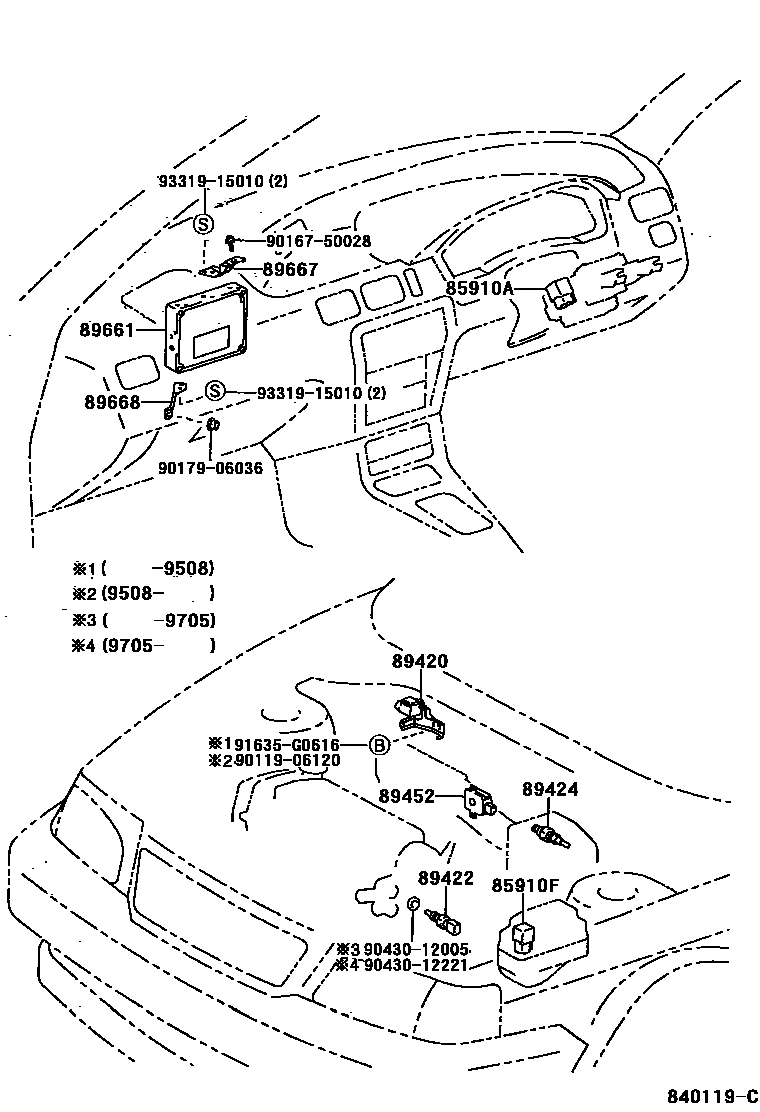

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL5#199409

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL5#199409

89420SENSOR ASSY, VACUUM

main89420-16050iEL5#199409-199712

main89420-16080iEL5#199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL5#199705

main89422-20010iEL5#199409-199705

main89422-22030iEL5#199705

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL5#199409

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL51199702-199808

sub89452-20130

main89452-16020iEL53,55199409-199712

main89452-20130iEL5#199608-199702

89661COMPUTER, ENGINE CONTROL

main89661-16280iEL51..4F199409-199608

main89661-16290iEL51..3FC199409-199608

main89661-16300iEL53..5F199409-199712

main89661-16310iEL53..4FC199409-199712

main89661-16320iEL55..5F199409-199712

main89661-16330iEL55..4FC199409-199712

main89661-16520iEL51199608-199712

main89661-16590iEL51199712

main89661-16600iEL53,55199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEL5#199409

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16060iEL5#199409-199712

main89668-16110iEL5#199712

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

91635G0616

main91635-G0616

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
