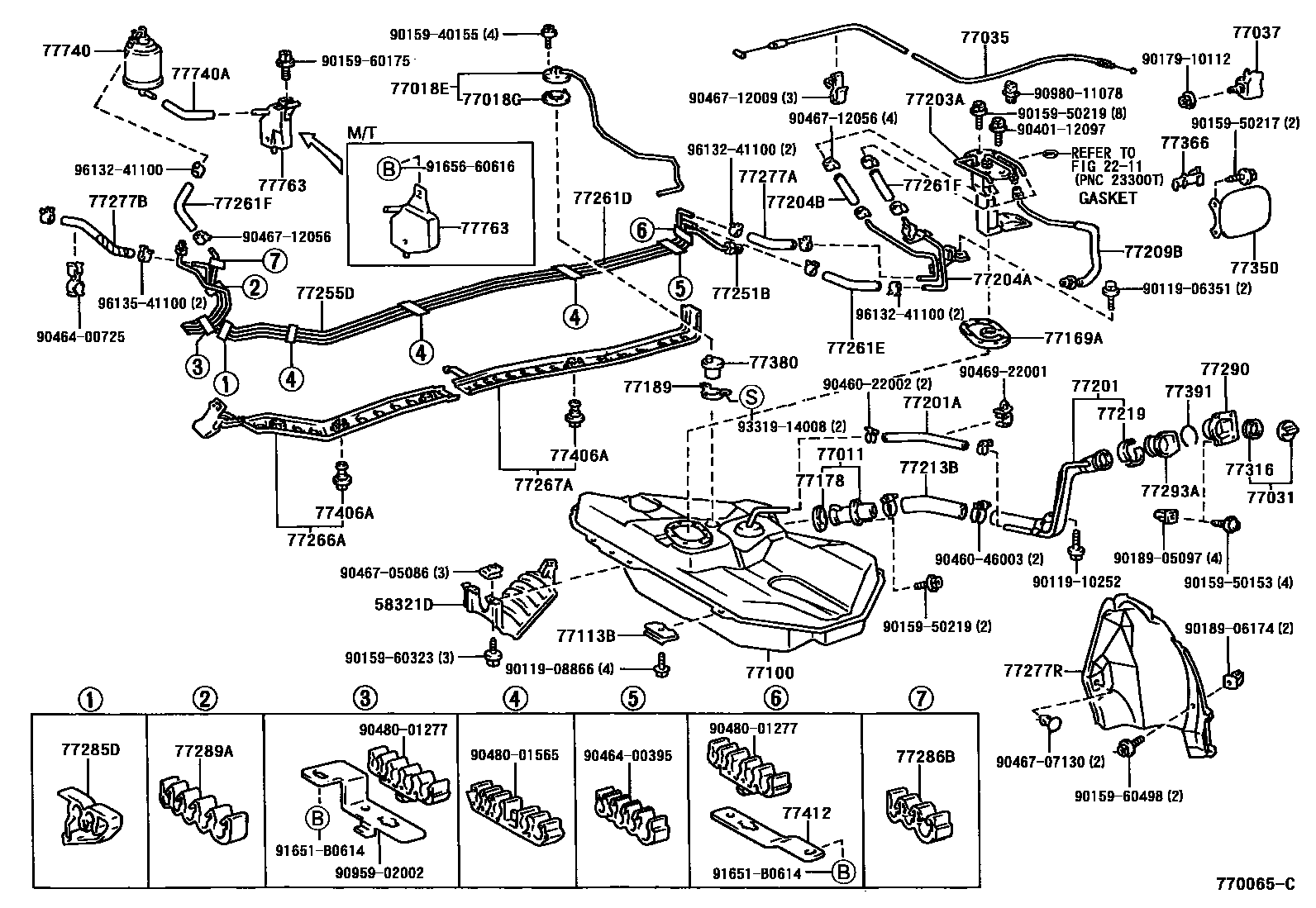

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL51,53,NL50199409

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL5#,NL50199409-199608

main77011-16100iEL51,53,NL50199608

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-10010iEL55199409-199712

main77018-16060iEL51,53,NL50199608

main77018-16070iEL55199712

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-26010iEL55199409-199608

sub77179-26011

77031CAP ASSY, FUEL TANK

main77310-12150iNL50199803

main77310-16011iEL5#199409-199803

sub77310-12140

main77310-32011iNL50199409-199803

main77310-48010iEL5#199803

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16210iEL5#,NL50199409

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-16040iEL5#,NL50199409

77100TANK ASSY, FUEL

main77001-10340iEL55199409-199712

main77001-16220iEL51,53,NL50199409-199608

main77001-16250iEL51,53,NL50199608

main77001-16300iEL55199712

77113BPLATE, FUEL TANK SIDE

main77113-10020iEL51,53,NL50199409-199608

main77113-10030iEL55199409

main77113-10040iEL55199409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iEL55199409

main77169-16030iEL51,53,NL50199409-199608

main77169-20050iEL51,53,NL50199608

main77169-60010iEL55199409

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL5#,NL50199409-199608

77189RETAINER, FUEL CHECK VALVE

main77189-18010iEL51,53,NL50199409-199608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16151iEL51,53,NL50199409

sub77201-16161

main77201-16161iEL51,53,NL50199409

main77201-16181iEL55199409

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-11024iEL55199409

main95311-13028iEL51,53,NL50199409

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-11160iEL51,53199409-199602

main23206-11180iEL55199409-199712

main23206-11440iEL51,53199602-199608

sub23206-11450

main23206-11460iEL51,53199602-199608

main77203-16040iEL51,53199608

main77203-16050iEL51,53199608

main77203-16070iEL55199712

77204ATUBE, FUEL TANK RETURN

main23204-11140iEL51,53199409-199608

main23204-11180iEL55199409-199712

main77204-16010iEL51,53199608

main77204-16020iNL50199712

main77204-16040iEL55199712

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06010iNL50199409

main95333-06020iEL51,53199608

sub95337-06020

main95334-06010iEL51,53199409-199608

main95334-06012iEL55199409

77209BTUBE SUB-ASSY, FUEL PUMP

main23091-11040iEL51,53199409-199508

sub23091-11090

main23091-11090iEL51,53199409-199608

main23091-11100iEL55199409-199712

main77209-16020iEL51,53199608

main77209-16060iEL55199712

main77209-16070iEL51,53199608

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10080iEL55199409

main77213-16080iEL51,53,NL50199409

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iEL5#,NL50199409

77251BTUBE, FUEL MAIN

main77251-16170iNL50199409

main77251-16220iEL51,53199409

main77251-16260iEL55199409

77255DTUBE, FUEL RETURN

main77255-16140iEL51,53199409

sub77255-16230

main77255-16160iNL50199409

main77255-16210iEL55199409

77261DTUBE, FUEL TANK TO CANISTER

main77261-16130iEL51,53199409-199608

main77261-16160iEL55199409-199608

main77261-16190iEL51,53199608

main77261-16200iEL55199608

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEL51,53199409

main77419-10030iEL55199409

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main77249-10050iEL5#199409-199608

main77249-10070iEL51,53199409-199608

main95333-06020iNL50199409-199608

sub95337-06020

main95333-06020iEL5#199608

sub95337-06020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL5#,NL50199409

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL5#,NL50199409

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95333-06020iEL51,53199409

sub95337-06020

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main23271-11240iEL5#199409-199509

sub23271-11241

main23271-11241iEL5#199509

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16120iEL5#,NL50199409

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL5#,NL50199409-199608

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10020iEL5#199409-199608

77289HOLDER, FUEL TANK PIPE SETTING

main77289-10011iNL50199409

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL5#,NL50199409

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16120iEL5#,NL50199409

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16110iEL5#,NL50199409

77316GASKET, FUEL TANK CAP

main77316-16010iEL5#,NL50199409

77350LID ASSY, FUEL FILLER OPENING

main77350-16190iEL5#,NL50199409

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-16010iEL5#,NL50199409

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEL5#,NL50199409-199608

77391RING, FUEL INLET BOX

main77391-14020iEL5#,NL50199409

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023iEL5#,NL50199409

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL5#,NL50199409

77740CANISTER ASSY, CHARCOAL

main77704-16170iEL5#199409-199608

main77740-16270iEL5#199608

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77754-16020iEL5#..MTM199601-199608

sub95325-07022

main77754-16040iEL5#..ATM199601-199608

sub77754-16050

main95333-08020iEL5#..ATM199409-199601

sub95337-08020

main95333-08020iEL5#..ATM199409-199601

sub95337-08020

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEL5#..ATM199409-199608

main77763-10020iEL5#..MTM199409-199608

9011906351

main90119-06351

9011908866

main90119-08866

9011910252

main90119-10252

9015940155

main90159-40155

9015950153

main90159-50153

9015950217

main90159-50217

9015950219

main90159-50219

9015960175

main90159-60175

9015960323

main90159-60323

9015960498

main90159-60498

9017910112

main90179-10112

9018905097

main90189-05097

9018906174

main90189-06174

9040112097

main90401-12097

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400725

main90464-00725

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046712056

main90467-12056

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

9098011078

main90980-11078

91651B0614

main91651-B0614

9165660616

main91656-60616

9331914008

main93319-14008

9613241100

main96132-41100

9613541100

main96135-41100

79 parts on this diagram · 3 diagrams in section
