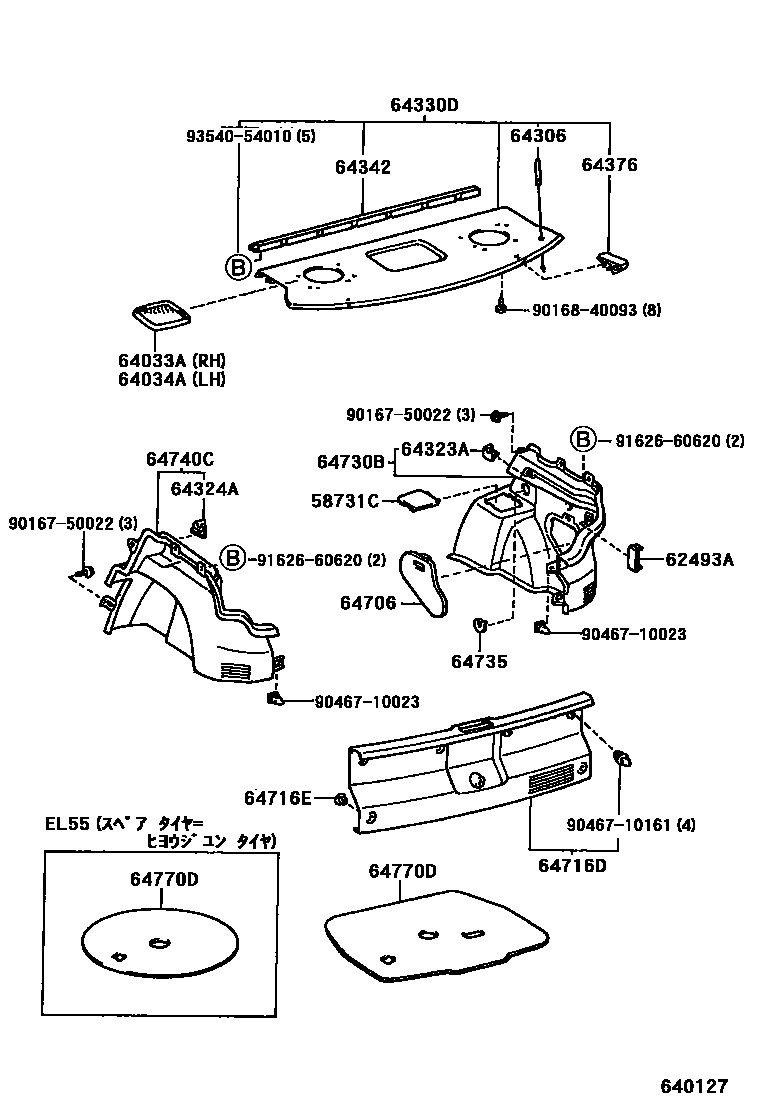

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-16070-B0×2iEL51,53,NL50199409-199608

BLUISH GRAY,TRIM1#

main58731-16070-B1×2iEL51,53,NL50199608

SHADOW GRAY,TRIM1#

main58731-16070-E0×2iEL51,53,NL50199712

OAK,TRIM4#

main58731-16080-B0×2iEL55199409-199608

BLUISH GRAY,TRIM1#

main58731-16080-B1×2iEL55199608

SHADOW GRAY,TRIM1#

main58731-16080-E0×2iEL55199712

OAK,TRIM4#

62493ACOVER, REAR ROOM LAMP OPENING

main62493-16040-B0iEL51,55,NL50..WIN199409-199608

BLUISH GRAY,TRIM1#

main62493-16040-B1iEL51,55,NL50..WIN199608

SHADOW GRAY,TRIM1#

main62493-16040-E0iEL51,55,NL50..WIN199712

OAK,TRIM4#

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-16040-B0iEL5#..LIM,TIA199409-199608

BLUISH GRAY,TRIM1#

main64383-16040-B1iEL5#..LIM,TIA199608-199907

SHADOW GRAY,TRIM1#

main64383-16040-E0iEL5#..LIM,TIA199712-199907

OAK,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64383-16040-B0iEL5#..LIM,TIA199409-199608

BLUISH GRAY,TRIM1#

main64383-16040-B1iEL5#..LIM,TIA199608-199907

SHADOW GRAY,TRIM1#

main64383-16040-E0iEL5#..LIM,TIA199712-199907

OAK,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-16060×2iEL5#,NL50199409

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-20061-22iEL5#,NL50199409-199712

BLACK,TRIM1#

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-20051-22iEL5#,NL50199409-199712

BLACK,TRIM1#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-16520-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main64330-16520-B1iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main64330-16520-E0iEL5#,NL50199712

OAK,TRIM4#

main64330-16530-B0iEL5#..LIM,TIA199409-199608

main64330-16530-B1iEL5#..LIM,TIA199608

main64330-16530-E0iEL5#..LIM,TIA199712

main64330-16540-B0iEL5#,NL50199409-199608

main64330-16540-B1iEL5#,NL50199608

main64330-16540-E0iEL5#,NL50199712

main64330-16550-B0iEL5#..LIM,TIA199409-199608

main64330-16550-B1iEL5#..LIM,TIA199608

main64330-16550-E0iEL5#..LIM,TIA199712

64342COVER, PACKAGE TRAY TRIM, UNDER

main64342-16010iEL5#..LIM,TIA199409

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-10040×2iEL5#,NL50199409

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64766-16040-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main64766-16040-B1iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main64766-16040-E0iEL5#,NL50199712

OAK,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-16090-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main64716-16090-B1iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main64716-16090-E0iEL5#,NL50199712

OAK,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-05091-B0×3iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main90467-05091-B1×3iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main90467-05091-E0×3iEL5#,NL50199712

OAK,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-16020-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main64730-16020-B1iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main64730-16020-E0iEL5#,NL50199712

OAK,TRIM4#

main64730-16030-B0iEL5#..LIM,TIA199409-199608

main64730-16030-B1iEL5#..LIM,TIA199608

main64730-16030-E0iEL5#..LIM,TIA199712

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-16010-B0iEL5#..LIM,TIA199409-199608

BLUISH GRAY,TRIM1#

main64735-16010-B2iEL5#..LIM,TIA199608

SHADOW GRAY,TRIM1#

main64735-16010-E0iEL5#..LIM,TIA199712

OAK,TRIM4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-16030-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main64740-16030-B1iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main64740-16030-E0iEL5#,NL50199712

OAK,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-16090iEL51,53,NL50199409

main64770-16220iEL51,53,NL50199409

main64770-16250iEL55199409

main64770-16260iEL55199409

9016750022

main90167-50022

9016840093

main90168-40093

9046710023

main90467-10023

9046710161

main90467-10161

9162660620

main91626-60620

9354054010

main93540-54010

23 parts on this diagram · 1 diagram in section
