SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
58709ACARRIER SUB-ASSY, JACK
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61113APANEL, SIDE, OUTER NO.2 RH
61114BPANEL, SIDE, OUTER NO.2 LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61158AEXTENSION, FRONT PILLER, LOWER RH
61159KEXTENSION, FRONT PILLER, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH
61322REINFORCEMENT, CENTER BODY PILLAR, UPPER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
62151BPAD, COWL SIDE SILENCER
67812APAD, QUARTER PANEL SILENCER
9017904026
main90179-04026
9017908102
main90179-08102
9033330008
main90333-30008
9095001637
main90950-01637
9095001826
main90950-01826
9095001850
main90950-01850
9095001864
main90950-01864
9166160816
main91661-60816

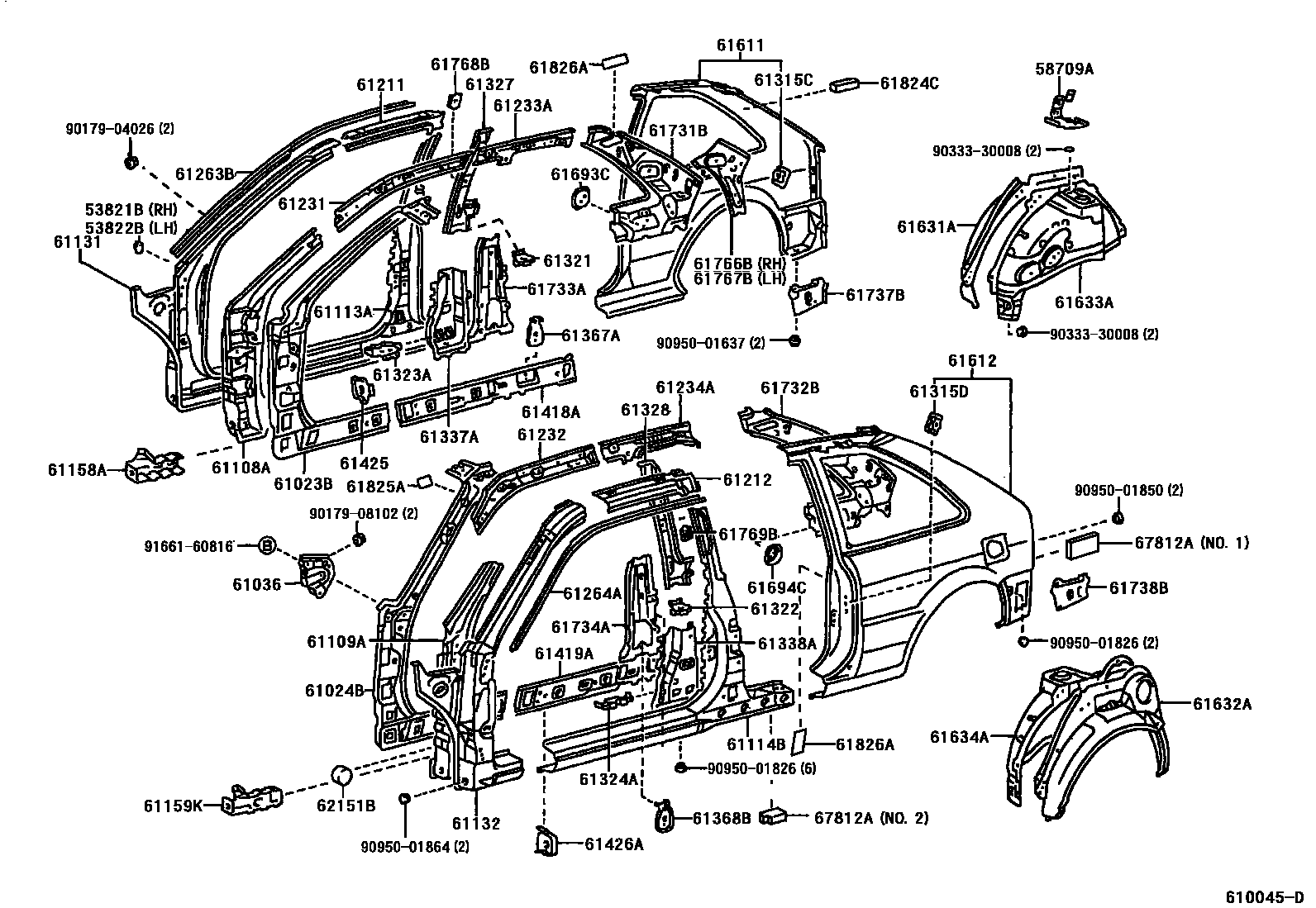

69 parts on this diagram · 1 diagram in section
