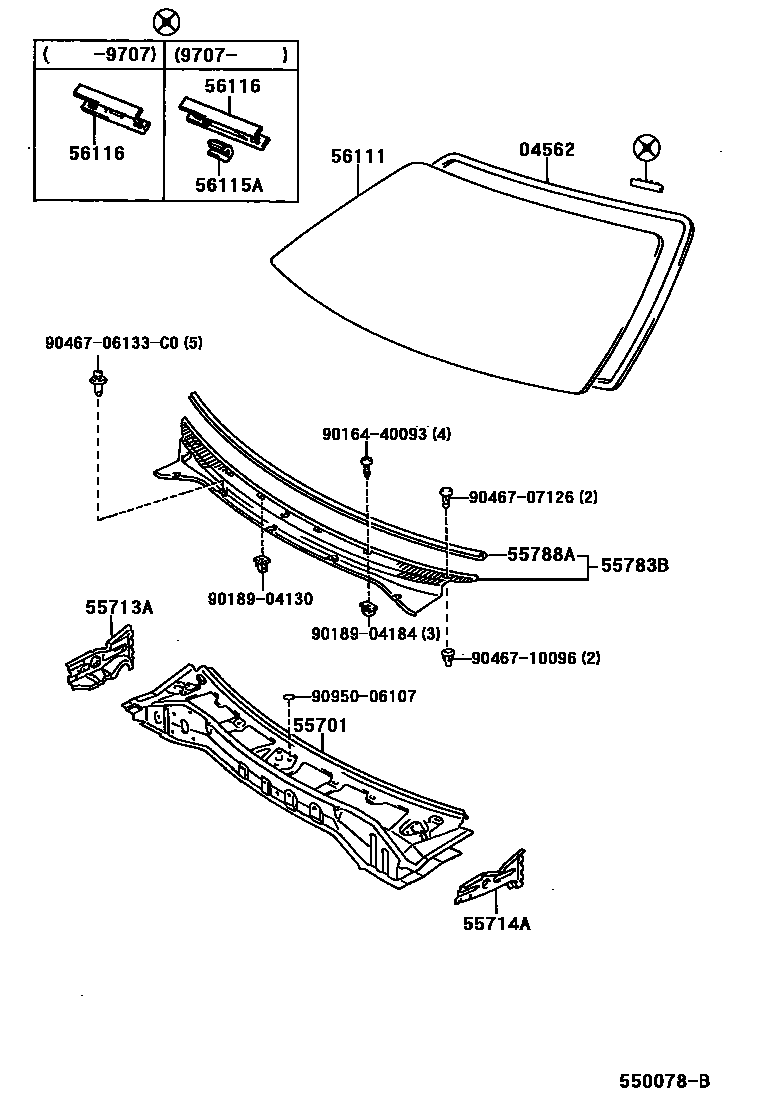

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEL5#,NL50199409

55701PANEL SUB-ASSY, COWL

main55700-16250iEL5#199409

sub55700-16902

main55700-16270iNL50199409

sub55700-16902

55713APANEL, COWL TOP SIDE, RH

main55713-16060iEL5#,NL50199409

55714APANEL, COWL TOP SIDE, LH

main55714-16060iEL5#,NL50199409

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16100iEL5#,NL50199409

sub55708-10050

main55708-16110iEL5#,NL50199409

sub55708-10060

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16090iEL5#,NL50199409-199508

main55788-16091iEL5#,NL50199508

56111GLASS, WINDSHIELD

main56111-16310iEL51..WIN199409-199608

main56111-16320iEL5#,NL50199409-199508

sub56111-16390

main56111-16430iEL5#,NL50199508

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050×2iEL5#,NL50199707

56116SPACER, WINDSHIELD GLASS

main56116-16050×2iEL5#,NL50199409-199707

main56116-22050×2iEL5#,NL50199707

9016440093

main90164-40093

9018904130

main90189-04130

9018904184

main90189-04184

9046706133C0

main90467-06133C0

9046707126

main90467-07126

9046710096

main90467-10096

9095006107

main90950-06107

16 parts on this diagram · 1 diagram in section
