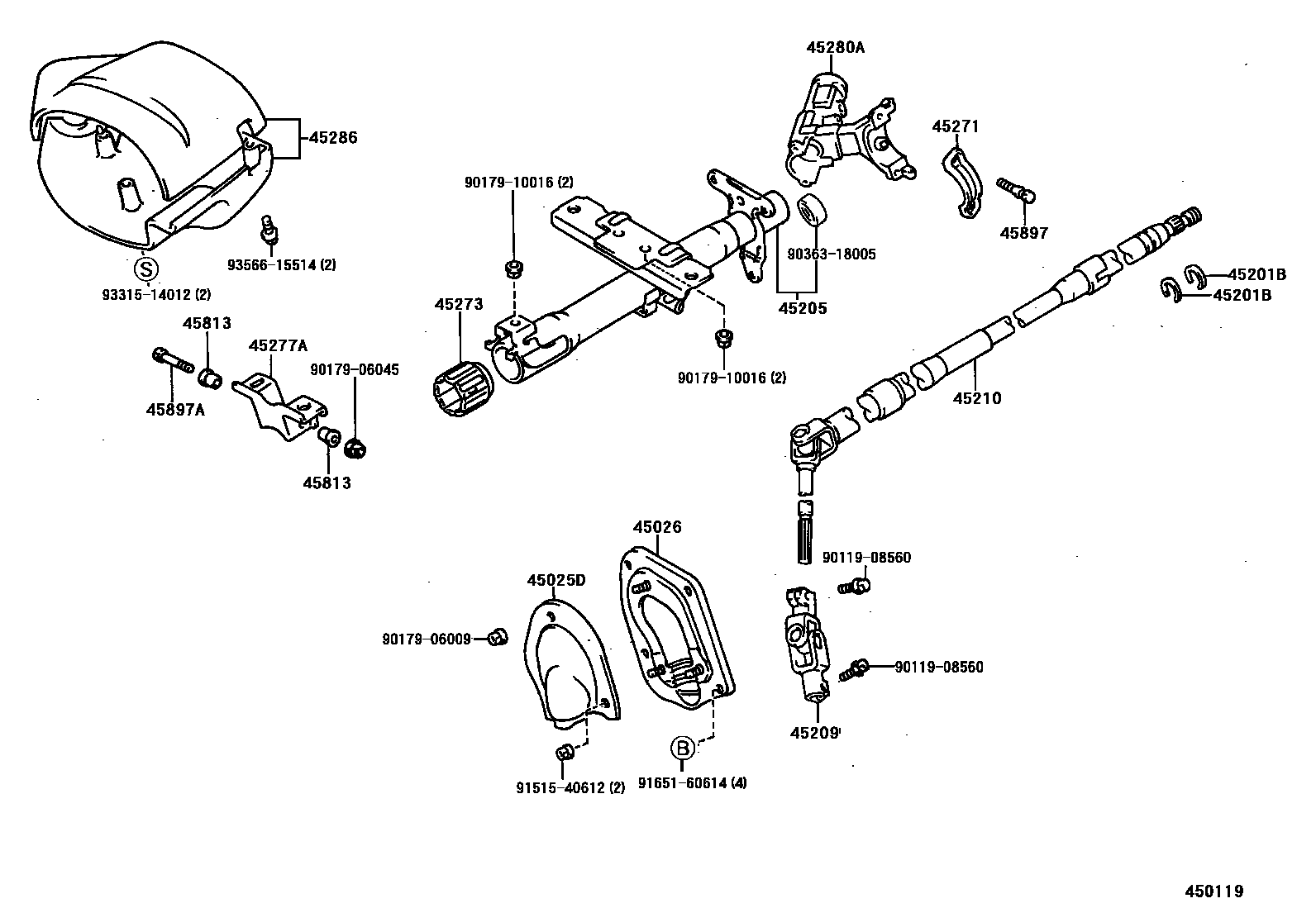

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45210SHAFT ASSY, STEERING MAIN
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45813COLLAR, TILT STEERING SUPPORT, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9017906009
main90179-06009
9017906045
main90179-06045
9017910016
main90179-10016
9036318005
main90363-18005
9151540612
main91515-40612
9165160614
main91651-60614
9331514012
main93315-14012
9356615514
main93566-15514
23 parts on this diagram · 4 diagrams in section
