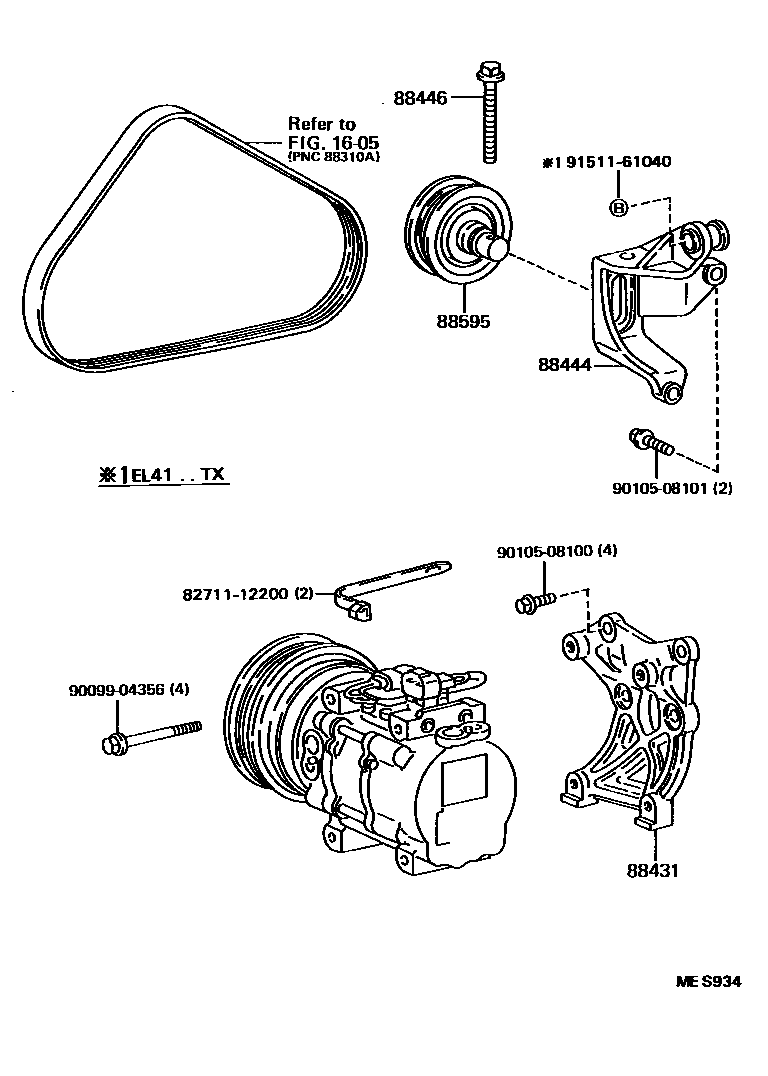

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEL4#199009-199409

main88431-16060iEL41..3FC199405-199409

TV 10 COMPRESSOR

main88431-16070iNL40..5F199009-199409

main88431-16080iNL40..4FC199009-199409

sub88431-16070

sub88469-16050

main88431-16120iEL41..3FC199405-199409

SCROLL COMPRESSOR

88444BRACKET, IDLE PULLEY

main88444-10031iEL41..TX199009-199409

88446BOLT, IDLE PULLEY

main88446-12030iEL41..TX199009-199409

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170iNL40..5F199009-199409

main88440-17010iEL41..TX199009-199409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904356

main90099-04356

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

10 parts on this diagram · 3 diagrams in section
