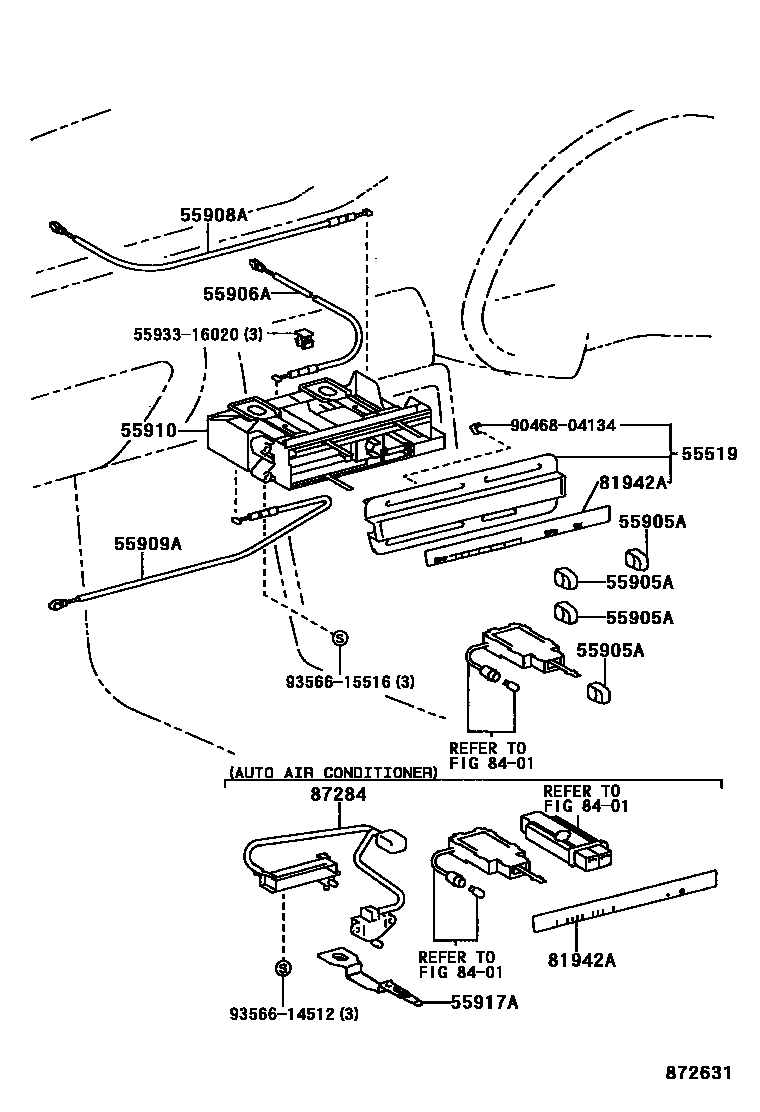

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE 0002 1PUSH TYPE 0003 1 0004 1

55519PLATE, HEATER CONTROL NAME

main55519-16010-01iEL4#,NL40..DSL,EFI199009-199208

BLACK,TRIM2#

sub55519-16011

main55519-16010-04iEL4#,NL40..DSL,EFI199009-199208

GRAYISH BLUE,TRIM8#

sub55519-16011

main55519-16010-07iEL4#,NL40..LIM,SR,WIN199009-199208

SPRUCE,TRIM6#

sub55519-16011

main55519-16011-22iEL4#,NL40..DSL,EFI199208-199409

BLACK,TRIM2#

sub55519-16011

main55519-16011-G0iEL4#,NL40..LIM,SR,WIN199208-199409

SPRUCE,TRIM6#

sub55519-16011

main55519-16011-W4iEL4#,NL40..DSL,EFI199208-199409

EISEN BLUE,TRIM8#

sub55519-16011

main55519-16070-01iEL43..EFIS199009-199208

BLACK,TRIM2#

sub55519-16070

main55519-16070-04iEL43..EFIS199009-199208

GRAISH BLUE,TRIM8#

sub55519-16070

main55519-16070-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

sub55519-16070

main55519-16080-C0iEL43,45..SR199208-199409

sub55519-16080

main55519-16080-C0iEL43..EFIS199208-199409

BLACK,TRIM2#

sub55519-16080

main55519-16080-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

sub55519-16080

main55519-16080-G0iEL43..EFIS199208-199409

sub55519-16080

main55519-16080-J0iEL43,45..SR199208-199409

sub55519-16080

main55519-16080-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

sub55519-16080

55905AKNOB, HEATER CONTROL

main55905-16030-01iEL43,45..SR199208-199409

sub55905-16030

main55905-16030-01iEL43..EFIS199009-199409

BLACK,TRIM2#,VENT

sub55905-16030

main55905-16030-04iEL43,45..SR199208-199409

sub55905-16030

main55905-16030-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,VENT

sub55905-16030

main55905-16030-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,VENT

sub55905-16030

main55905-16030-07iEL43,45..SR199208-199409

sub55905-16030

main55905-16040-01iEL43,45..SR199208-199409

sub55905-16040

main55905-16040-01iEL43..EFIS199009-199409

BLACK,TRIM2#,B/L

sub55905-16040

main55905-16040-04iEL43,45..SR199208-199409

sub55905-16040

main55905-16040-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,B/L

sub55905-16040

main55905-16040-07iEL43,45..SR199208-199409

sub55905-16040

main55905-16040-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,B/L

sub55905-16040

main55905-16050-01iEL43,45..SR199208-199409

sub55905-16050

main55905-16050-01iEL43..EFIS199009-199409

BLACK,TRIM2#,HEAT

sub55905-16050

main55905-16050-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,HEAT

sub55905-16050

main55905-16050-04iEL43,45..SR199208-199409

sub55905-16050

main55905-16050-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,HEAT

sub55905-16050

main55905-16050-07iEL43,45..SR199208-199409

sub55905-16050

main55905-16060-01iEL43,45..SR199208-199409

sub55905-16060

main55905-16060-01iEL43..EFIS199009-199409

BLACK,TRIM2#,HEAT/DEF

sub55905-16060

main55905-16060-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,HEAT/DEF

sub55905-16060

main55905-16060-04iEL43,45..SR199208-199409

sub55905-16060

main55905-16060-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,HEAT/DEF

sub55905-16060

main55905-16060-07iEL43,45..SR199208-199409

sub55905-16060

main55905-16070-01iEL43..EFIS199009-199409

BLACK,TRIM2#,DEF

sub55905-16070

main55905-16070-01iEL43,45..SR199208-199409

sub55905-16070

main55905-16070-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,DEF

sub55905-16070

main55905-16070-04iEL43,45..SR199208-199409

sub55905-16070

main55905-16070-07iEL43,45..SR199208-199409

sub55905-16070

main55905-16070-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,DEF

sub55905-16070

main55905-16080-01iEL43,45..SR199208-199409

sub55905-16080

main55905-16080-01iEL43..EFIS199009-199409

BLACK,TRIM2#,REC/FRS

sub55905-16080

main55905-16080-04iEL43..EFIS199009-199409

GRAISH BLUE,TRIM8#,REC/FRS

sub55905-16080

main55905-16080-04iEL43,45..SR199208-199409

sub55905-16080

main55905-16080-07iEL43..EFIS199009-199409

SPRUCE,TRIM6#,REC/FRS

sub55905-16080

main55905-16080-07iEL43,45..SR199208-199409

sub55905-16080

main55905-89115iEL4#,NL40..DSL,EFI199208-199409

main55905-89115iEL4#,NL40..DSL,EFI199009-199409

LEVER

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16070iEL4#,NL40..DSL,EFI199009-199409

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16070iEL4#,NL40..DSL,EFI199009-199409

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16070iEL4#,NL40..DSL,EFI199009-199409

main55909-16090iEL43..EFIS199009-199208

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16140iEL4#,NL40..DSL,EFI199009-199208

sub55910-16141

main55910-16141iEL4#,NL40..DSL,EFI199208-199409

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-16050iEL4#,NL40..LIM,SR,WIN199009-199409

main55917-16060iEL43..EFIS199009-199208

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16130-01iEL4#,NL40..DSL,EFI199009-199208

BLACK,TRIM2#

sub81942-16131

main81942-16130-04iEL4#,NL40..DSL,EFI199009-199208

GRAISH BLUE,TRIM8#

sub81942-16131

main81942-16130-07iEL4#,NL40..LIM,SR,WIN199009-199208

SPRUCE,TRIM6#

sub81942-16131

main81942-16131-C0iEL4#,NL40..DSL,EFI199208-199409

BLACK,TRIM2#

sub81942-16131

main81942-16131-G0iEL4#,NL40..LIM,SR,WIN199208-199409

SPRUCE,TRIM6#

sub81942-16131

main81942-16131-J0iEL4#,NL40..DSL,EFI199208-199409

EISEN BLUE,TRIM8#

sub81942-16131

main81942-16171-C0iEL4#,NL40..LIM,SR,WIN199009-199208

sub81942-16171

main81942-16171-C0iEL41,45,NL40..LIM,WIN199208-199409

sub81942-16171

main81942-16171-G0iEL4#,NL40..LIM,SR,WIN199009-199208

sub81942-16171

main81942-16171-G0iEL41,45,NL40..LIM,WIN199208-199409

sub81942-16171

main81942-16171-J0iEL4#,NL40..LIM,SR,WIN199009-199208

sub81942-16171

main81942-16171-J0iEL41,45,NL40..LIM,WIN199208-199409

sub81942-16171

main81942-16180-C0iEL43..EFIS199009-199208

BLACK,TRIM2#

sub81942-16180

main81942-16180-G0iEL43..EFIS199009-199208

SPRUCE,TRIM6#

sub81942-16180

main81942-16180-J0iEL43..EFIS199009-199208

GRAISH BLUE,TRIM8#

sub81942-16180

main81942-16190-01iEL43..EFIS199208-199409

BLACK,TRIM2#

sub81942-16190

main81942-16190-01iEL43..EFIS199208-199409

sub81942-16190

main81942-16190-01iEL43..EFIS199009-199208

sub81942-16190

main81942-16190-04iEL43..EFIS199208-199409

GRAISH BLUE,TRIM8#

sub81942-16190

main81942-16190-04iEL43..EFIS199009-199208

sub81942-16190

main81942-16190-04iEL43..EFIS199208-199409

sub81942-16190

main81942-16190-07iEL43..EFIS199208-199409

SPRUCE,TRIM6#

sub81942-16190

main81942-16190-07iEL43..EFIS199009-199208

sub81942-16190

main81942-16190-07iEL43..EFIS199208-199409

sub81942-16190

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-16090iEL4#,NL40..LIM,SR,WIN199009-199409

main88032-16100iEL43,45..SR,ZS199009-199409

5593316020GUIDE, LEVER, NO.2

main55933-16020

9046804134

main90468-04134

9356614512

main93566-14512

9356615516

main93566-15516
