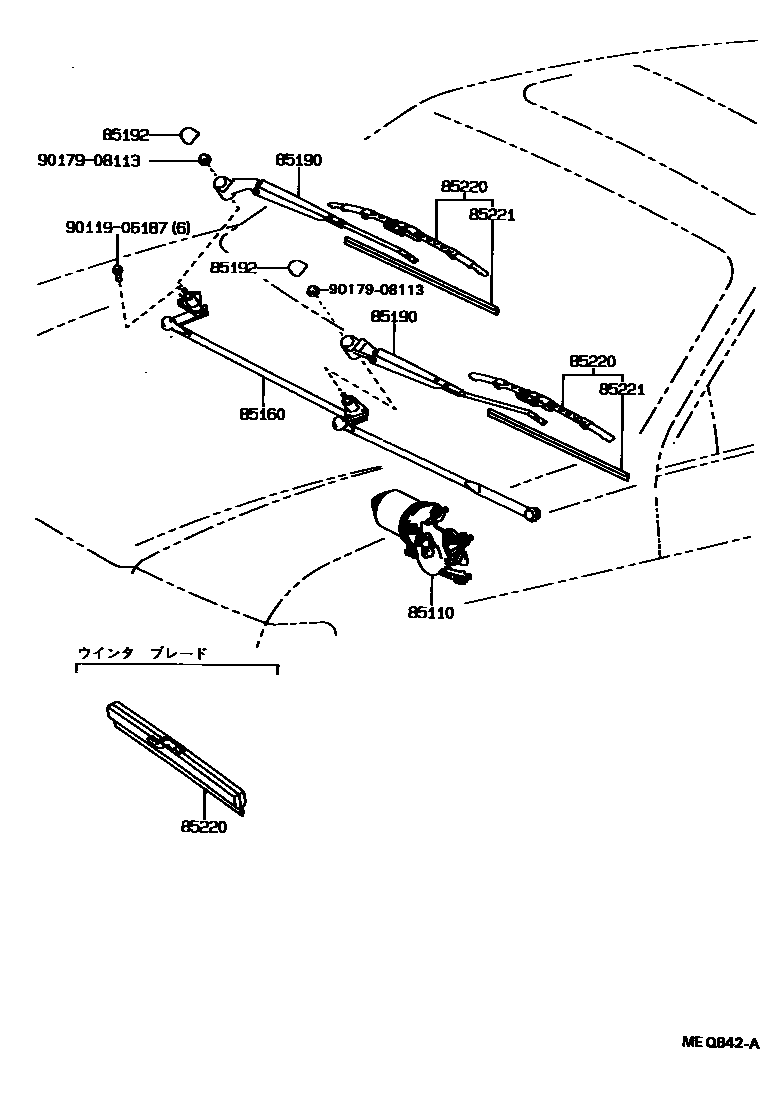

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16400iEL4#,NL40199009-199208

sub85110-16410

main85110-16410iEL4#,NL40199009-199208

main85110-16491iEL4#,NL40199208-199409

sub85110-16580

main85110-16501iEL4#,NL40199208-199210

sub85110-16502

main85110-16502iEL4#,NL40199210-199409

sub85110-16600

main85110-16570iEL4#..LIM,SR,ZS199210-199409

sub85110-16590

85160LINK ASSY, WINDSHIELD WIPER

main85150-16400iEL4#,NL40199009-199208

main85150-16401iEL4#,NL40199208-199409

85190ARM ASSY, WINDSHIELD WIPER

main85211-16070iEL4#,NL40199009-199111

sub85211-16071

main85211-16071iEL4#,NL40199111-199409

main85221-16110iEL4#,NL40199009-199111

sub85221-16111

main85221-16111iEL4#,NL40199111-199409

sub85221-16151

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iEL4#,NL40199009-199111

main85292-12020iEL4#,NL40199111-199409

85220BLADE ASSY, WINDSHIELD WIPER

main85212-16070iEL4#,NL40199009-199111

sub85212-16071

main85212-16071iEL4#,NL40199111-199212

sub85212-23070

main85212-23070iEL4#,NL40199212-199409

main85222-12692iEL4#,NL40199212-199409

main85222-1G020iEL4#,NL40199009-199111

sub85222-1G021

main85222-1G021iEL4#,NL40199111-199212

sub85222-12692

main85291-22050iEL4#,NL40199009-199409

sub85291-33060

main85291-30030iEL4#,NL40199009-199409

sub85291-22080

85221BLADE, WINDSHIELD WIPER

main85213-16070iEL4#,NL40199009-199109

sub85213-16090

main85213-16090iEL4#,NL40199109-199212

sub85213-30250

main85213-30250iEL4#,NL40199212-199409

sub85214-30250

main85223-1G010iEL4#,NL40199009-199109

sub85223-1G040

main85223-1G040iEL4#,NL40199109-199212

sub85223-30400

main85223-30400iEL4#,NL40199212-199409

sub85214-20320

9011906187

main90119-06187

9017908113

main90179-08113

8 parts on this diagram · 1 diagram in section
