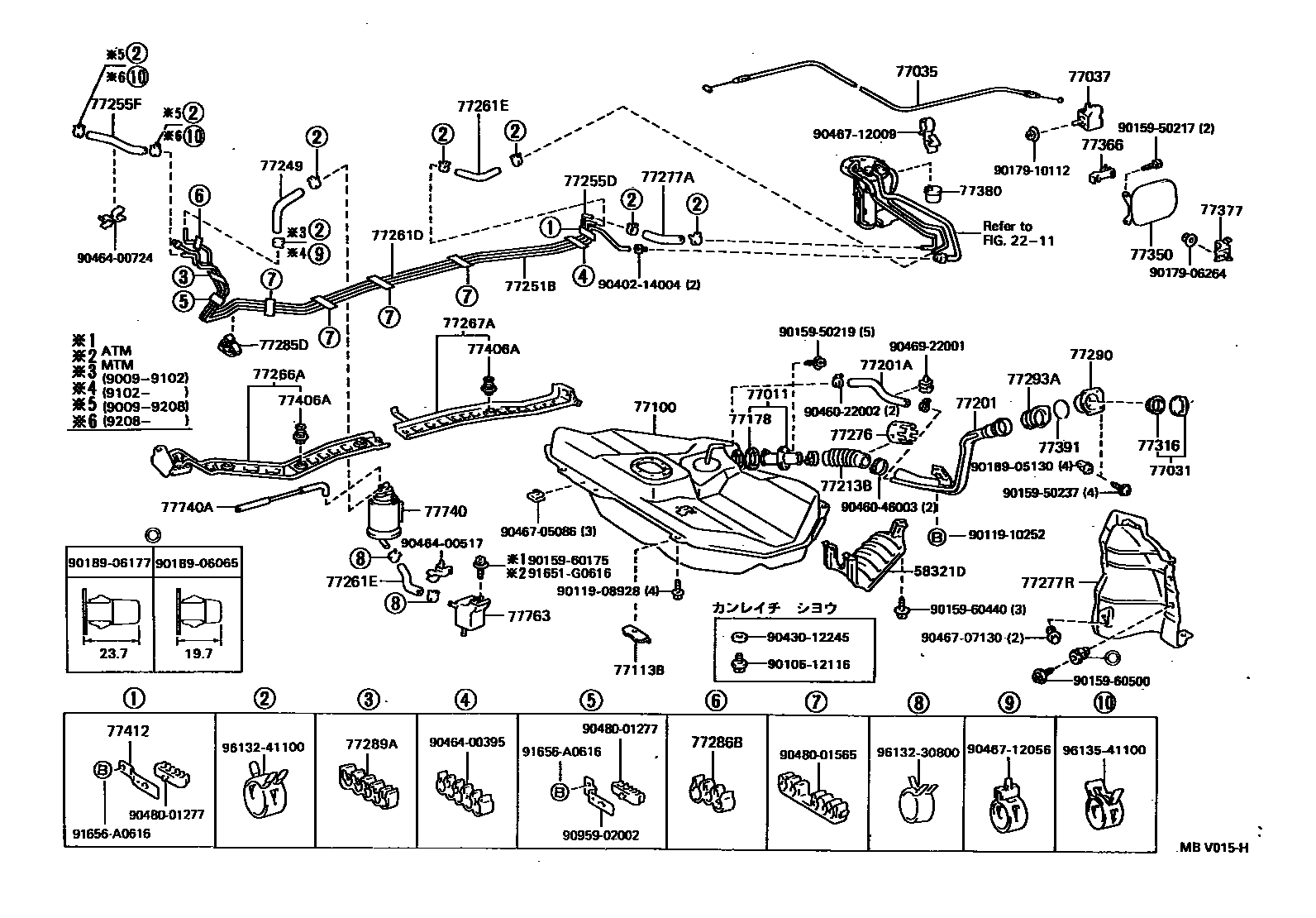

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL41,43,NL40199009-199409

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL4#,NL40199009-199409

77031CAP ASSY, FUEL TANK

main77310-16011iEL4#199009-199409

sub77310-12140

main77310-32011iNL40199009-199409

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16130iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iEL4#,NL40..LIM,SR,WIN,ZS199009-199104

main77037-16030iEL4#,NL40..LIM,SR,WIN,ZS199104-199409

77100TANK ASSY, FUEL

main77001-10340iEL45199009-199409

main77001-16210iEL41,43,NL40199009-199409

sub77001-16220

77113BPLATE, FUEL TANK SIDE

main77113-10020iEL41,43,NL40199009-199409

main77113-10030iEL45199009-199409

main77113-10040iEL45199009-199409

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL4#,NL40199208-199409

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16150iEL41,43,NL40199009-199105

sub77201-16151

main77201-16151iEL41,43,NL40199105-199409

sub77201-16161

main77201-16160iEL41,43,NL40199009-199105

sub77201-16161

main77201-16161iEL41,43,NL40199105-199409

main77201-16180iEL45199009-199010

sub77201-16181

sub95311-11024

main77201-16181iEL45199010-199409

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-11022iEL45199009-199010

sub95311-11024

main95311-11024iEL45199010-199409

main95311-13028iEL41,43,NL40199009-199409

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10080iEL45199009-199409

main77213-16060iEL41,43,NL40199009-199010

sub77213-16070

main77213-16070iEL41,43,NL40199010-199409

sub77213-16110

77249HOSE, FUEL EMISSION

main77249-16010iEL4#199009-199409

77251BTUBE, FUEL MAIN

main77251-16170iNL40199009-199409

main77251-16180iEL45199009-199409

main77251-16210iEL41,43199009-199409

77255DTUBE, FUEL RETURN

main77255-16160iNL40199009-199409

main77255-16170iEL45199009-199409

main77255-16200iEL41,43199009-199409

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main23271-11110iEL45199009-199304

sub23271-11140

main23271-11140iEL41,43199009-199409

main95333-04020iEL45199009-199208

main95333-06010iNL40199009-199409

77261DTUBE, FUEL TANK TO CANISTER

main77261-16100iEL45199009-199409

main77261-16120iEL41,43199009-199409

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEL41,43199009-199409

main77419-10030iEL45199208-199409

main90445-14167iEL4#..MTM199104-199409

main95333-08020iEL4#..ATM199009-199409

sub95337-08020

main95333-08030iEL4#..MTM199009-199104

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL4#,NL40199009-199409

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL4#,NL40199009-199409

77276PROTECTOR, FUEL HOSE

main77276-10020iEL41,43,NL40199009-199409

main77276-10040iEL45199009-199409

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77279-10020iEL41,43199009-199409

sub95333-06020

main77279-10030iNL40199009-199409

sub95333-06020

main77279-10050iEL41,43199202-199409

sub95333-06020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16090iEL4#,NL40199009-199409

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL4#,NL40199307-199409

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10020iEL4#199009-199409

77289HOLDER, FUEL TANK PIPE SETTING

main77289-10011iNL40199009-199409

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL4#,NL40199009-199409

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16070iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main77290-16070iEL41..TX199208-199409

main77290-16080iEL41..TX199009-199409

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16050iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main77293-16050iEL41..TX199208-199409

main77293-16060iEL41..TX199009-199409

77316GASKET, FUEL TANK CAP

main77316-16010iEL4#,NL40199009-199409

77350LID ASSY, FUEL FILLER OPENING

main77350-16130iEL41..TX199009-199409

main77350-16140iEL41,45,NL40..WIN199009-199409

main77350-16140iEL41..TX199208-199409

main77350-16170iEL4#..LIM,SR,ZS199009-199409

sub77350-16140

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iEL4#,NL40199009-199409

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iEL4#,NL40199009-199208

main77380-26010iEL4#,NL40199208-199409

77391RING, FUEL INLET BOX

main77391-14020iEL4#,NL40199009-199409

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023iEL4#,NL40199009-199409

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL4#,NL40199009-199409

77740CANISTER ASSY, CHARCOAL

main77704-16160iEL4#199009-199409

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95413-49936iEL41199009-199208

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEL4#..ATM199009-199409

main77763-10020iEL4#..MTM199009-199409

9010512116

main90105-12116

9011908928

main90119-08928

9011910252

main90119-10252

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9015960175

main90159-60175

9015960440

main90159-60440

9015960500

main90159-60500

9017906264

main90179-06264

9017910112

main90179-10112

9018905130

main90189-05130

9018906065

main90189-06065

9018906177

main90189-06177

9040214004

main90402-14004

9043012245

main90430-12245

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400517

main90464-00517

9046400724

main90464-00724

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046712056

main90467-12056

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

91651G0616

main91651-G0616

91656A0616

main91656-A0616

9613230800

main96132-30800

9613241100

main96132-41100

9613541100

main96135-41100
