BATTERY CARRIER

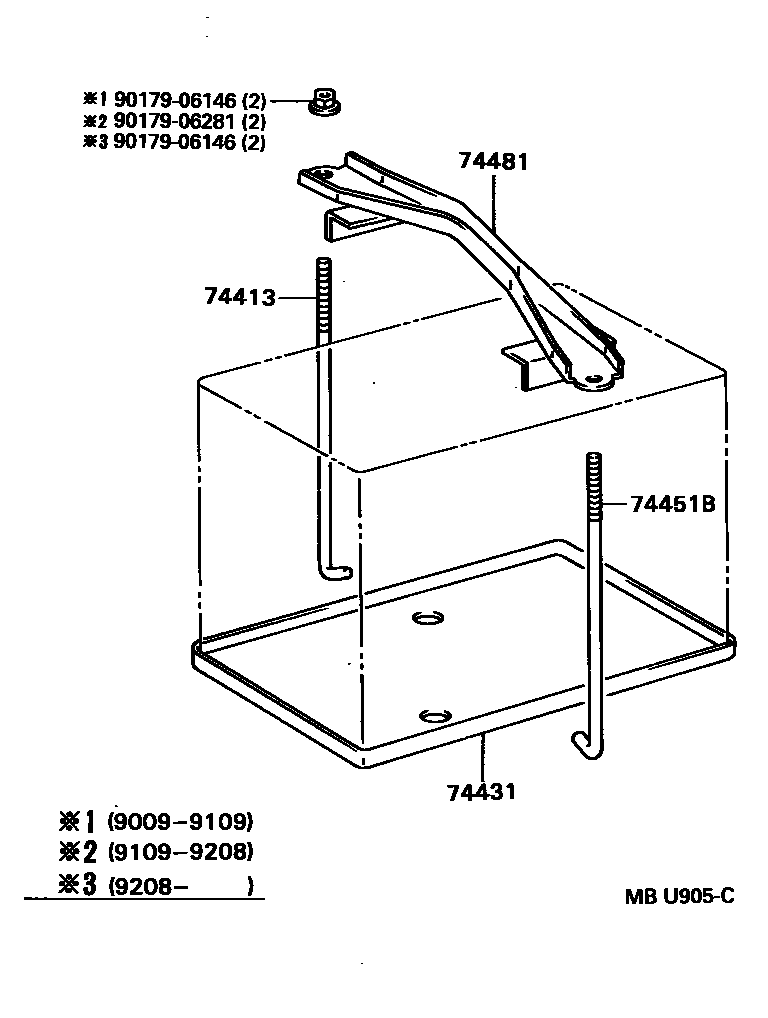

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-16010i199009-199109

main74451-16030i199109-199409

main74451-20060i199009-199208

74431TRAY, BATTERY

main74431-12010i199009-199409

main74431-14020i199009-199409

main74431-14040i199009-199409

74451BBOLT, BATTERY CLAMP

main74451-16040i199109-199409

main74451-20060i199009-199109

74481CLAMP, BATTERY HOLD DOWN

main74404-16090i199009-199409

main74404-16101i199009-199409

main74404-16130i199009-199409

9017906146

main90179-06146

9017906281

main90179-06281

6 parts on this diagram · 1 diagram in section
