LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16190iEL4#,NL40..DSL,EFI¥3,990199009-199409

main69051-16200iEL41..LIM¥6,000199009-199409

sub69051-16190¥3,990

sub84903-16120¥4,570

main69051-16200iEL43..EFIS¥6,000199009-199409

sub69051-16190¥3,990

sub84903-16120¥4,570

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16190iEL4#,NL40¥3,990199009-199409

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-16250iEL4#,NL40¥6,400199009-199409

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16130iEL4#,NL40¥7,100199009-199409

sub69057-10200¥7,100

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16140iEL41..TX¥3,990199009-199409

sub69058-65010¥4,010

69503CYLINDER SET, LOCK

main69005-16640iEL41..TX¥18,100199009-199409

main69005-16650iEL4#,NL40..LIM,SR,WIN¥15,300199009-199409

main69005-16650iEL41..TX¥15,300199208-199409

main69005-16660iEL43,45..SR¥17,000199009-199409

sub69005-16650¥15,300

sub84903-16120¥4,570

main69005-16660iEL43..EFIS¥17,000199009-199409

sub69005-16650¥15,300

sub84903-16120¥4,570

69503AKEY, BLANK

main90999-00163iEL4#,NL40¥1,550199009-199409

sub90999-00174¥2,070

main90999-00164iEL4#,NL40¥2,070199009-199409

sub90999-00175¥2,060

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iEL41..TX¥160199009-199409

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iEL41..TX¥120199009-199409

69555COVER, KEY

main69555-17020iEL4#,NL40¥810199009-199409

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-16020iEL4#,NL40¥300199009-199409

sub69759-32090¥180

main69759-16030iEL4#,NL40¥300199009-199409

PINK

sub69759-32100¥180

9017905083

main90179-05083¥120

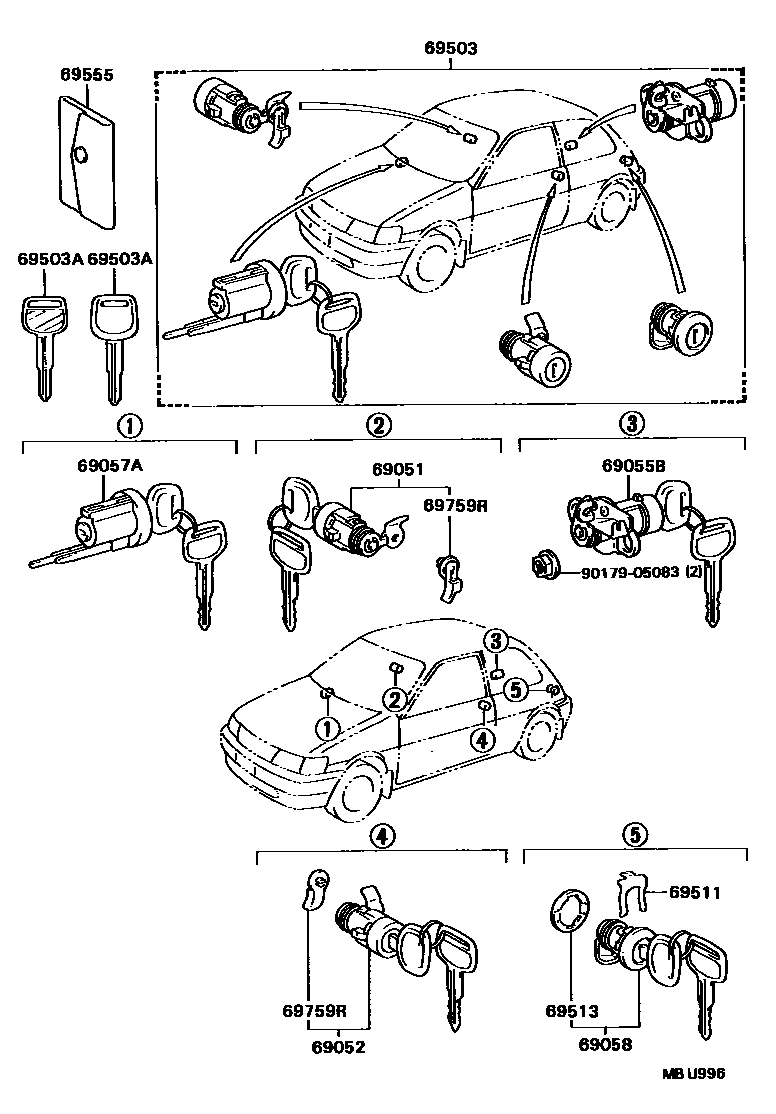

12 parts on this diagram · 1 diagram in section
