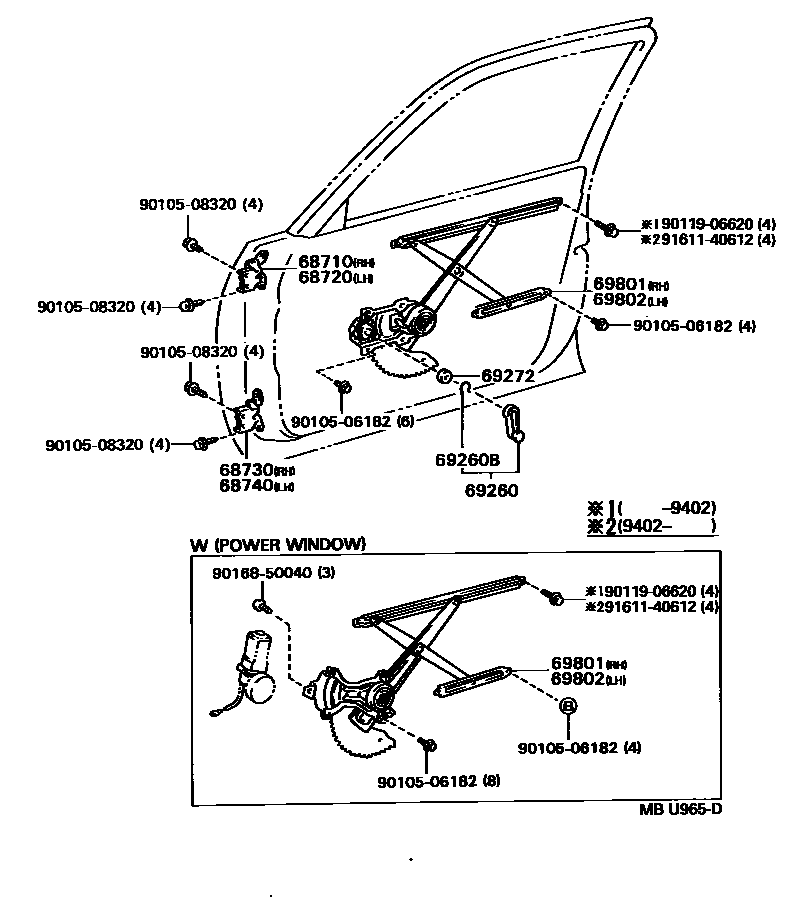

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16030iEL4#,NL40199009-199208

main68710-16050iEL4#,NL40199208-199409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16030iEL4#,NL40199009-199208

main68720-16050iEL4#,NL40199208-199409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16030iEL4#,NL40199009-199208

main68730-16040iEL4#,NL40199210-199308

TAKAOKA

main68730-16060iEL4#,NL40199208-199210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16030iEL4#,NL40199009-199208

main68740-16040iEL4#,NL40199210-199308

TAKAOKA

main68740-16060iEL4#,NL40199208-199210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-16010-01×2iEL4#,NL40..DSL,EFI199009-199208

BLACK,TRIM2#

main69260-16010-04×2iEL4#,NL40..DSL,EFI199009-199208

GRAYISH BLUE,TRIM8#

main69260-16010-07×2iEL4#,NL40..LIM,SR,WIN199009-199208

SPRUCE,TRIM6#

main69260-16010-22×2iEL4#,NL40..DSL,EFI199208-199409

BLACK,TRIM2#

main69260-16010-G0×2iEL4#,NL40..LIM,SR,WIN199208-199409

SPRUCE,TRIM6#

main69260-16010-W4×2iEL4#,NL40..DSL,EFI199208-199409

EISEN BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iEL4#,NL40..DSL,EFI199009-199409

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iEL4#,NL40..DSL,EFI199009-199409

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16030iEL43..EFIS199009-199208

main69801-16031iEL43..EFIS199208-199409

main69810-16080iEL4#,NL40..DSL,EFI199009-199208

main69810-16081iEL4#,NL40..DSL,EFI199208-199409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16030iEL43..EFIS199009-199208

main69802-16031iEL43..EFIS199208-199409

main69820-16080iEL4#,NL40..DSL,EFI199009-199208

main69820-16081iEL4#,NL40..DSL,EFI199208-199409

9010506182

main90105-06182

9010508320

main90105-08320

9011906620

main90119-06620

9016850040

main90168-50040

9161140612

main91611-40612

14 parts on this diagram · 1 diagram in section
