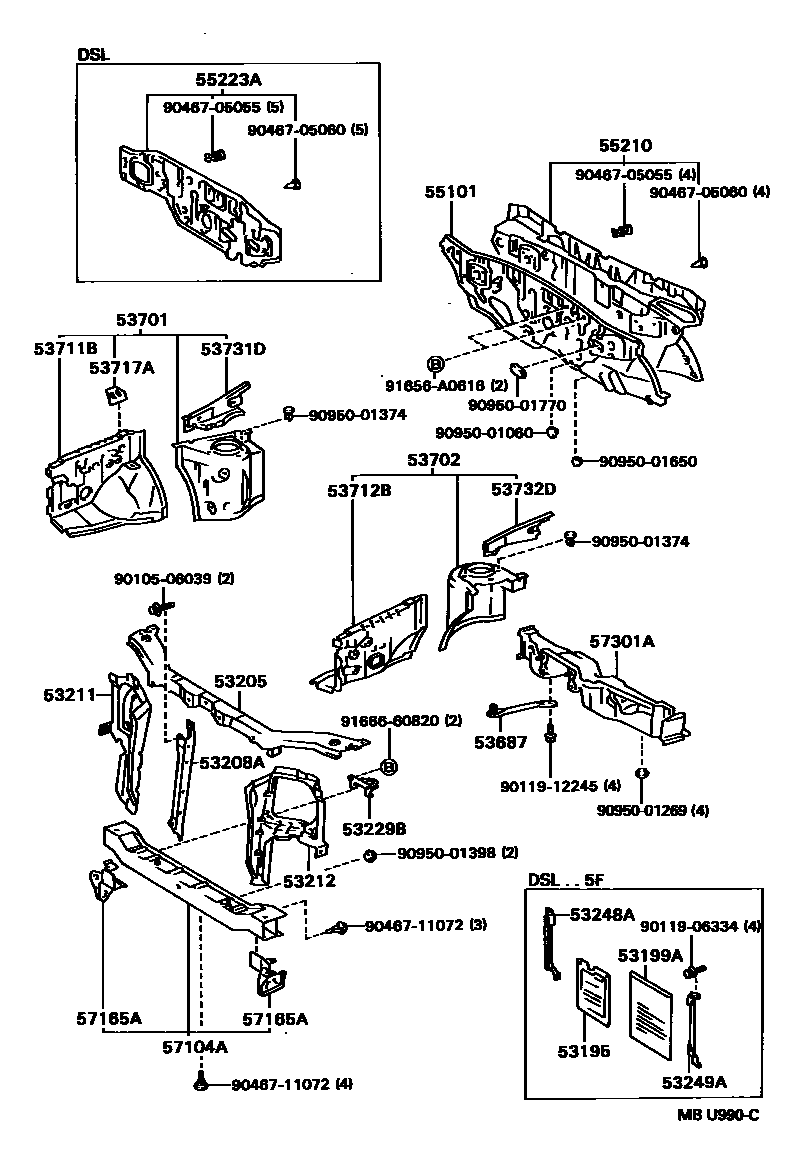

FRONT FENDER APRON & DASH PANEL
53195PLATE, RADIATOR SHUTTER
sub53195-16021
53199ABAG, RADIATOR SHUTTER
sub53199-10020
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53248ABRACKET, RADIATOR SHUTTER, RH
53249ABRACKET, RADIATOR SHUTTER, LH
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53701APRON SUB-ASSY, FRONT FENDER, RH
53711BAPRON, FRONT FENDER, FRONT RH
53717APLATE, FENDER APRON
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9010506039
main90105-06039
9011906334
main90119-06334
9011912245
main90119-12245
9046705055
main90467-05055
9046705060
main90467-05060
9046711072
main90467-11072
9095001060
main90950-01060
9095001269
main90950-01269
9095001374
main90950-01374
9095001398
main90950-01398
9095001650
main90950-01650
9095001770
main90950-01770
91656A0616
main91656-A0616
9166660820
main91666-60820
37 parts on this diagram · 1 diagram in section
