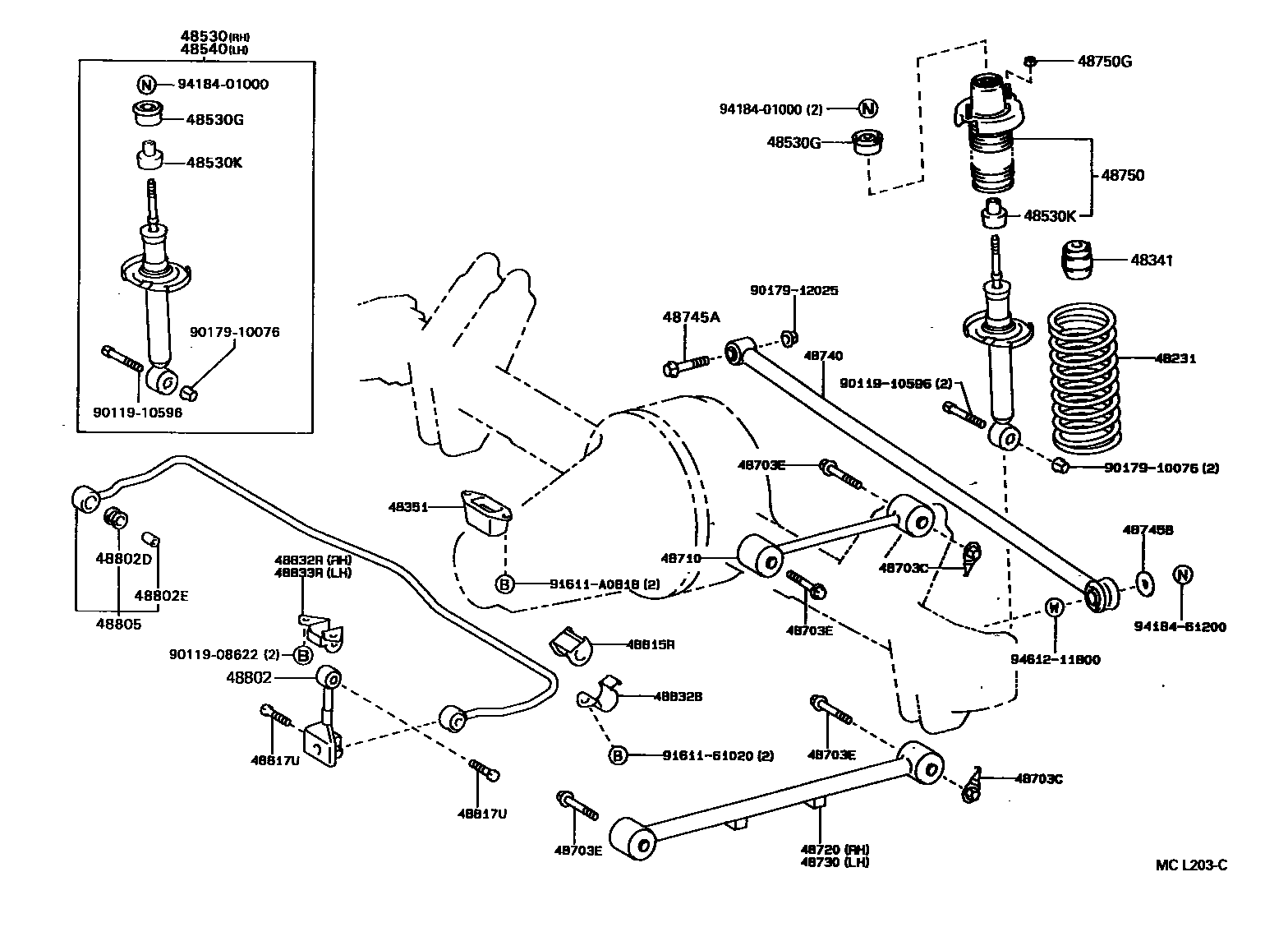

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-10240iEL41,NL40199009-199409

main48231-16420iEL45..WIN199009-199208

main48231-16430iEL45..SR199009-199208

main48231-16460iEL43199009-199208

main48231-16470iEL43199208-199409

main48231-16510iEL43199011-199103

sub48231-16460

main48231-16680iEL45..WIN199208-199409

main48231-16690iEL45..SR199208-199409

48341BUMPER, REAR SPRING

main48341-10111iEL45199009-199409

main48341-16060iEL41,43,NL40199009-199409

48351BUMPER, DIFFERENTIAL CARRIER

main48351-12020iEL45199009-199409

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-19265iEL43..EFI199009-199409

sub48530-19266

main48530-19275iEL43,NL40..DSL,EFIS199009-199409

sub48530-19276

main48530-19305iEL41199009-199106

sub48530-19445

main48530-19315iEL45..WIN199009-199409

sub48530-19325

main48530-19325iEL45..SR199009-199208

sub48530-19326

main48530-19445iEL41199106-199409

sub48530-19446

main48530-19465iEL45..SR199208-199409

sub48530-19325

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01051iEL45199009-199409

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01052iEL45199009-199409

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-19265iEL43..EFI199009-199409

sub48530-19266

main48530-19275iEL43,NL40..DSL,EFIS199009-199409

sub48530-19276

main48530-19305iEL41199009-199106

sub48530-19445

main48530-19315iEL45..WIN199009-199409

sub48530-19325

main48530-19325iEL45..SR199009-199208

sub48530-19326

main48530-19445iEL41199106-199409

sub48530-19446

main48530-19465iEL45..SR199208-199409

sub48530-19325

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12092iEL45199009-199409

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12213iEL45199009-199409

sub90119-12099

48710ARM ASSY, UPPER CONTROL

main48710-16060iEL45..WIN199009-199208

main48710-16070iEL45..SR199009-199111

main48710-16090iEL45..WIN199208-199409

main48710-16100iEL45..SR199208-199409

48720ARM ASSY, LOWER CONTROL, RH

main48720-16050iEL45..WIN199009-199208

main48720-16060iEL45199009-199409

48730ARM ASSY, LOWER CONTROL, LH

main48720-16050iEL45199009-199208

main48720-16060iEL45..SR199009-199409

48740ROD ASSY, REAR LATERAL CONTROL

main48740-10020iEL41,43,NL40199009-199409

main48740-16041iEL45199009-199208

main48740-16070iEL45199208-199409

48745BUSH, LATERAL CONTROL ROD

main90385-18015iEL41,43,NL40199009-199409

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12070iEL4#,NL40199009-199409

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iEL4#,NL40199009-199409

48750SUPPORT ASSY, REAR SUSPENSION

main48750-16051iEL45199009-199409

main48750-16060iEL41,NL40199009-199106

sub48750-16080

main48750-16070iEL43199009-199106

sub48750-16080

main48750-16080iEL41,43,NL40199106-199409

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08206iEL4#,NL40199009-199409

48802LINK SUB-ASSY, STABILIZER

main48802-16010iEL45199009-199409

sub48802-52040

main48803-16010iEL45199009-199409

sub48803-52010

48802DBUSH, STABILIZER LINK

main90385-11014iEL45199009-199409

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iEL45199009-199409

48805BAR SUB-ASSY, REAR STABILIZER

main48805-10010iEL45..SR199009-199208

sub48805-52011

main48805-16131iEL45..WIN199009-199208

main48805-16150iEL45..WIN199208-199409

main48805-16160iEL45..SR199208-199409

48815RBUSH, STABILIZER(FOR REAR)

main48815-14050iEL45..WIN199208-199409

main48815-20020iEL45..SR199009-199208

sub48815-20021

main48815-22010iEL45..WIN199009-199208

main48815-30070iEL45..SR199208-199409

48817UBOLT(FOR REAR STABILIZER)

main91111-41040iEL45199208-199409

sub91111-51040

main91112-41040iEL45199009-199208

sub91111-41040

48832BBRACKET, REAR STABILIZER BAR, NO.2

main48832-22020iEL45199009-199409

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-16030iEL45199009-199409

sub48832-52020

sub91645-80822

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-16010iEL45199009-199409

sub48833-52010

sub91645-80822

9011908622

main90119-08622

9011910596

main90119-10596

9017910076

main90179-10076

9017912025

main90179-12025

9161161020

main91611-61020

91611A0818

main91611-A0818

9418401000

main94184-01000

9418461200

main94184-61200

9461211800

main94612-11800

36 parts on this diagram · 2 diagrams in section
