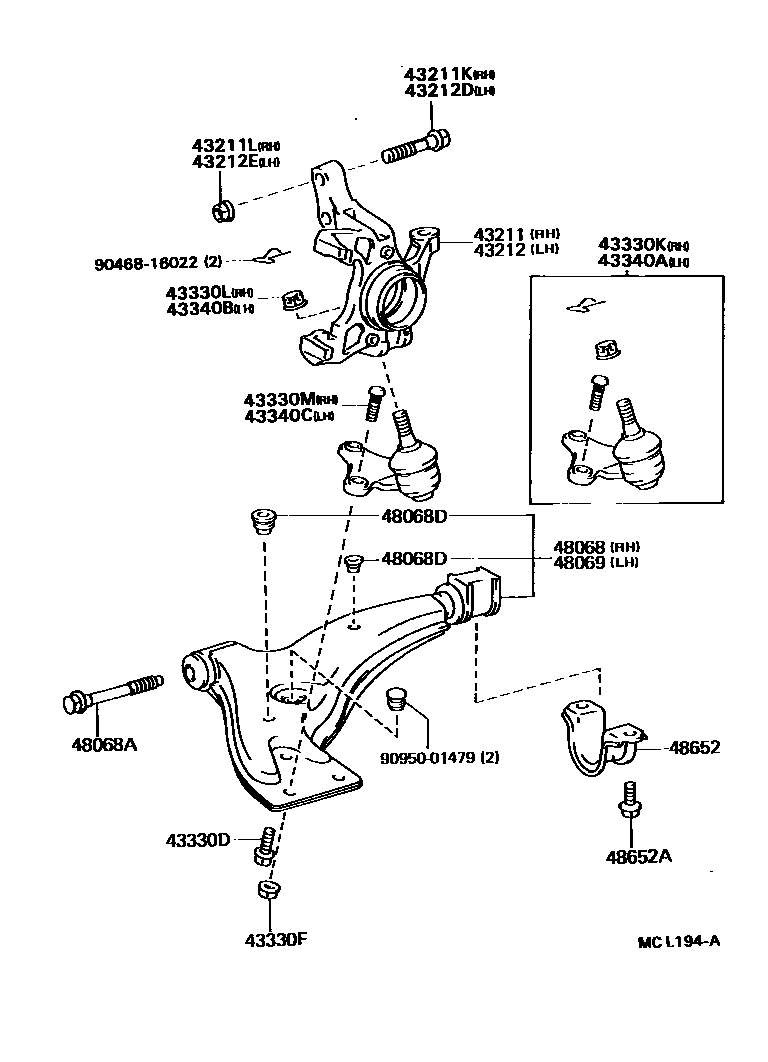

FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
sub90114-10032
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
sub90114-10032
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)
H=11,OD=16
OD=16,H=11
H=13,OD=21
OD=21,H=13
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48652BRACKET, FRONT LOWER ARM
9046816022
main90468-16022
9095001479
main90950-01479
22 parts on this diagram · 2 diagrams in section
